BIGTREETECH TMC5160T Plus Stepper Motor Driver SPI Mode Without Case

BIGTREETECH TMC5160T Plus Stepper Motor Driver SPI Mode Without Case

• BIGTREETECH TMC5160T Plus Stepper Motor Driver is a high-performance stepper motor control module designed for 3D printers, CNC machines, robotics, and other precision motion-control applications.
• It supports SPI communication, allowing compatible controller boards and firmware to configure and monitor the driver directly.
• Its advanced Trinamic motion-control technology helps provide smooth motor movement, reduced operating noise, improved torque control, and reliable high-speed performance.
• The TMC5160T without case version is suitable for users who need a compact driver module for direct installation on a compatible control board.

Specifications

• Motor Voltage (VM): Up to 60V
• Max RMS Current: 10.6A
• Peak Current: Up to 15A
• Microstepping: Up to 1/256 with excellent smoothness
• Interfaces: SPI (primary), STEP/DIR, UART, Standalone
• Features: StealthChop2, SpreadCycle, StallGuard, CoolStep, DCStep, SixPoint ramp
• On-board 24V always-on fan interface for active cooling
• Reserved encoder interface for advanced positioning
• ESD protection on power and logic

 Features

• High Power & Voltage — Handles large steppers (NEMA 17 to 86) and high-voltage setups (24V–48V+) with minimal heat generation
• Silent & Precise — StealthChop2 for nearly silent operation and advanced resonance damping to prevent lost steps
• Excellent Heat Dissipation — Includes integrated heatsink with fan mounting holes for sustained high-current performance
• SPI Mode — Full configuration and tuning via SPI for maximum control in Marlin or Klipper firmware
• Robust Design — 8 high-power 100V/93A MOSFETs ensure reliability under heavy load

Package Includes

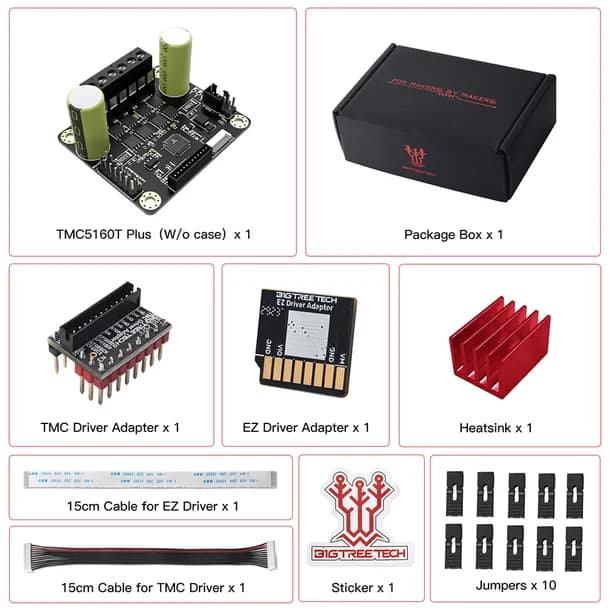

• 1 piece of BIGTREETECH TMC5160T plus stepper Motor Driver Without Case
