TMC5160T Pro driver V1.0 Bigtreetech stepper motor driver for 3D printer

TMC5160T Pro driver V1.0 Bigtreetech stepper motor driver for 3D printer

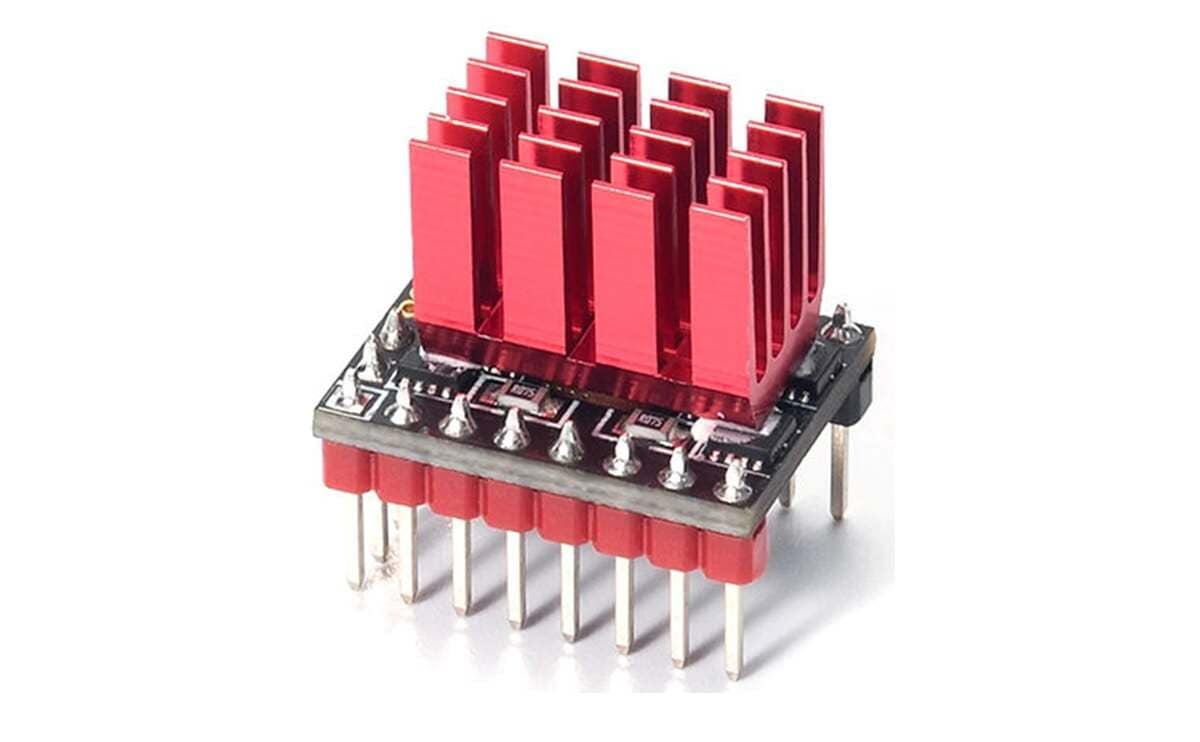

• BIGTREETECH TMC5160T Pro Driver V1.0 is a high-performance stepper motor driver made for 3D printers needing smoother motion and stronger control.
• Supports a wide range of stepper motors and delivers precise positioning with up to 256 microsteps for improved print detail and surface finish.
• Runs on 5V–36V, making it compatible with many common motion-control power setups.
• Includes stealthChop2 for quieter operation and reduced motor noise—ideal for home printers and print farms in India.
• Supports stallGuard4 for sensorless homing and stall detection (board/firmware setup dependent) to simplify wiring and improve safety.
• Uses an SPI interface for advanced tuning, configuration, and reliable integration into compatible control boards.

Specifications

• Product: BIGTREETECH TMC5160T Pro Driver V1.0
• Compatibility: 3D printers (also suitable for CNC/robotics)
• Operating Voltage: 5V–36V
• Peak Current: Up to 4A
• Microstepping: Up to 256 microsteps per full step
• Noise Control: stealthChop2
• Sensorless Features: stallGuard4
• Interface: SPI

Dimensions

• Compact small form factor for easy installation in tight printer electronics bays (exact size not specified)

Applications

• 3D printer axis upgrades needing quieter motion and higher precision
• CNC machines and robotics requiring accurate stepper control
• Builds where sensorless homing via stallGuard4 is preferred
• Performance-focused printers needing SPI-based tuning and control

Usage

• Install the TMC5160T Pro on a compatible board and connect motor/power per manufacturer guidance.
• Configure driver settings via SPI in firmware for current, microstepping, and motion behaviour.
• Enable stallGuard4 features for sensorless homing only if your board/firmware supports it and your mechanics are tuned

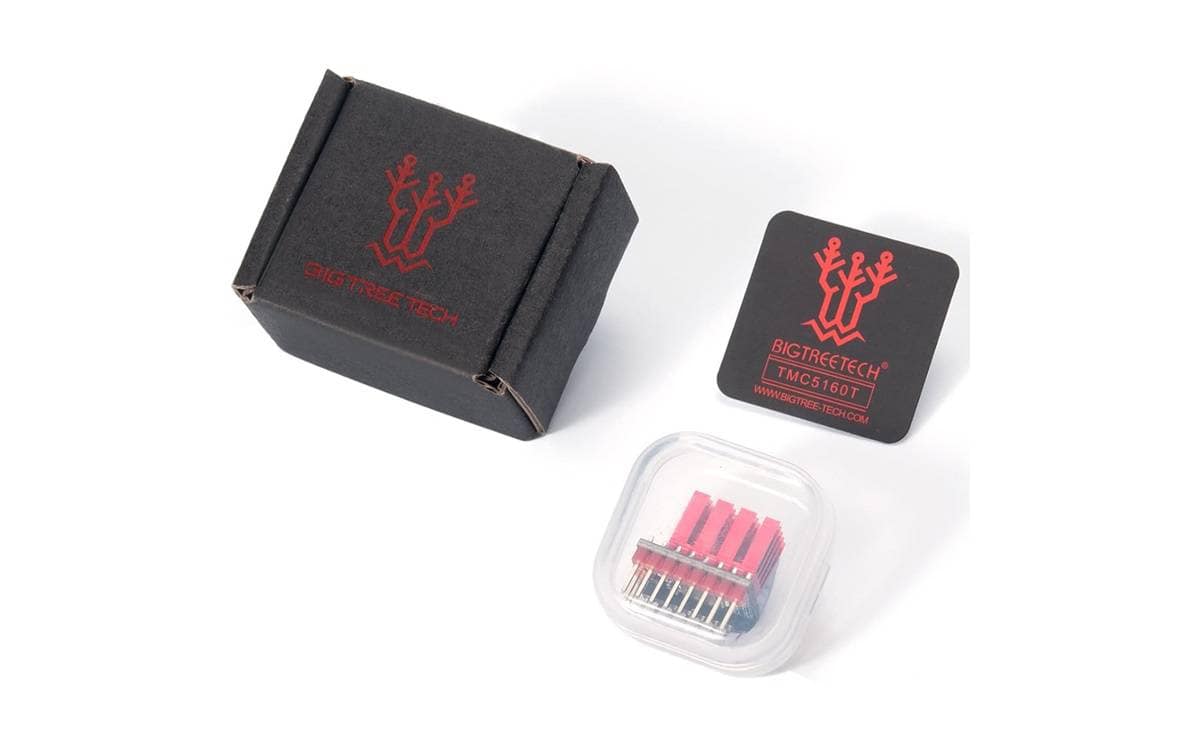

Package Include

• 1 piece of TMC5160T pro.
