Flexible coupling 6.35x8mm flexible shaft coupling for motor 3D printer

Flexible coupling 6.35x8mm flexible shaft coupling for motor 3D printer

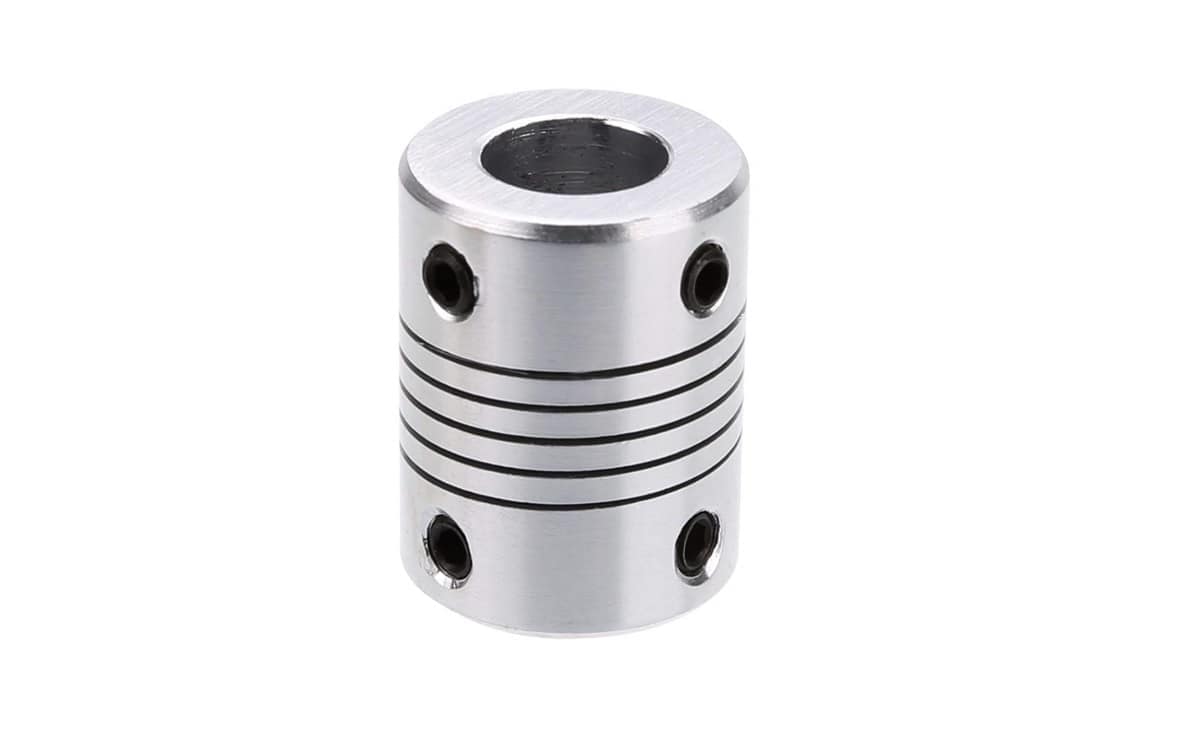

The Flexible Motor Coupling 6.35x8mm is a high-quality flexible shaft coupling designed to transmit torque between two shafts while accommodating angular misalignment, parallel offset, and axial motion.

• Perfect for 3D printers, CNC machines, robotics, and automation systems, this coupling ensures smooth and reliable torque transfer even with slight shaft misalignments.
• Motor shaft flexible connector coupling is machined from a single piece of aluminum, with material removed along a spiral path to create a curved, helical beam.
• The Helical aluminum flexible coupling allows the coupling to flex while maintaining single-piece integrity, providing vibration damping and noise reduction in mechanical systems.
• Flexible couplings 6.35x8mm can accommodate misalignment up to 1.5° and some parallel offset, making it ideal for connecting shafts of different diameters.
• Available in multiple sizes including 5x8mm, 5x10mm, 8x8mm, and 8x10mm, it provides versatility for a wide range of mechanical and motion control applications.

Specification

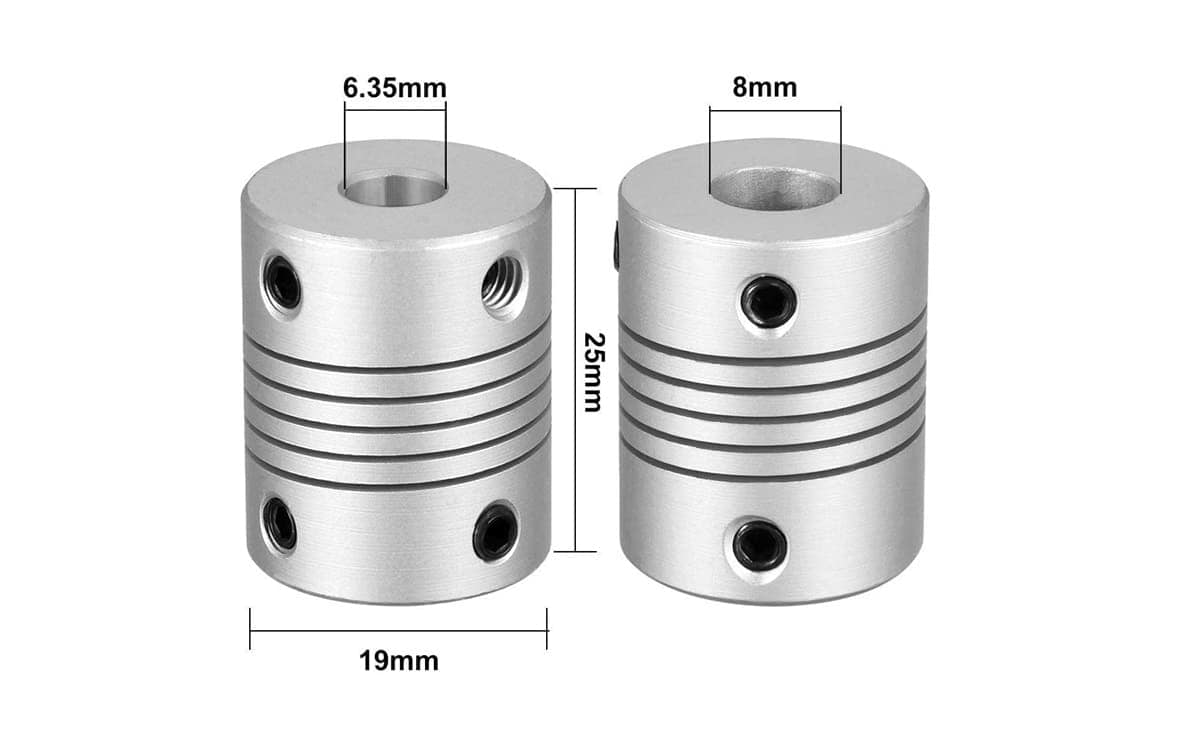

• Inner Diameter (ID): 6.35mm on one side, 8mm on the other side
• Material: Aluminum
• Design Features: Set screws, clamps, or other mechanisms for secure shaft attachment
• Flexibility: Accommodates misalignment while transmitting torque smoothly

Features

• 6.35mm × 8mm Bore Size: Designed to connect a 6.35mm (1/4 inch) shaft to an 8mm shaft or lead screw.
• Helical Spiral-Cut Design: Flexible beam construction provides controlled flexibility while transmitting rotational torque.
• Misalignment Compensation: Helps accommodate minor angular, parallel, and axial misalignment between connected shafts.
• Aluminum Construction: Lightweight and durable construction suitable for precision motion systems.

Advantages

• Connects Different Shaft Sizes: Conveniently connects a 6.35mm motor shaft with an 8mm driven shaft without requiring additional adapters.
• Reduces Mechanical Stress: Flexible design helps reduce unwanted loads on motor bearings and connected components caused by minor misalignment.
• Improves Motion Stability: Helps provide smoother and more consistent shaft rotation in precision-motion applications.

Application

• Motion Control Systems: Connects stepper motors to driven components in CNC machines, 3D printers, and robotics for precise motion and misalignment compensation.
• Stepper and Servo Motor Applications: Efficiently transmits torque between motors and mechanical components.
• Power Transmission Systems: Links shafts in machinery while compensating for misalignment.
• Automation Systems: Ideal for conveyors, assembly lines, and other automated motion systems.
• Mechanical Assemblies: Connects shafts of different diameters in industrial and hobbyist machinery.
• Industrial Machinery: Reduces vibration and stress on connected components.
• Pump and Compressor Systems: Connects motors to pumps or compressors, accommodating misalignment and reducing wear.

Package Include

• 1 piece of Shaft Coupler 6.35mm to 8mm (as per order)
