Flexible coupling 5x10mm flexible shaft coupling for motor

Flexible Coupling 5x10mm Flexible Shaft Coupling for Motor

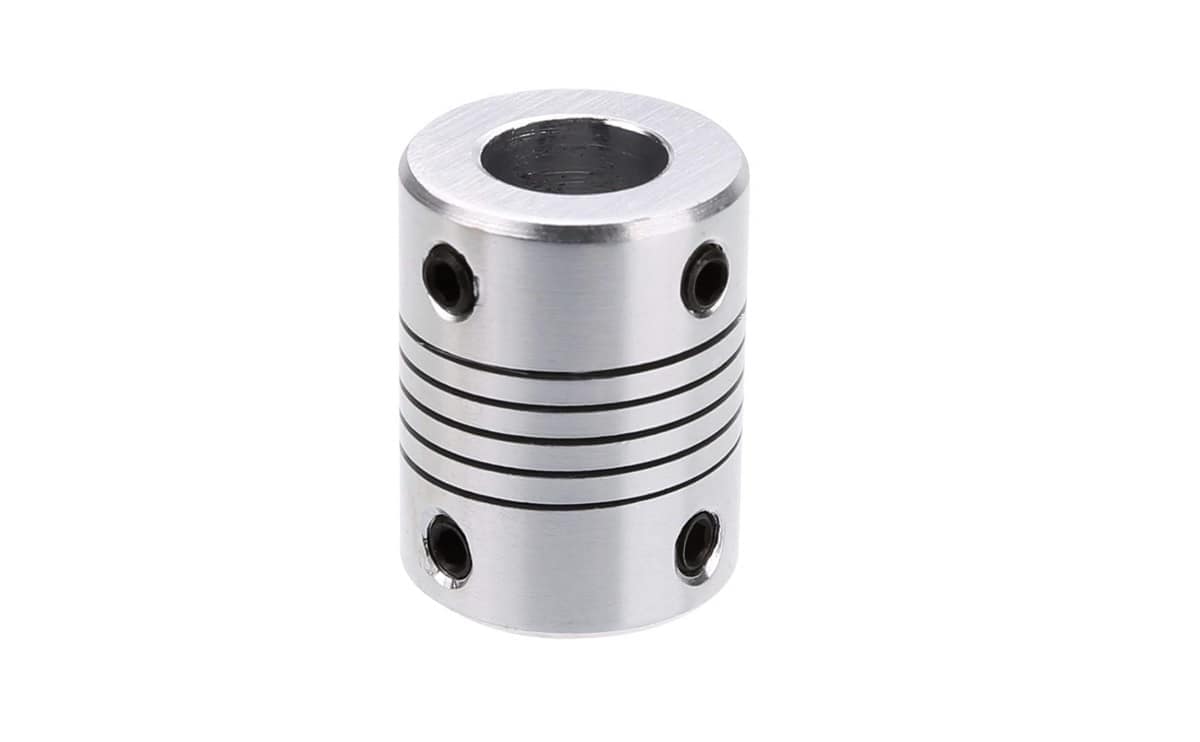

The Flexible Motor Coupling 5x10mm is a high-quality flexible shaft coupling designed to transmit torque between two shafts while accommodating angular misalignment, parallel offset, and axial motion.

• Perfect for 3D printers, CNC machines, robotics, and automation systems, this coupling ensures precise motion and reliable torque transfer.
• Made from durable aluminum, Aluminum flexible coupling is machined from a single piece of material.
• Material removal along a spiral path creates a curved, helical beam, giving the coupling its flexibility while maintaining structural integrity.
• Stepper motor flexible connector is ideal for connecting shafts of slightly different diameters (5mm to 10mm) and compensates for misalignment up to 1.5°, reducing vibration and noise in mechanical systems.

Specifications

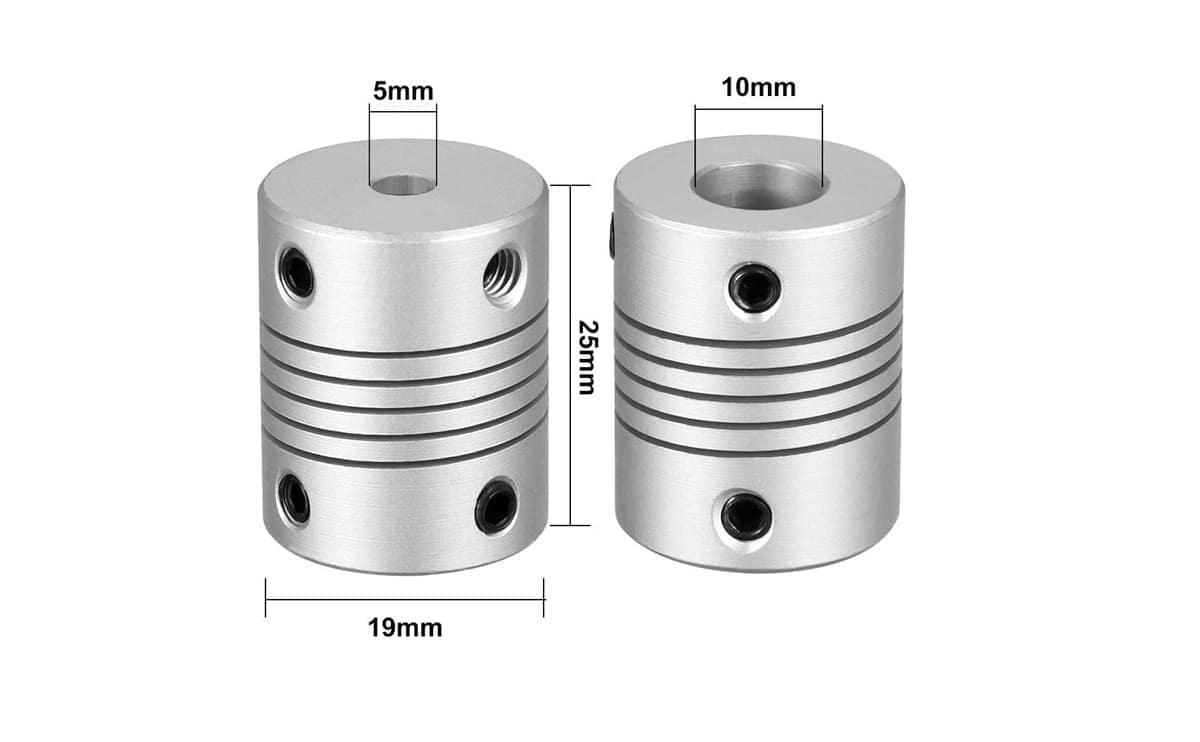

• Inner Diameter (ID): 5mm on one side, 10mm on the other side
• Material: Aluminum (flexible coupling)
• Design: Set screws, clamps, or other mechanisms for securing the coupling to shafts
• Flexibility: Accommodates misalignment while transmitting torque smoothly

Features

• High-Quality Aluminum Construction: Lightweight yet durable, providing long-lasting performance in motor and automation systems.
• Flexible Design: Helical spiral design accommodates angular, parallel, and axial misalignments for smooth torque transmission.
• Wide Compatibility: Connects stepper motors, servo motors, and other rotating shafts in CNC, 3D printers, and robotics.
• Vibration Damping & Noise Reduction: Reduces stress on connected components while improving operational smoothness.
• Precision Machined: Single-piece construction allows for optional features like set screws or clamps for secure installation.
• Multiple Sizes Available: 5x8mm, 6.35x8mm, 8x8mm, 8x10mm, in addition to 5x10mm for diverse applications.

Advantages

• Smooth Torque Transmission: Efficiently transfers rotational power between 5mm and 10mm shafts while maintaining smooth movement.
• Compensates for Minor Misalignment: Helical construction helps accommodate small angular, parallel, and axial misalignments.
• Reduces Vibration: Flexible spiral-cut structure helps absorb vibration generated by motors and rotating components.

Applications

• Motion Control Systems: CNC machines, 3D printers, and robotics for precise motion and misalignment compensation.
• Stepper and Servo Motors: Connects motors to driven components for efficient torque transfer.
• Power Transmission Systems: Ideal for connecting shafts in machinery and equipment.
• Automation Systems: Conveyors, assembly lines, and other automated systems.
• Mechanical Assemblies: Connects shafts of different diameters in small or large machinery.

Package Includes

• 1 × Flexible Shaft Connector 5x10mm (as per order)
