Flexible coupling 5x8mm flexible shaft coupling for motor

Flexible Coupling 5x8mm Flexible Shaft Coupling for Motor

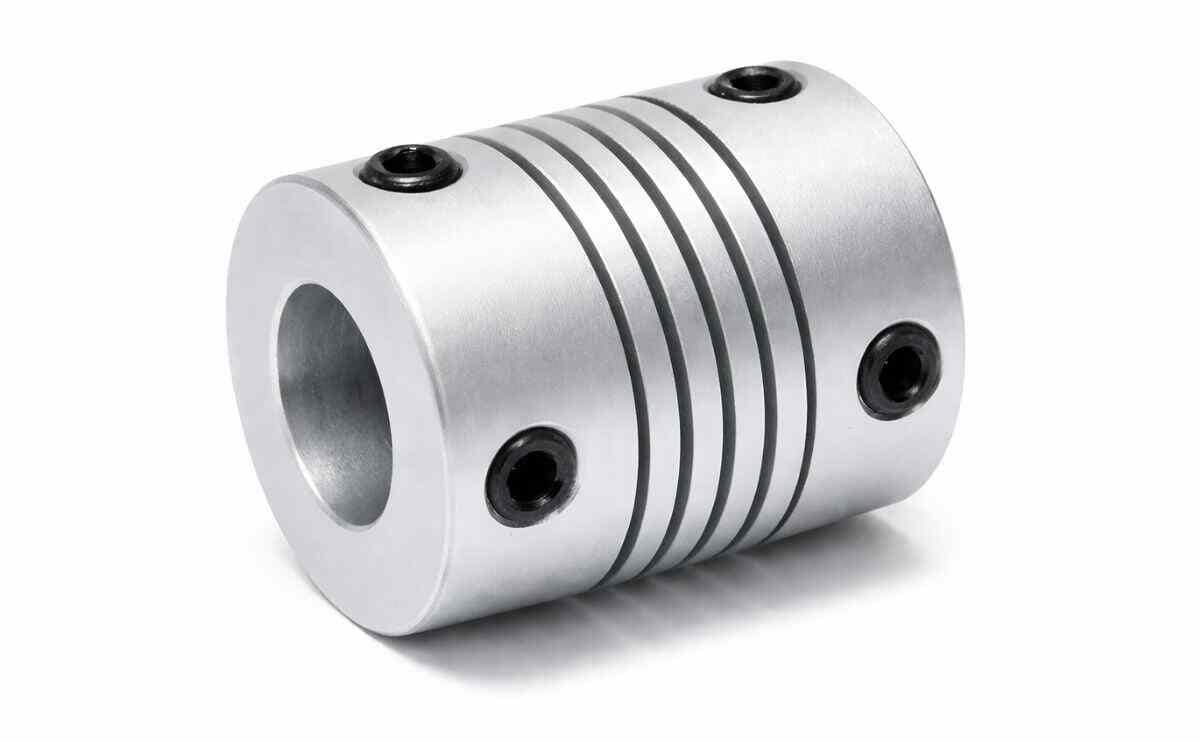

The Flexible Motor Coupling 5x8mm is a precision flexible shaft coupling designed to transmit torque between two shafts while accommodating angular misalignment, parallel offset, and axial motion.

• Perfect for 3D printers, CNC machines, robotics, and automation systems, this coupling ensures smooth and reliable torque transmission even under slight misalignments.
• The 5x8mm flexible coupling is machined from a single piece of aluminum, with material removed along a spiral path to create a curved helical beam. This design allows the coupling to remain flexible while maintaining structural integrity, making it ideal for applications where vibration damping and noise reduction are important.
• CNC motor coupling can accommodate misalignment up to 1.5° and some parallel offset, making it suitable for connecting shafts of slightly different diameters.
• Available in multiple sizes including 5x10mm, 6.35x8mm, 8x8mm, and 8x10mm, it offers versatility for a wide range of mechanical setups.

Specifications

• Inner Diameter (ID): 5mm on one side, 8mm on the other side
• Material: Aluminum (flexible coupling)
• Design Features: Set screws, clamps, or other securing mechanisms for shaft attachment
• Flexibility: Precision flexible coupling Accommodates misalignment while transmitting torque smoothly

Features

• 5mm to 8mm shaft connection – Designed to securely connect a 5mm motor shaft to an 8mm driven shaft.
• Flexible helical design – Spiral-cut construction provides flexibility while maintaining reliable torque transmission.
• Misalignment compensation – Helps accommodate slight angular, parallel, and axial misalignment between connected shafts.
• Aluminum construction – Lightweight and durable for reliable use in motion-control systems.

Advantages

• Improves motion accuracy by compensating for minor shaft misalignment.
• Reduces vibration and noise for smoother machine operation.
• Protects motor and shaft components by reducing stress caused by imperfect alignment.
• Provides reliable torque transfer between 5mm and 8mm shafts.
• Easy to install and replace using the integrated set-screw mounting system.

Applications

• Motion Control Systems: Used in CNC machines, 3D printers, and robotics for precise motion and misalignment compensation.
• Stepper and Servo Motor Applications: Connects motors to driven components for efficient torque transmission.
• Power Transmission Systems: Links shafts in machinery and equipment while compensating for misalignments.
• Automation Systems: Ideal for conveyors, assembly lines, and other automated systems for smooth motion.
• Mechanical Assemblies: Connects shafts of different diameters in industrial and hobbyist machinery.
• Industrial Machinery: Reduces vibration and stress on connected components.
• Pump and Compressor Systems: Connects motors to pumps or compressors while accommodating misalignments.

Package Includes

• 1 piece of Flexible Coupling 5x8mm
