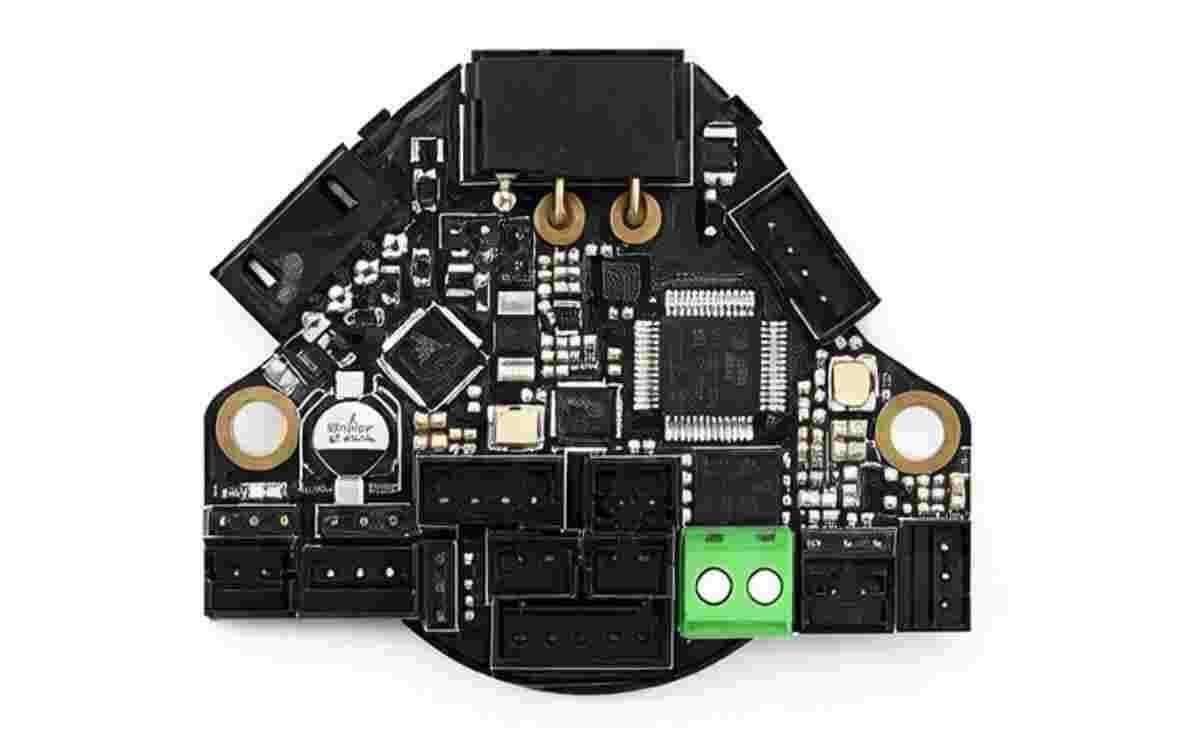

• BTT EBB36 Gen 2 by BIGTREETECH is a next-generation CAN Toolhead Control Board designed for Klipper CAN-based 3D printer setups.
• Mounted directly on the toolhead, it helps reduce cable clutter, improve signal stability, and increase overall reliability—especially on high-speed printers where long cable bundles can introduce noise, drag, and maintenance issues.
• A major benefit of using a toolhead-mounted CAN bus toolhead board is simpler wiring. Instead of routing many separate wires from the toolhead back to the mainboard, the EBB36 Gen 2 enables a cleaner build with fewer cables moving across the gantry.
• This improves long-term reliability, makes troubleshooting easier, and can reduce the chance of intermittent heater, thermistor, or fan issues caused by cable fatigue.

Specifications

• Brand: BIGTREETECH
• Product type: CAN Toolhead Control Board
• Communication: CAN Bus
• Firmware support: Klipper
• Mounting location: toolhead
• PCB version: Gen 2
• Application: 3D printers
• MCU: STM36G0 series
• Extruder support: small / lightweight extruders
• Board size: compact, ultra-lightweight
• Ideal for: StealthBurner, Orbiter, lightweight toolheads

Applications

• High-speed CoreXY 3D printers
• Klipper CAN toolhead builds
• Toolhead wiring simplification and cleaner cable routing
• Custom DIY and professional 3D printer projects

Features

• High-speed CAN communication for stable toolhead data transfer
• Cleaner builds with reduced wiring and better reliability

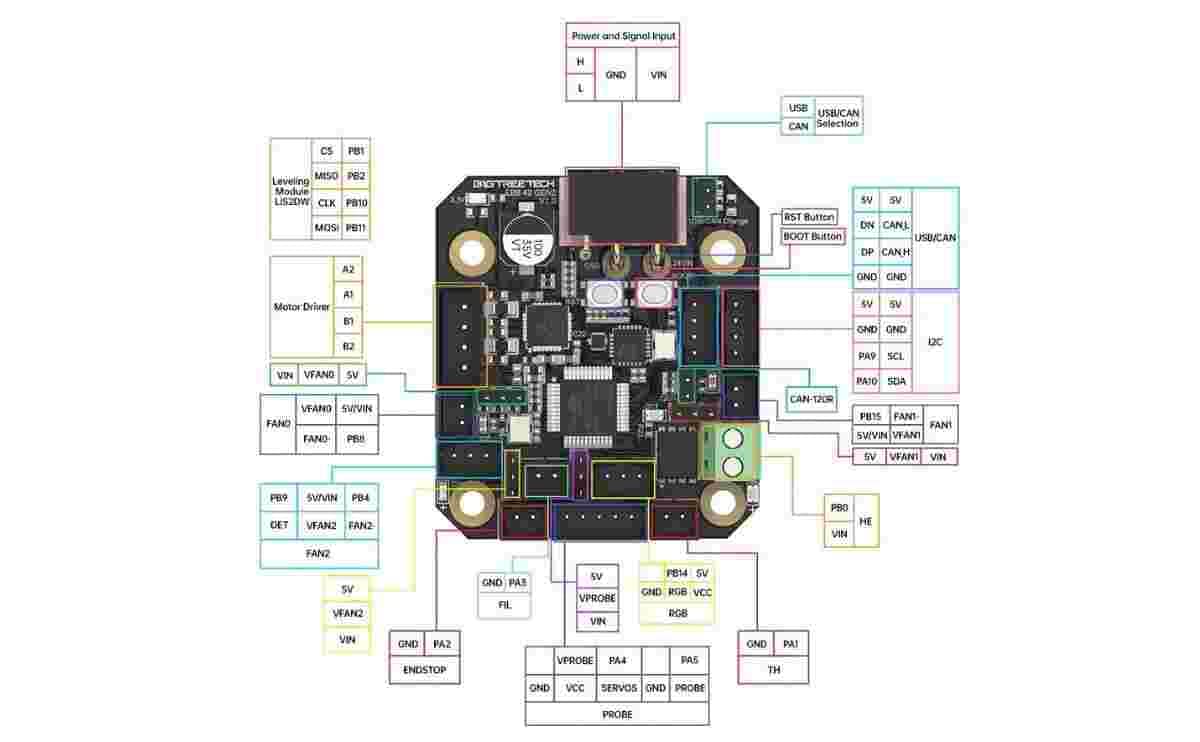

• Supports heater, fans, thermistors, extruder, probe, LEDs, and sensors
• Improved layout/component quality vs Gen 1 for durability and thermal stability
• Compact design suited to fast motion systems

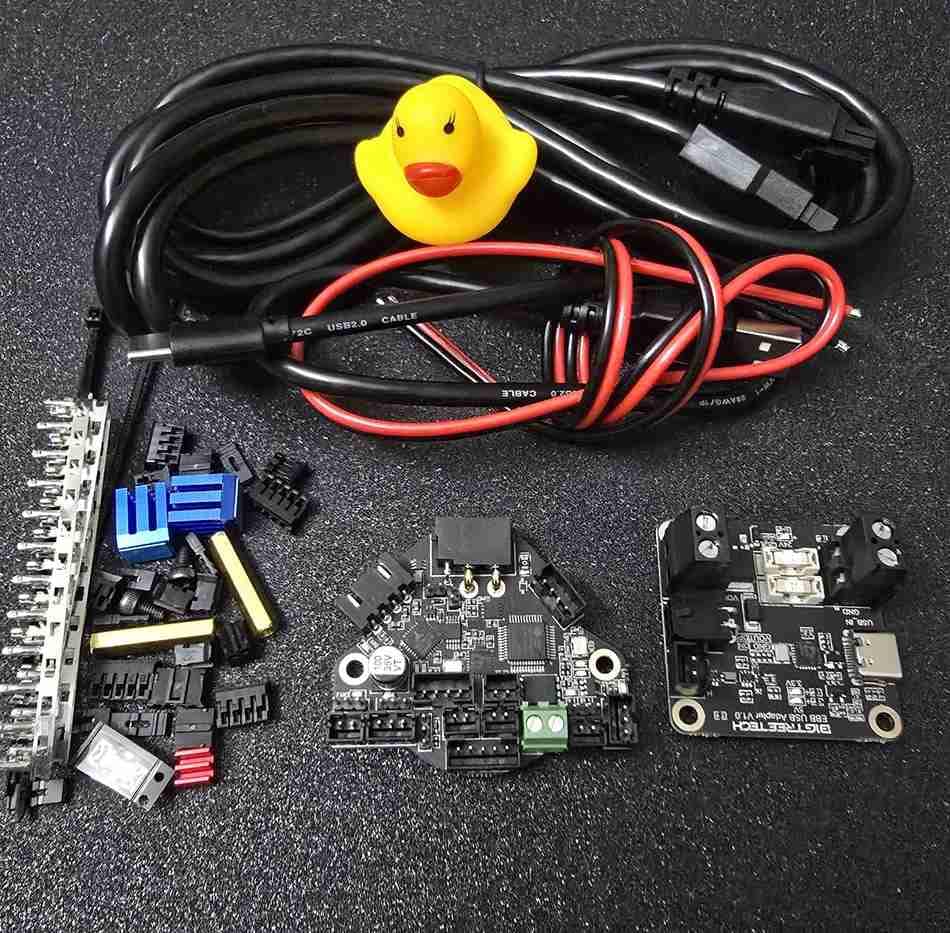

Package Includes

• 1 piece of BTT EBB36  Gen 2 Board
