STM8S103F3P6 System Board STM8S STM8 Development Board Minimum Core Board

STM8S103F3P6 System Board STM8S STM8 Development Board Minimum core Board

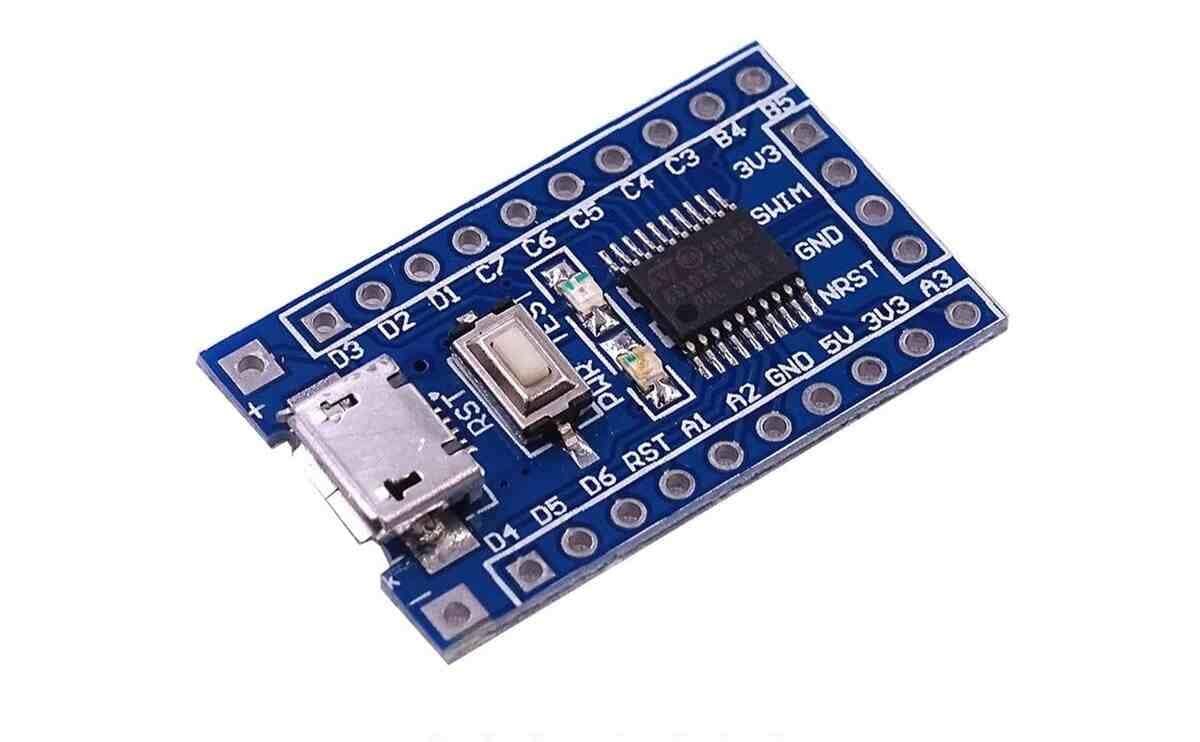

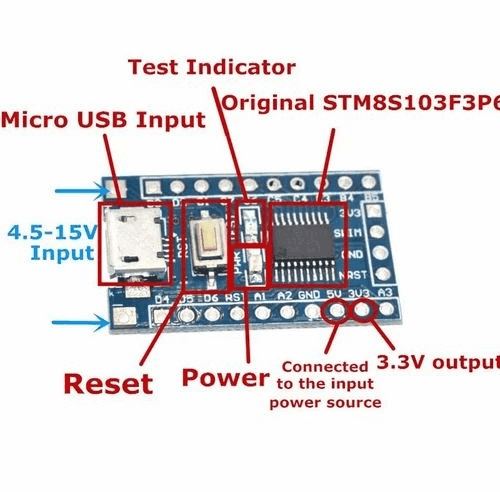

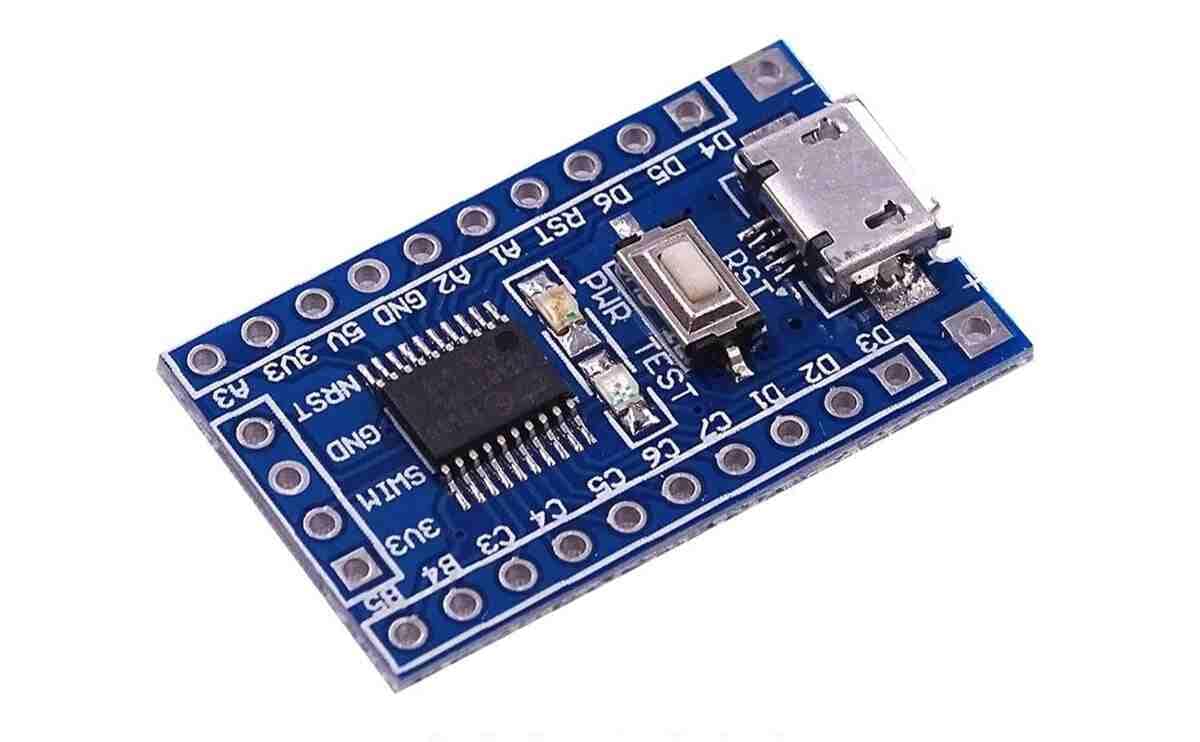

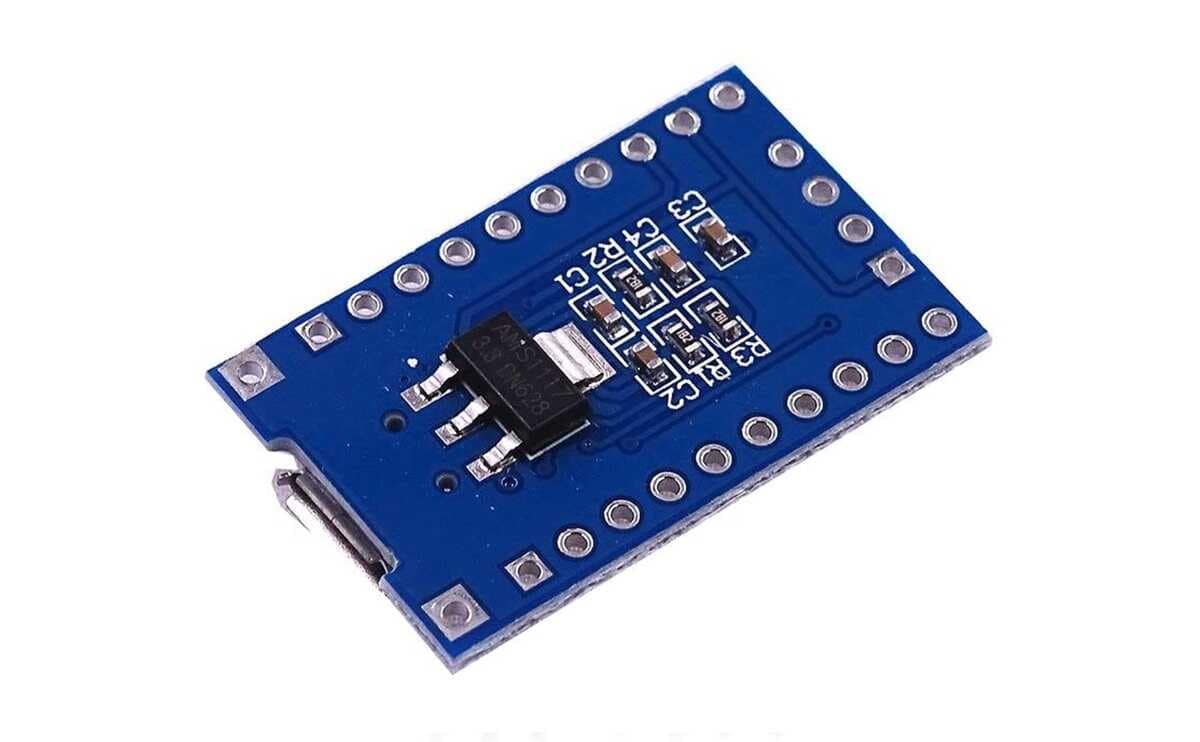

The STM8S103F3P6 system board is a compact and efficient development platform designed for embedded system projects.

• STM8S103F3P6 system board is a compact STM8 development board designed for cost-effective embedded prototyping and minimum-system designs.
• Built around the STM8S103F3P6 microcontroller, it provides a practical platform for students, hobbyists, and engineers in India who need a simple but capable 8-bit controller board for real-world electronics projects.
• At the core is an 8-bit STM8 MCU operating up to 16MHz, with 8KB Flash and 1KB RAM—enough for many control applications such as sensor reading, basic automation logic, timing functions, and small communication tasks.
• The board is built around a 28‑pin MCU offering up to 16 I/O ports, making it suitable for connecting switches, relays, LEDs, small motors (via drivers), and common sensor modules.

Specifications

• MCU: STM8S103F3P6
• CPU: 8-bit core
• Frequency: 16MHz
• Flash: 8KB
• RAM: 1KB
• Package: 28-pin, up to 16 I/O
• ADC: 10-bit, up to 5 channels
• Timers: 2× 16-bit, 1× 8-bit
• Interfaces: USART, I2C, SPI
• Operating voltage: 2.95V–5.5V

Applications

• Industrial control and basic automation
• Home automation projects
• Automotive electronics prototypes
• Consumer electronics and embedded devices
• Education, learning, and rapid prototyping

Features

• Compact minimum-system STM8 development platform
• Useful peripheral set: ADC, timers, and serial interfaces
• Wide voltage range (2.95V–5.5V) for flexible power options
• Cost-effective board for hobby and professional prototyping
• Easy integration into embedded systems and custom builds

Package Includes

• 1 piece of STM8S103F3P6 system board.
