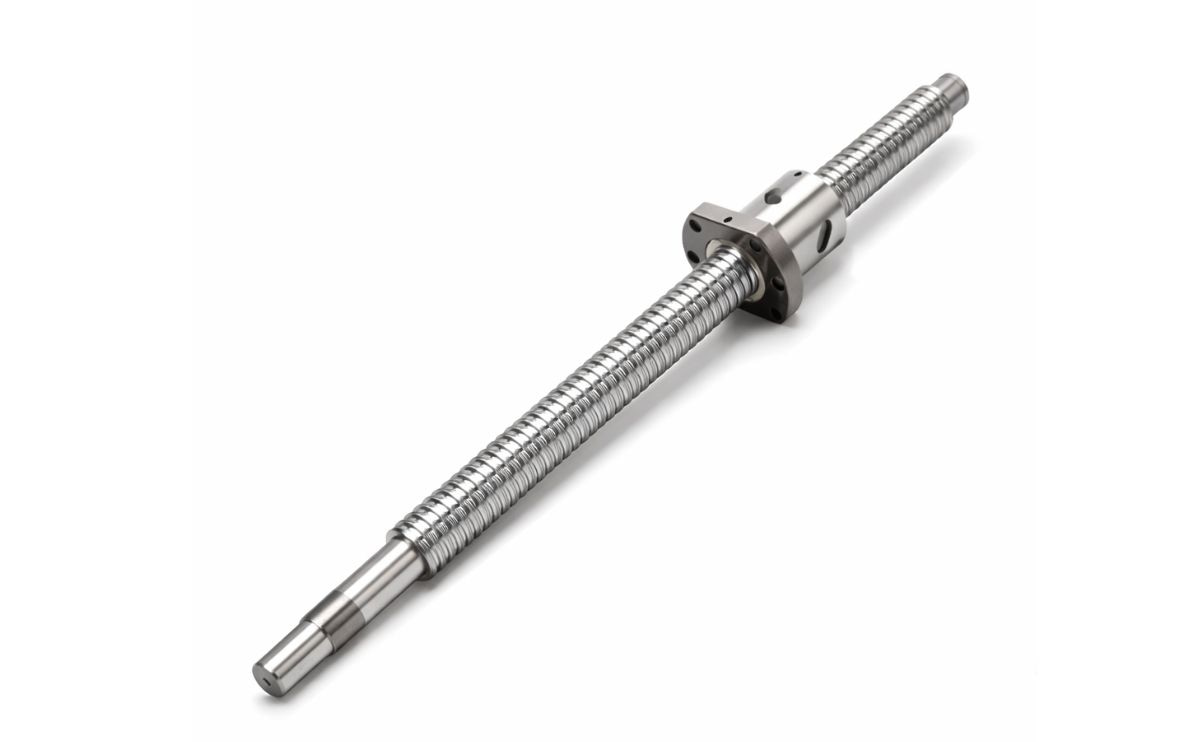

SFU1605 Ball Screw length 1200mm 16mm Dia 5mm Lead with Ball Screw Nut

SFU1605 Ball Screw length 1200mm 16mm Dia 5mm Lead with Ball Screw Nut

SFU1605 Ball Screw length 1200mm 16mm Dia 5mm Lead with Ball Screw Nut

• SFU1605 ball screw 1200mm, a precision linear drive designed to convert motor rotation into smooth, accurate linear travel.
• The 16mm diameter helps reduce deflection over longer spans, while the 5mm lead delivers a balanced mix of speed, resolution, and torque requirements for CNC and automation applications.
• This set includes a matched ball screw nut to support cleaner direction changes and improved positioning stability.
• Compared to traditional lead screws, the recirculating ball mechanism delivers higher mechanical efficiency with lower friction, supporting smoother motion and reduced wear.
• For best results in high-duty-cycle systems, keep alignment correct and apply periodic grease or light oil lubrication.

Specifications

• Model: SFU1605 Ball screw
• Type: Anti-backlash ball screw with ball screw nut
• Screw length: 1200mm
• Screw diameter: 16mm
• Lead: 5mm (travel per revolution)
• Nut: Included (matched to screw)
• Motion: Recirculating ball linear drive
• Lubrication: Grease or light oil (recommended)
• Accuracy grade / preload: Varies by supplier (confirm if needed)

Applications

• CNC routers, CNC milling/engraving machines (X/Y/Z axis)
• Gantry systems and robotics linear modules
• Linear actuators and automation slides
• Wood/metal/plastic cutting machines requiring repeatable motion
• Lead screw upgrade projects for smoother, more efficient travel

Features

• Anti-backlash performance: improved reversals and positioning stability
• 16mm diameter for long axes: helps reduce bending/deflection on 1200mm strokes
• 5mm lead (1605): balanced travel speed and control
• High efficiency linear motion: low friction vs. lead screws
• Matched ball nut included: consistent fit and reliable travel
• Ideal for CNC upgrades: works well in ballscrew + linear rail builds

Package Includes

• 1 piece of SFU1605 Ball Screw length 1200mm
