Rigid Coupling 5x8mm Aluminum Alloy Shaft Coupler And Flexible Coupling for 3D Printers

Rigid Coupling 5x8mm Aluminum Alloy Shaft Coupler And Flexible Coupling for 3D Printers

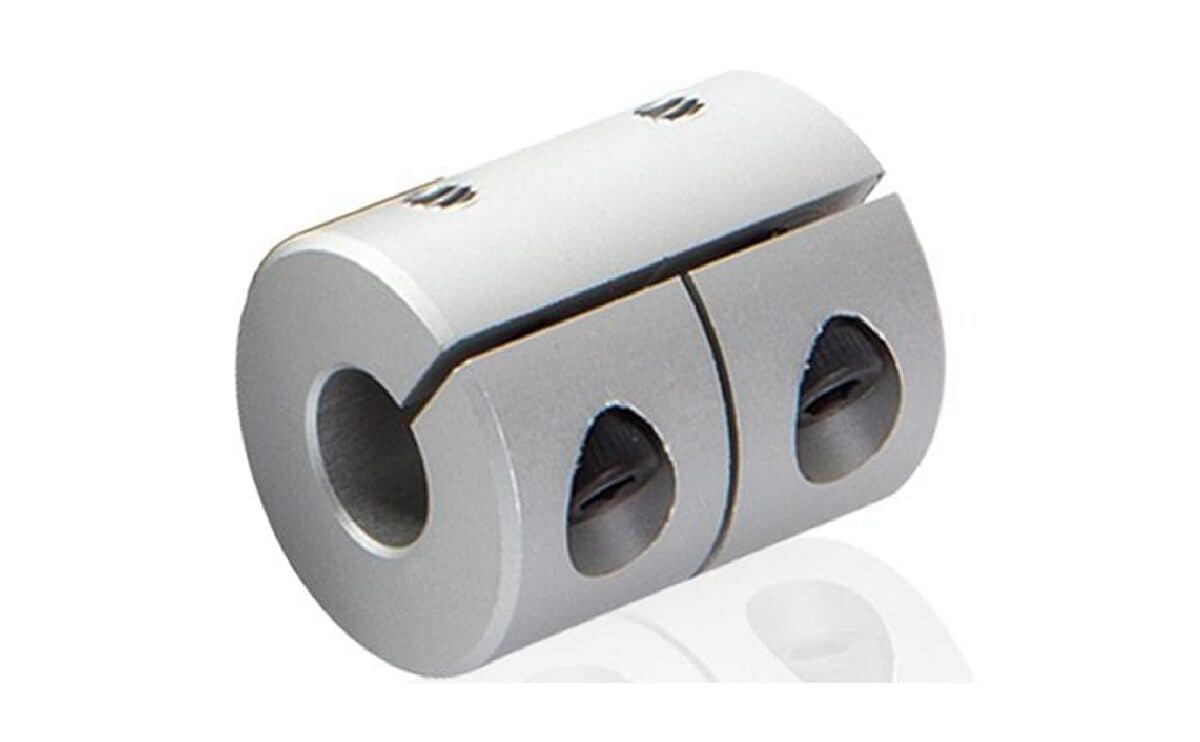

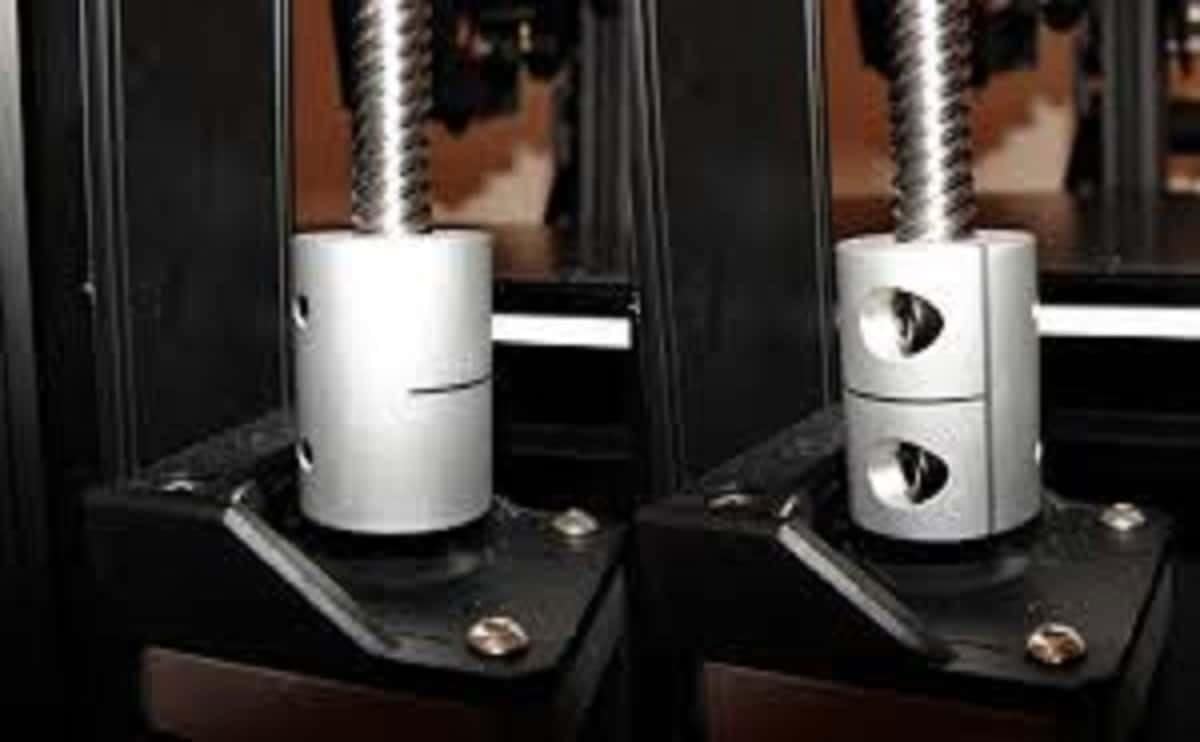

The Rigid Coupling 5x8mm Aluminum Alloy Shaft Coupler is a precision flexible coupling designed to connect a stepper motor shaft to a lead screw, ensuring efficient power transmission while maintaining high precision and stability.

• Made from high-quality aluminum alloy, this 5x8mm coupling features a bore of 5mm to 8mm, an outer diameter of 19mm, and a length of 25mm.
• Its set screw type design allows for secure attachment to motor shafts, making it ideal for 3D printer Machine, CNC machines, automation systems, and DIY projects.
• This coupling is specifically designed to transfer torque between two shafts, maintaining precise alignment while accommodating minor misalignments.
• Its lightweight yet durable construction ensures long-lasting performance in both professional and hobbyist applications.

Specifications

• Material: Aluminum Alloy
• Bore Diameter: 5mm on one side, 8mm on the other side
• Outer Diameter: 19mm
• Length: 25mm
• Type of Coupling: Set screw coupling

Features

• 5mm × 8mm bore size – Designed to connect a 5mm motor shaft with an 8mm lead screw or shaft.
• Rigid coupling design – Provides a firm shaft-to-shaft connection with minimal rotational play.
• High-quality aluminum alloy – Lightweight, durable, and suitable for repeated mechanical operation.
• Secure set-screw locking – Helps firmly hold both shafts and prevents unwanted slipping during operation.
• Efficient torque transmission – Transfers rotational power directly from the motor to the driven shaft.
• Compact 19mm × 25mm construction – Suitable for machines where installation space is limited.

Advantages

• Improves positioning accuracy by providing a rigid connection between the motor and lead screw.
• Reduces rotational backlash compared with highly flexible coupling designs.
• Provides direct torque transfer for responsive and consistent shaft movement.
• Maintains stable shaft connection during repeated start-stop and direction-changing movements.
• Lightweight construction adds minimal rotating mass to the motion system.

Applications

• Motor-Driven Equipment: Connects motors to pumps, fans, compressors, and other mechanical components.
• Precision Machinery: Lead screw coupling Ideal for equipment requiring accurate shaft alignment.
• Small Power Transmission Systems: Perfect for compact systems where space and weight are critical.
• Automation Systems: Connects motors to conveyors, robotic arms, and automated machinery.
• DIY Projects: Used in hobbyist machines and custom mechanical assemblies.
• Medical Devices: Ensures precise motion in medical equipment.
• Laboratory Instruments: Supports accurate alignment and smooth rotation in lab devices.
• Electronic Devices: Incorporated into electronics involving rotating shafts or components.

Package Includes

• 1 Piece Shaft Coupling 5x8mm
