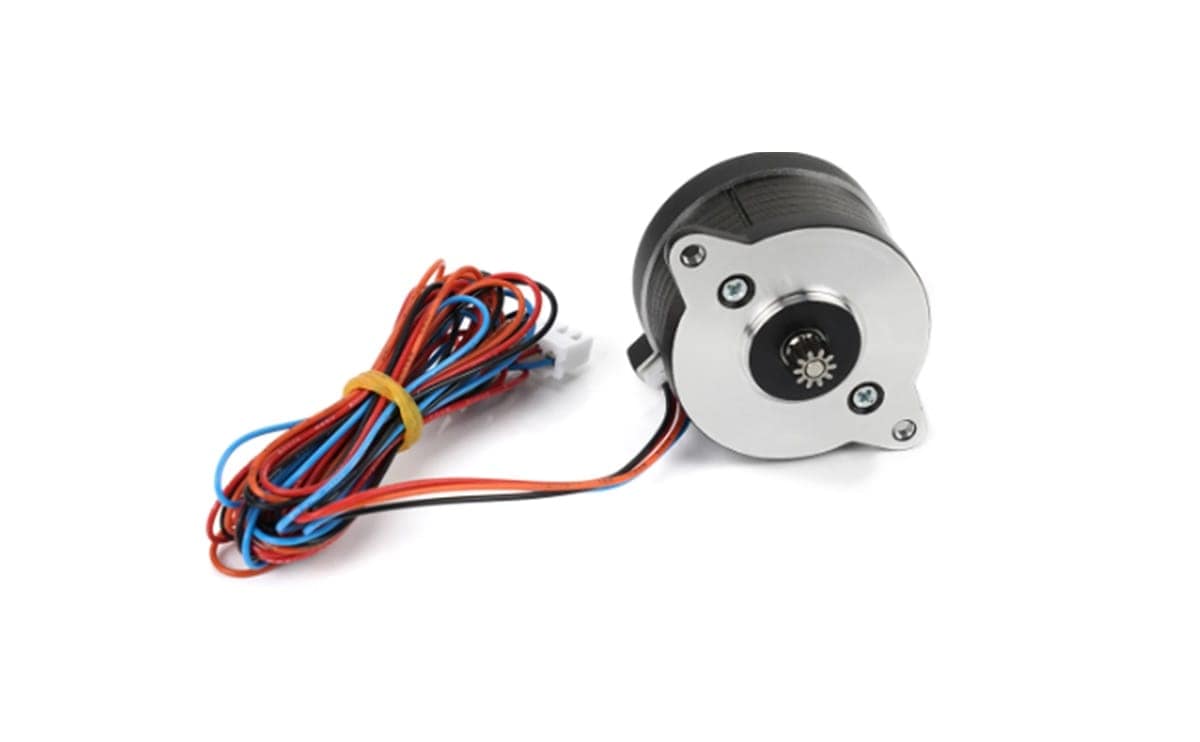

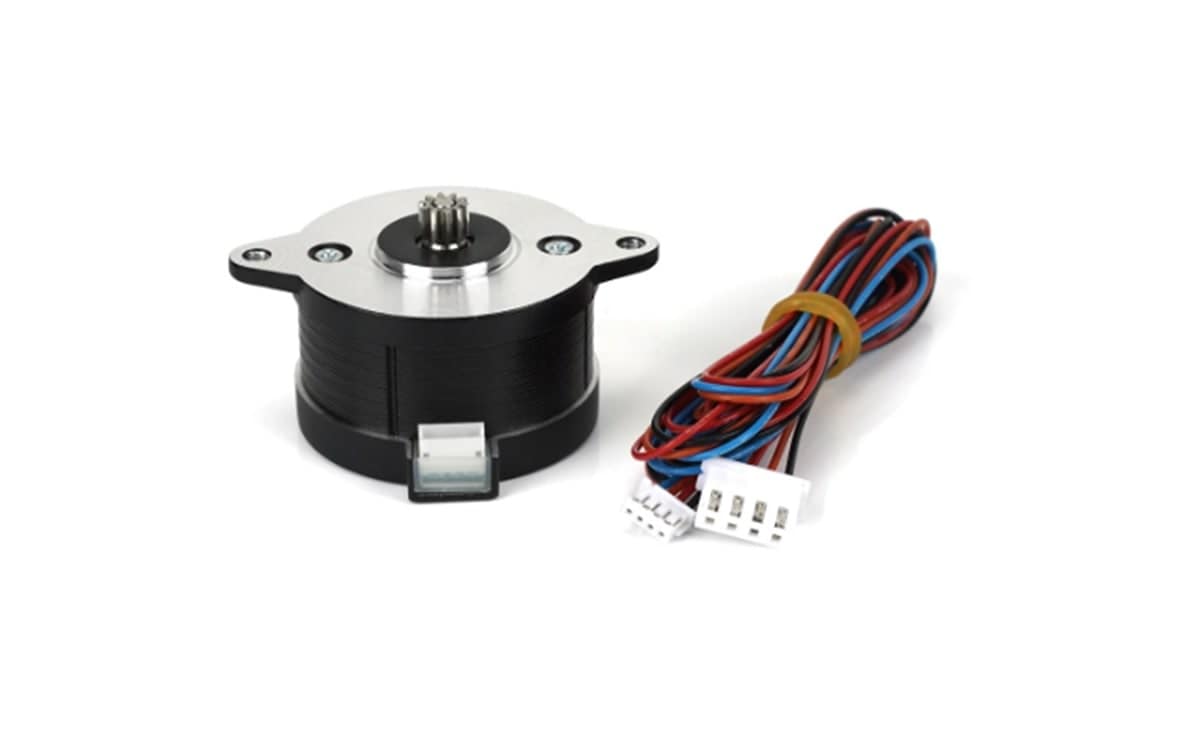

Nema14 Stepper Motor 36MM Round Motor Nema 14 Motor with 1m Wire For 3D Printer
Availability:
In stock
Nema14 Stepper Motor, a 36mm round NEMA 14 with 1m wire, designed for 3D printers and precision motion projects. It delivers precise 1.8° steps, operates on DC 12–24V, and draws up to 0.5A. With two-phase windings and copper construction, it provides reliable torque (~120 mN·m) and smooth, accurate positioning. The package includes a single motor and is compatible with robotics, CNC, and automation applications where compact, precise motion is required.
- 36mm round Nema 14 stepper motor with 1m wire
- 2-phase design with 1.8° step angle for precise positioning
- DC 12–24V operation; rated current 0.5A
- Torque ~120 mN·m; phase resistance ~3Ω; inductance ~10 µH
- Copper windings for durability; robust construction
- Suitable for 3D printers, robotics, CNC, and automation
₹849.00
In stock
Tell us what you need and we’ll help you source it.
Round Motor Nema 14 Motor with 1m Wire For 3D Printer
Nema14 Stepper Motor 36MM Round Motor Nema 14 Motor with 1m Wire For 3D Printer
- Featuring a 1m wire, this Nema14 motor provides convenient connectivity options, allowing for easy integration into your 3D printer setup.
- The wire length ensures flexibility in positioning the motor without compromising on the overall functionality of your printer.
- With its precise and reliable performance, the Nema14 Stepper Motor delivers exceptional accuracy in controlling the movement of your 3D printer. This motor is known for its ability to provide precise positioning and smooth operation, resulting in high-quality prints with intricate details.
- Not limited to just 3D printers, the Nema14 Stepper Motor finds applications in various other fields as well.
- Stepper motor and driver can be used in robotics, CNC machines, automation equipment, and more, where precise control of motion is required.
- Manufactured with high-quality materials and built to last, this Nema14 motor ensures durability and longevity, providing you with a reliable and efficient solution for your 3D printing needs.
Specifications
- Material:Â Copper
- Module m:Â 0.5
- Pressure angle a: 20°
- Number of teeth Z:Â 10
- Gear outer diameter Do:Â 06-0.1
- Number of phases:Â 2
- Step angle: 1.8 deg
- voltage: DC 12V to 24V
- Rated current:Â DC 0.5A
- Keep rotating torque: ≥120mN.m
- Phase resistance: 13±10% ohm (20C)
- Phase inductance: 10 ± 20% Tsui (1KHz)
- Turning (look with the object):Â A-AB-B-C
- Moment of inertia:Â 15 g.cm
Package includes
- 1 x Nema 14 stepper motor 36MM Round Motor with 1m wire.
| Weight | 100 g |
|---|---|
| HSN code | 8477 |
| Step Angle | 1.8 degrees |
| Shaft Diameter | 2.5mm (integrated 10 tooth gear) |
| Rated Current | 1A |
| Temperature Rating | 180C |
5 reviews for Nema14 Stepper Motor 36MM Round Motor Nema 14 Motor with 1m Wire For 3D Printer
1-5 of 5 reviews
Add a review
You must be logged in to post a review
Log In
Q & A
Ask a question
can i use the same stepper drivers used for nema 17? like A4988 or DRV8825?
It won't work
(0)
(1)
Add an answer
Will this fit in Creality K1 as a extruder motor
No, it won't fit. Dimensions will differ
(1)
(0)
Add an answer
What is the stall torque of this motor? How many teeth does the driver gear has? And what is the model number of the motor?
Step Angle: 1.8 degrees
Shaft Diameter: 2.5mm (integrated 10 tooth gear)
Rated Current: 1A
Temperature Rating: 180C
(0)
(0)
Add an answer
Little bit more heavy than usual
Looks great in shape when it arrived. works well too
