MKS SERVO42C nema17 closed loop stepper motor driver CNC 3d printer parts

MKS SERVO42C nema17 closed loop stepper motor driver CNC 3d printer parts

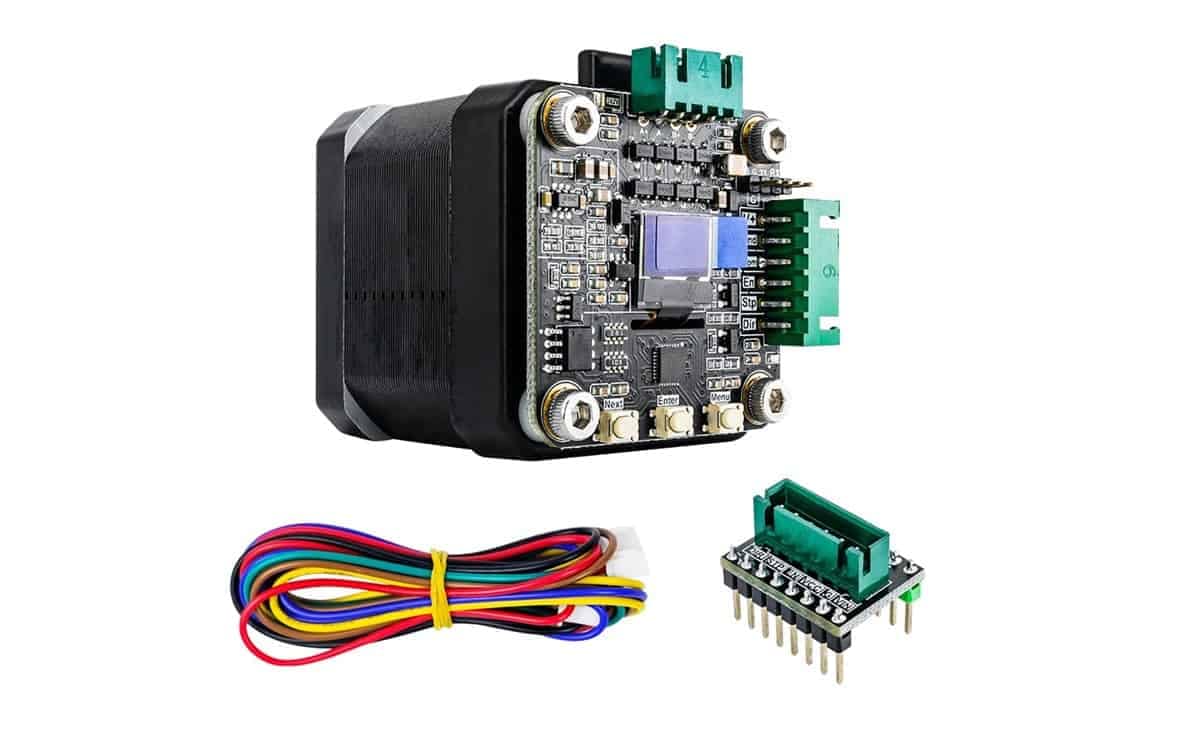

• MKS SERVO42C NEMA17 closed loop stepper motor driver is a high-performance driver module designed to deliver precise motion control with real-time position feedback.
• Unlike open-loop stepper drivers that can lose steps under load, the closed loop stepper driver continuously monitors motor position using an encoder and corrects movement—helping prevent missed steps in 3D printers, CNC machines, and robotics projects in India.
• The main benefit is precise position control. The MKS SERVO42C uses a closed-loop control system that adjusts current based on feedback, improving accuracy during fast moves, heavy gantry loads, or demanding CNC cuts.
• This can improve reliability in long jobs where an unnoticed missed step would otherwise ruin a print or machining operation.

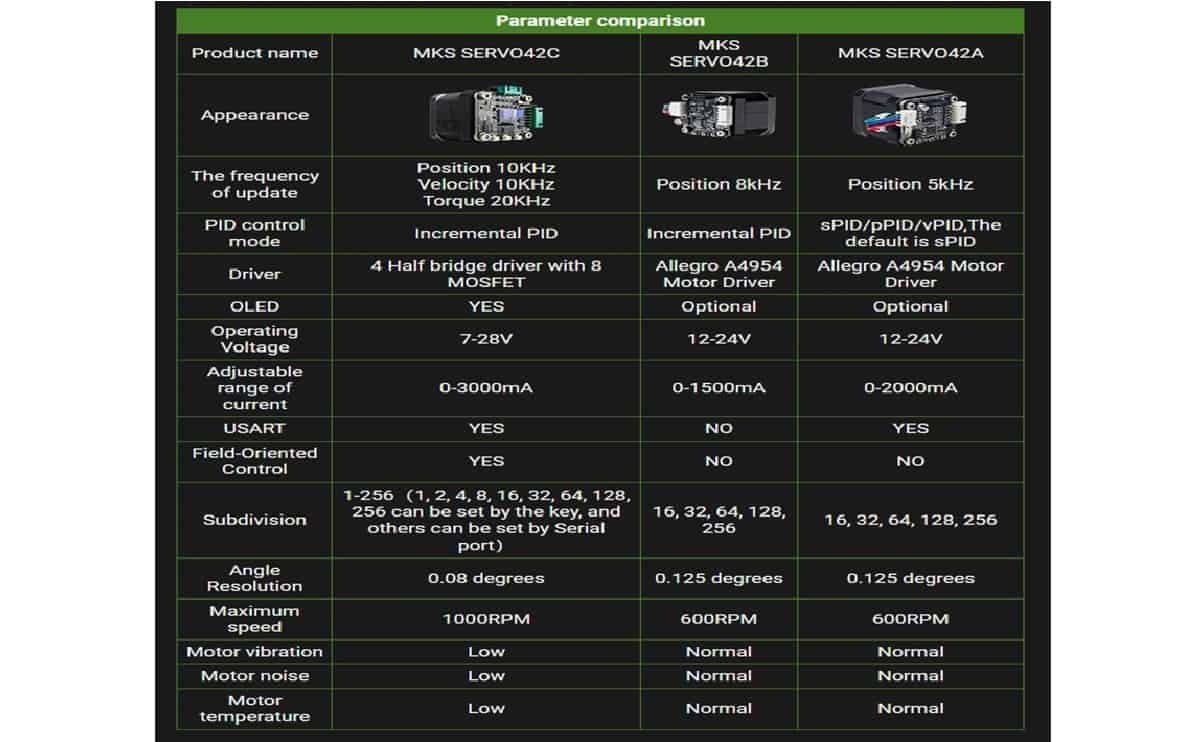

Specifications

• Product: MKS SERVO42C closed loop stepper driver
• Motor type: NEMA17 (motor not included)
• Operating voltage: 7–28V DC
• Current: adjustable 0–3000mA; max output current 2.8A (as stated)
• Control signals: DIR + STP
• Microstepping/subdivision: 1–256, supports odd subdivisions (as stated)
• Motor angles supported: 0.9° / 1.8°
• Control: PID + Field-Oriented Control (as stated)
• Driver stage: 4 half-bridge, 8 MOSFET (as stated)
• Display: onboard OLED
• Encoder: magnetic encoder with high angle resolution (as stated)
• Max speed: 1000 RPM (as stated)

Applications

• 3D printers needing reduced missed steps and higher motion reliability
• CNC routers/engravers needing precise positioning under load
• Robotics and automation motion systems
• Upgrades for NEMA17-based motion stages

Features

• Closed loop feedback to help prevent missed steps
• High current capability for stronger torque performance
• Smooth, low-noise operation via advanced control features (as stated)
• Onboard OLED for quick configuration
• Wide microstepping support up to 256
• Software-based tuning for performance optimization

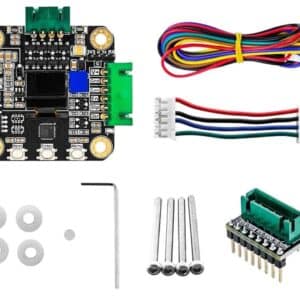

Packages Include

1 piece of MKS servo42c driver

Note

• Motor won’t come along with it
