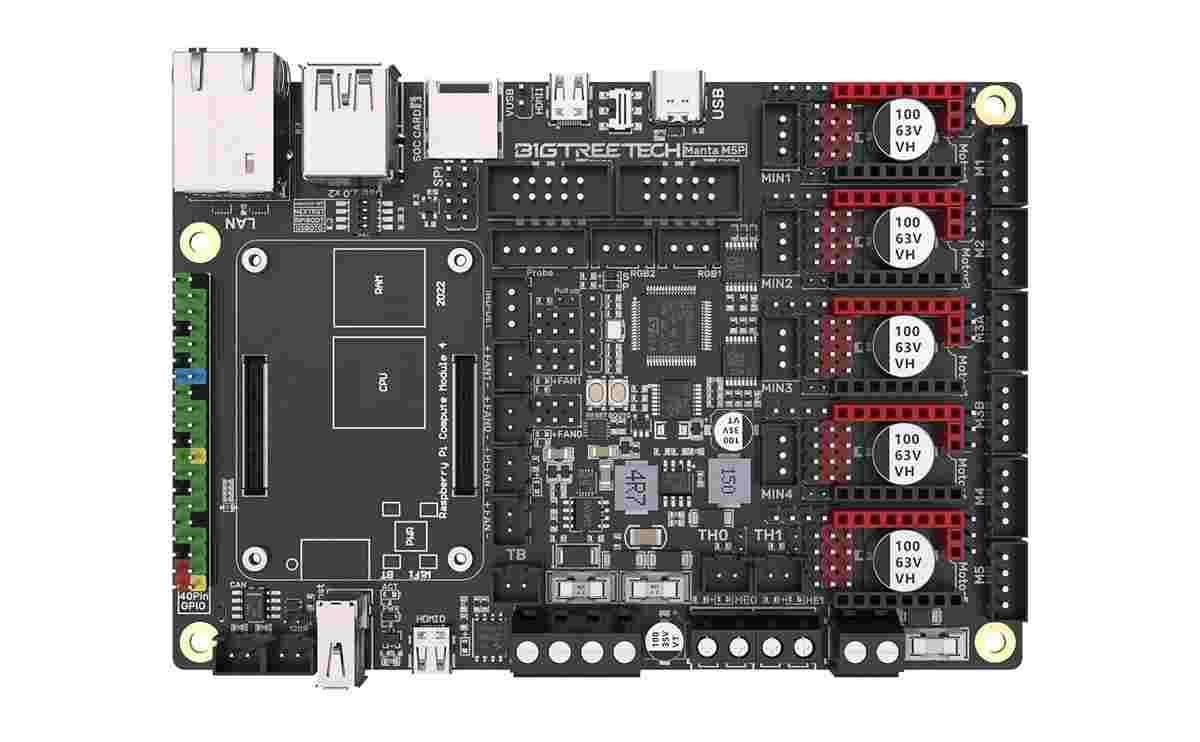

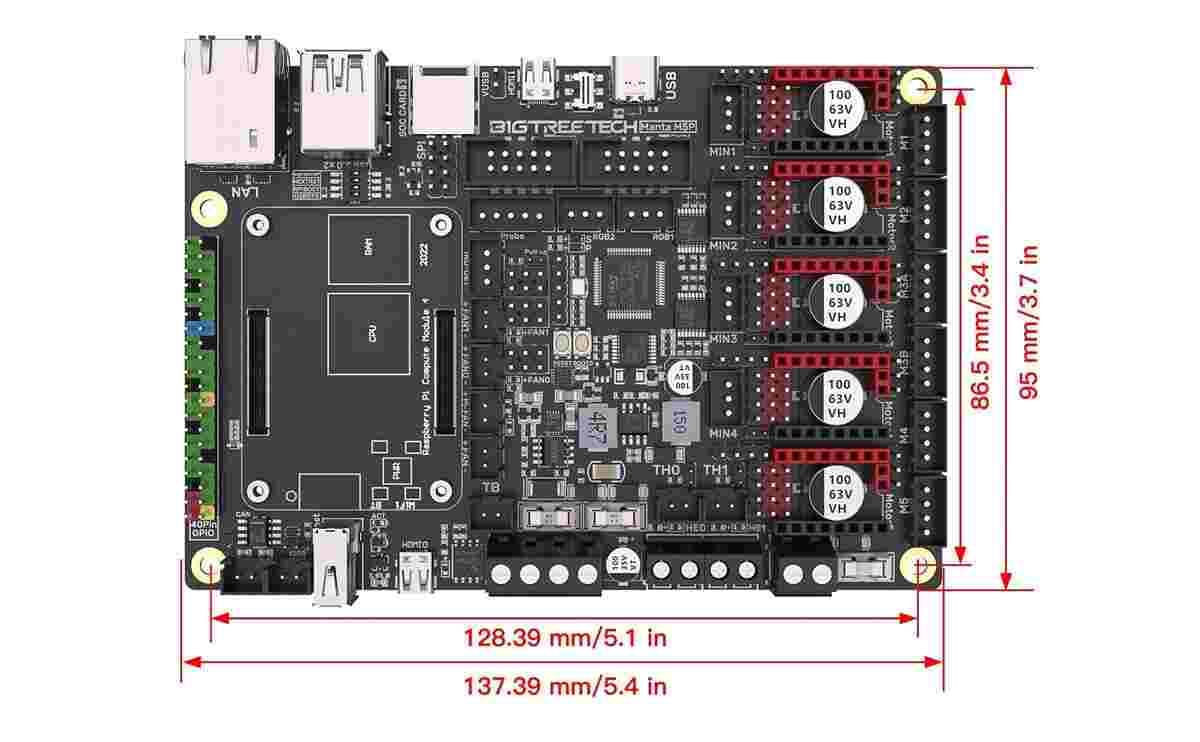

Manta M5P Bigtreetech Control Board for 3D Printer

Manta M5P Bigtreetech Control Board for 3D Printer

Manta M5P Bigtreetech Control Board for 3D Printer

• BIGTREETECH Manta M4P V2.1 is a modern 3D printer control board built for Klipper setups—especially when paired with the CB1 module for an integrated Linux host + MCU stack.
• For builders in India upgrading or assembling CoreXY, Cartesian, or Delta printers, the board focuses on clean wiring, strong expansion, and practical automation features that improve day-to-day printing.
• A major advantage of Manta M4P V2.1 is its broad connectivity: DSI display and CSI camera ports support monitoring, timelapses, and screen-based control projects, while additional display options (SPI/HDMI/LCD) keep it flexible across different UI preferences.
• For print reliability, filament runout detection (Fil-DET) can pause a job when filament ends, and pairing an auto shutdown module can power down the printer after a print completes—reducing wasted power and idle heat.
• Motion and driver flexibility are strong points. Manta M4P V2.1 supports many popular stepper drivers (including TMC5160 and TMC2209) and multiple driver modes (SPI, UART, STEP/DIR) so you can match your build goals—quiet operation, high torque, or simple step/dir compatibility.

Specifications

• MCU: ARM Cortex‑M0+ (STM32G0 series) 64MHz
• Input voltage: DC12V or DC24V (motherboard / bed)
• Logic: 3.3V
• Heater outputs: HB (10A, peak 12A), HE (5.5A, peak 6A)
• Fans: 3× CNC fan (24/5V selectable), 1× SoC fan, max 1A
• Total current limit: < 20A (heaters + drivers + fans)

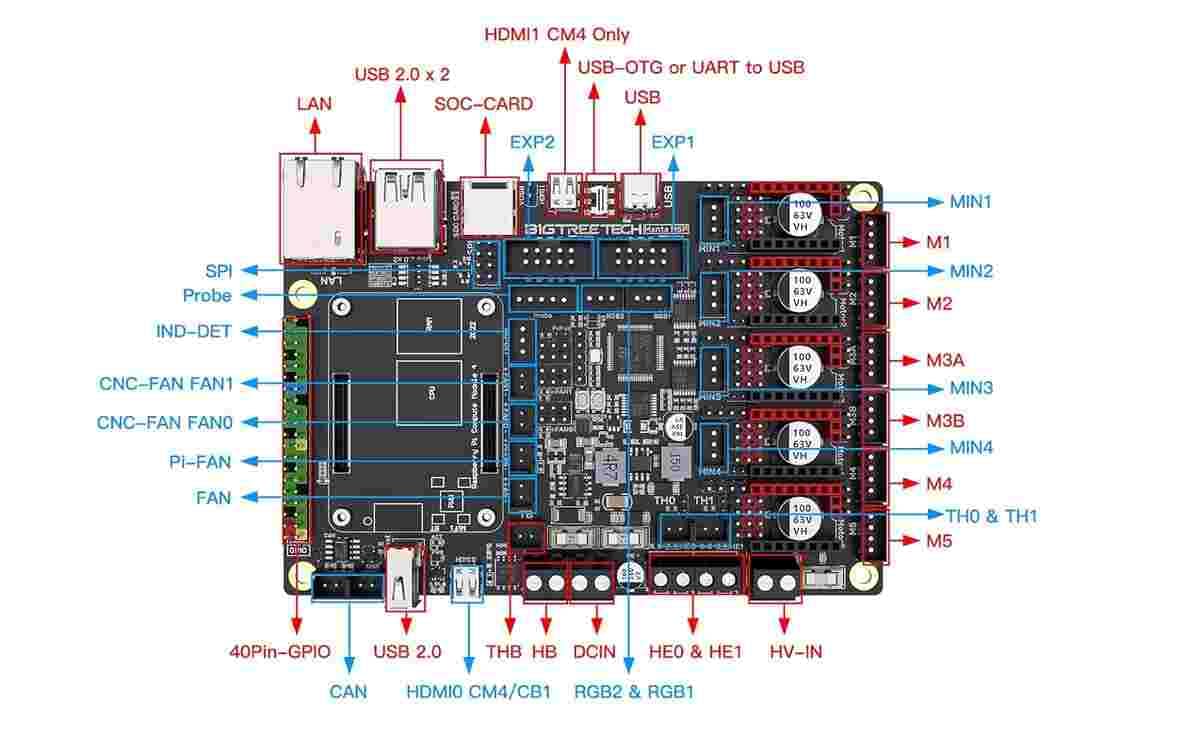

• Interfaces: USB 2.0 ×3, LAN, DSI, CSI, SPI, 40‑pin GPIO, HDMI, SoC/MCU card
• Expansion: BLTouch, Fil-DET, 2× RGB
• Driver support: TMC5160, TMC2209, TMC2225/2226, TMC2130, DRV8825, A4988, etc.
• Driver modes: SPI / UART / STEP/DIR
• Motors: X, Y, Z (Dual Z), E0
• Temp inputs: 2× 100K NTC
• Machine types: Cartesian / CoreXY / Delta / Kossel / Ultimaker

Applications

• Klipper control board upgrades with CB1
• Builds needing filament runout detection and auto shutdown
• Printers using BLTouch probing and RGB lighting
• Multi-interface builds using DSI/CSI, HDMI, GPIO, and USB expansion

Features

• Klipper-ready ecosystem with CB1 integration
• DSI display + CSI camera for monitoring and UI projects
• Wide driver compatibility with SPI/UART/STEP-DIR
• Selectable-voltage fan outputs for cleaner cooling setups
• Strong expansion for BLTouch, Fil-DET, and RGB

Package Includes

• 1 x Manta M5P
• 1 x Type C USB Cable and accessories.
