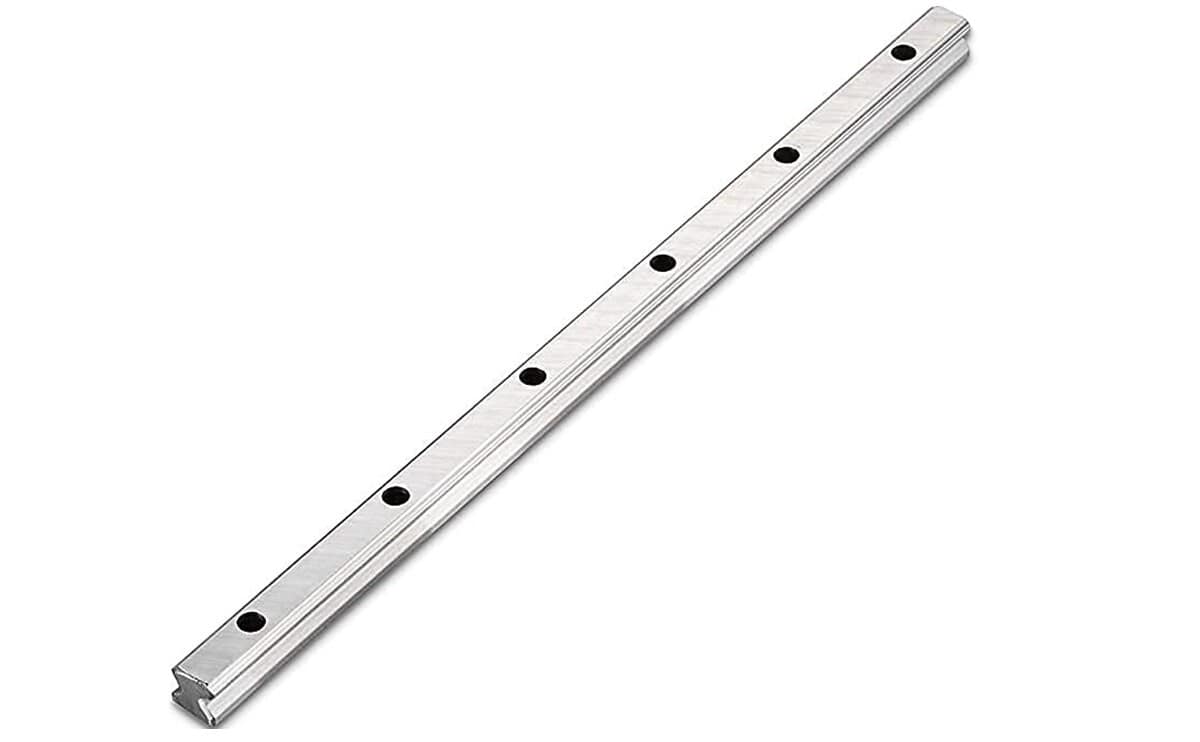

HGR15 Linear Rail 15mm Square Linear Motion Guideway (Without Block)

HGR15 Linear Rail 15mm Square Linear Motion Guideway (Without Block)

The HGR15 linear rail is a high-precision linear motion guide designed for CNC machines, 3D printers, and industrial automation.

• HGR15 linear guide rail (15mm) is a precision square linear motion guideway designed for smooth, stable, and accurate linear travel in CNC, 3D printing, robotics, and industrial automation.
• Made from hardened alloy steel with a wear-resistant anti-corrosion coating, this 15mm linear rail offers high rigidity, low vibration movement, and long service life in continuous-duty applications.
• This linear guideway rail only (block not included) features CNC-machined, pre-drilled mounting holes for fast alignment and installation.

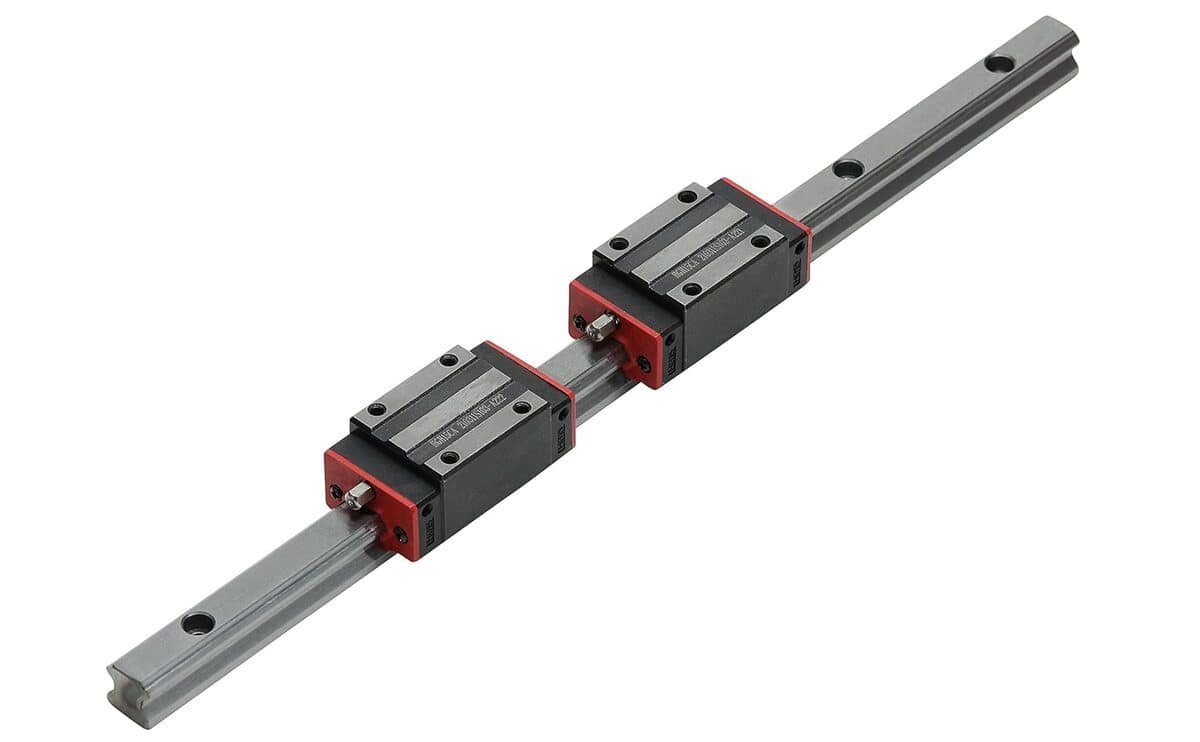

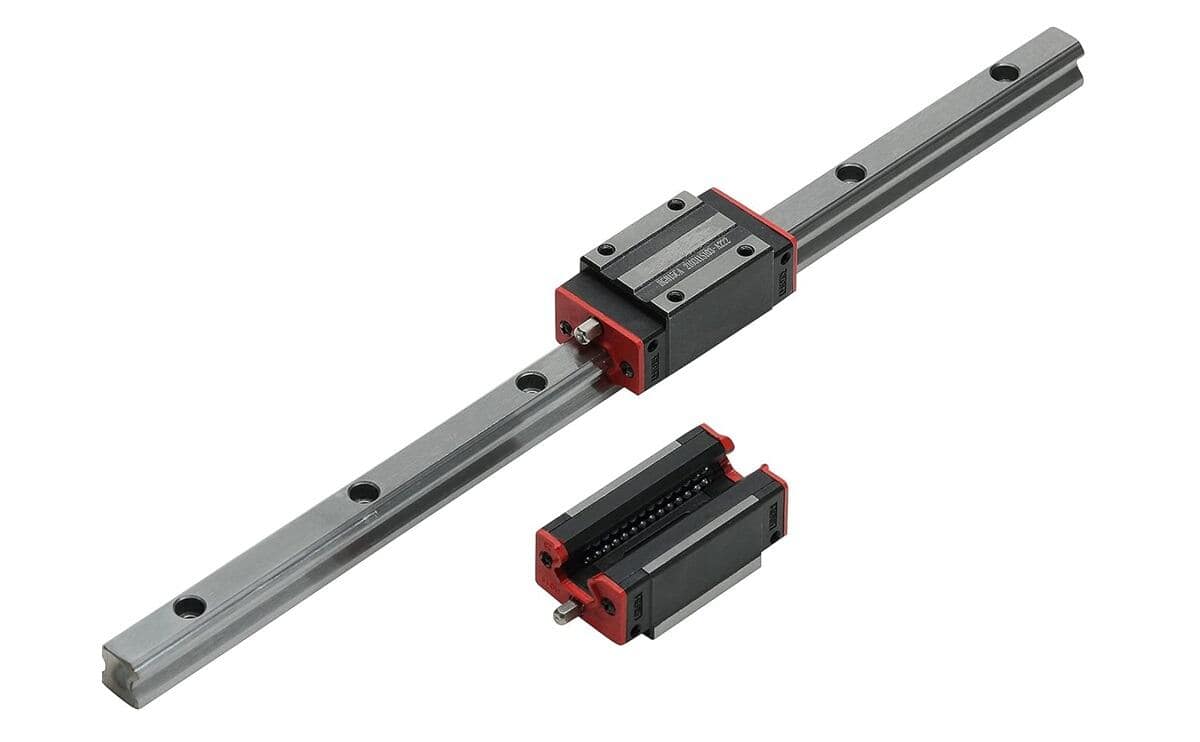

• It is compatible with common HGR15 linear guide blocks such as HGW15CC and HGH15CA, making it a reliable choice for building or upgrading linear axes, gantry systems, and precision positioning assemblies.

Specifications

• Model: HGR15 linear guide rail
• Material: Hardened alloy steel with anti-corrosion coating for extended durability
• Rail Width: 15mm precision ground rail
• Length Options: 400mm, 500mm, 600mm (custom sizes available)
• Dynamic Load Capacity: Up to 1,200N (application-dependent)
• Static Load Capacity: ~2,000N
• Mounting Holes: CNC-machined, pre-drilled mounting holes for fast installation
• Surface Coating: Anti-rust, wear-resistant finish for long-lasting performance
• Flatness Tolerance: ± 0.01mm for high-accuracy linear positioning
• Compatible Blocks: HGW15CC, HGH15CA, and other HGR15 linear bearing blocks

Key Features

• High Precision: Ensures smooth, vibration-free linear movement for tight tolerance machining.
• Heavy-Duty Build: Heat-treated steel guide rail for high load-bearing capacity.
• Corrosion Protection: Rust-proof coating ideal for industrial and harsh environments.
• Easy Setup: CNC-machined mounting holes make installation quick and accurate.
• Versatile Design: Compatible with linear bearings, ball slides, and guide blocks

Applications

• CNC Machines: Precision cutting, milling, and engraving
• 3D Printers: Smooth and accurate linear positioning
• Industrial Automation: Conveyor belts, assembly lines, pick-and-place systems
• Robotics: Stable movement for robotic arms and automation projects
• Medical Devices: Precision engineering for medical-grade machinery

Package Includes

• 1 x HGR15 Linear Guide Rail (400mm / 500mm / 600mm) – Block not included.
