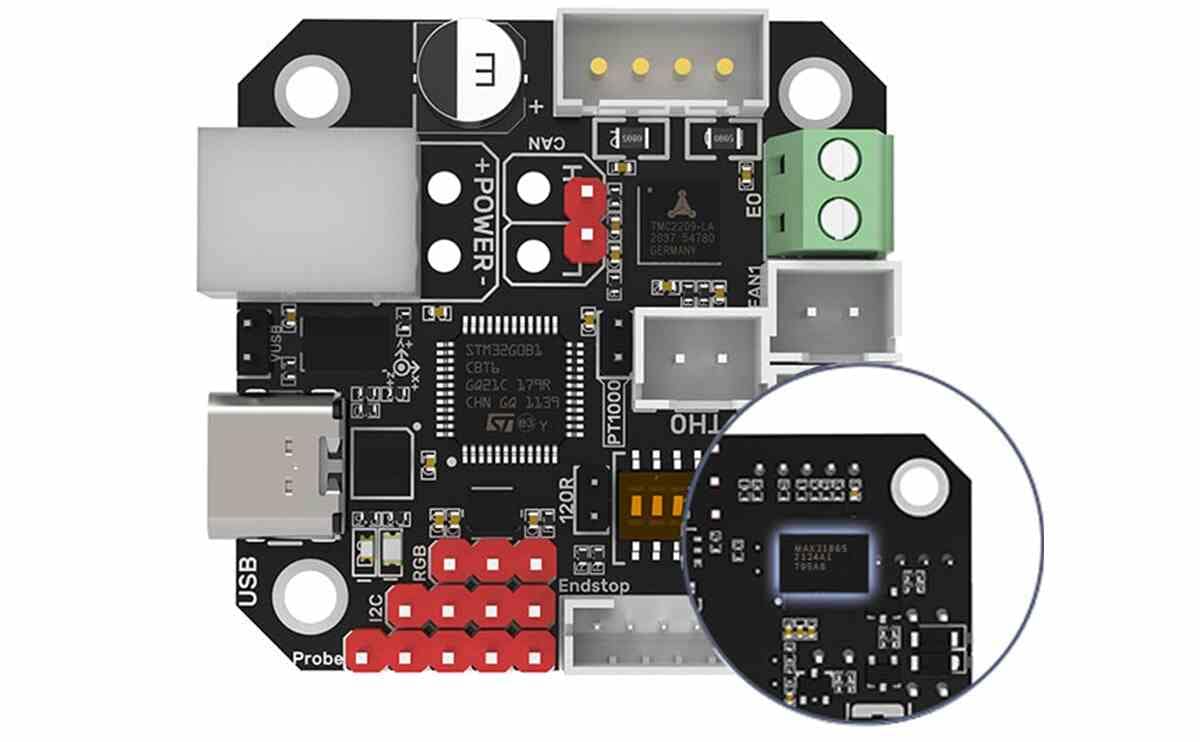

• BIGTREETECH EBB42 CAN Bus with MAX31865 is a toolhead-mounted control and adapter board designed to simplify wiring and improve reliability in modern 3D printer builds.
• By moving key connections to the toolhead and using CAN Bus (or USB) communication, it reduces cable clutter, improves signal stability, and supports cleaner, more serviceable toolhead setups—especially important for high-speed printers in India where long moving cable bundles can introduce noise and fatigue.



• This board is built for real-time toolhead control, supporting core components such as the hotend heater, fans, thermistors, and multiple expansion ports.
• It also includes an onboard stepper driver (TMC2209) for extruder control with UART mode, making it suitable for 42-stepper motor toolheads and compact direct-drive setups where local motor control is beneficial.

Specifications

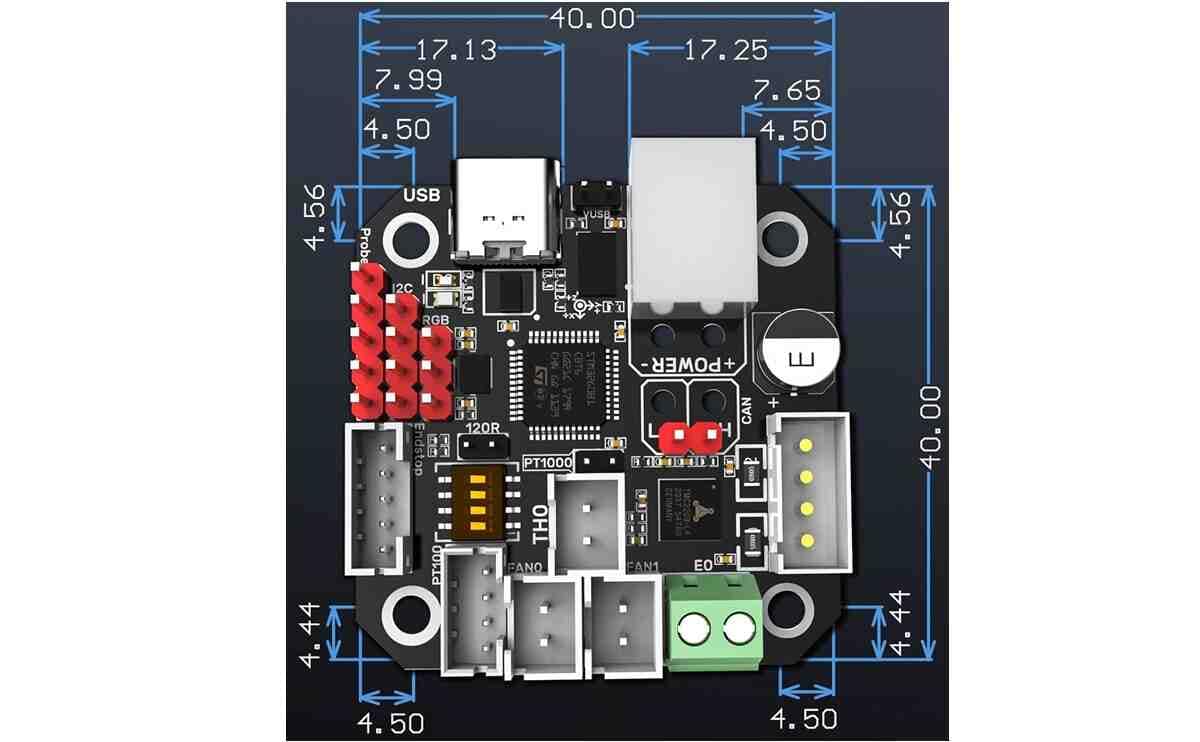

• Appearance size: 40 × 40 mm

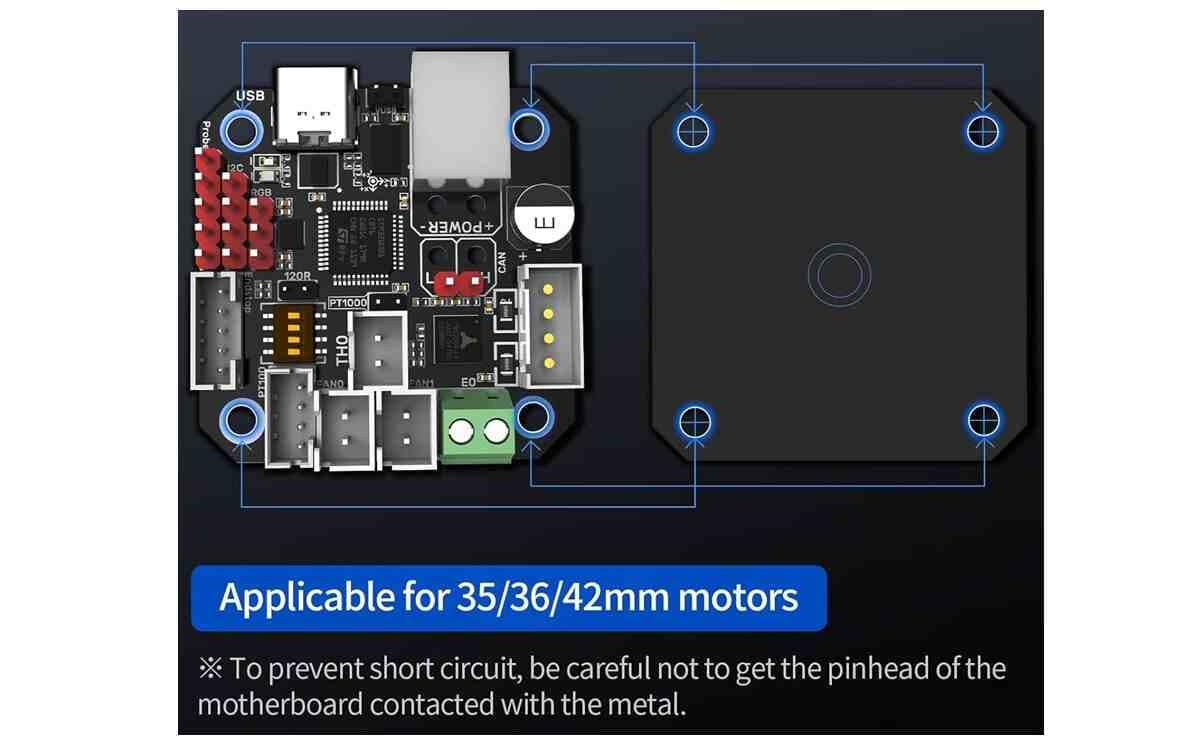

• Installation: hole spacing 31 × 31 mm, M3 screw holes ×4
• Microprocessor: ARM Cortex‑M0 STM32G0B1CBT6
• Input voltage: DC12V–DC24V, 9A
• Logic voltage: DC 3.3V
• Heating interface: E0, max output 5A
• Onboard sensor: ADXL345
• Fan interface: two CNC fans (FAN0, FAN1)
• Fan output: 1A (peak 1.5A)

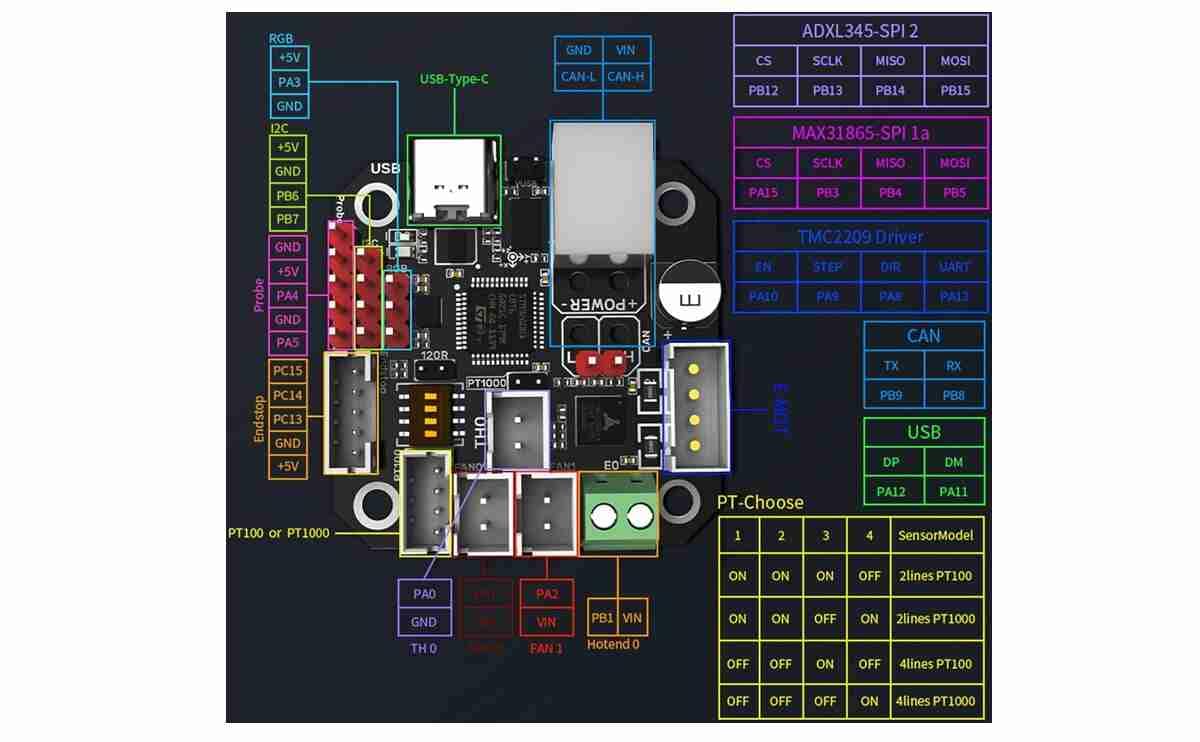

• Expansion interfaces: EndStop, I2C, Probe, RGB, PT100/PT1000, USB, CAN
• Motor drive: onboard TMC2209
• Drive mode: UART
• Stepper motor interface: EM
• Temp sensor inputs: TH0 (100K NTC or PT1000) + optional PT100/PT1000
• USB port: USB Type‑C
• DCDC 5V output: max 1A

Applications

• Klipper CAN toolhead builds and CAN-enabled printer upgrades
• High-speed printers needing cleaner wiring and stable signals
• Toolheads using PT100/PT1000 temperature sensors
• Builds using ADXL345 for resonance tuning and input shaping
• Toolheads needing jam/runout detection via I2C expansion

Features

• Smart upgrade: supports 2‑wire/4‑wire PT100/PT1000, CAN/USB, selectable 120Ω terminal resistance, RGB support ADXL345 toolhead
• Easy to use: simplifies wiring; onboard BOOT and RESET enable DFU firmware updates via USB
• Superior security: jumper-select USB power, thermistor protection, MOS/thermal safety considerations, and USB ESD protection
• Rich expansion: reserved I2C for filament runout/jam detection or DIY sensors; bundled terminals and hardware for DIY builds

Package Include

• 1 piece of EBB42 CAN Bus with MAX31865.
