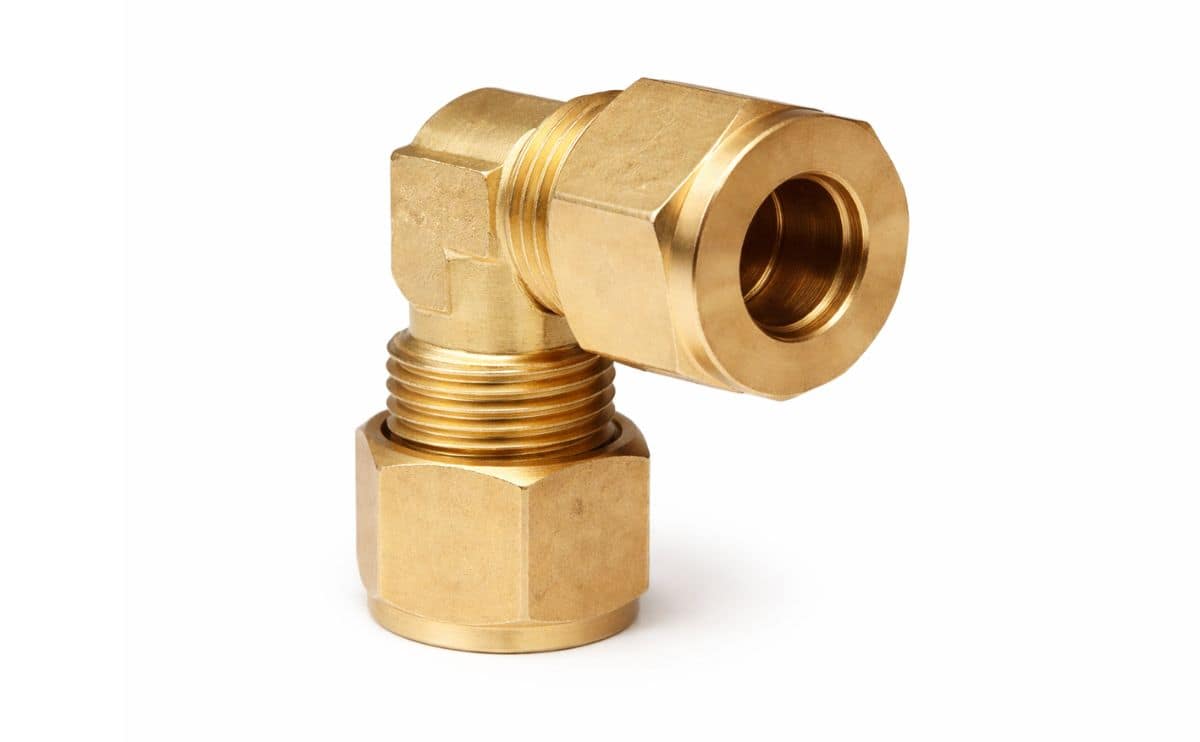

Brass Elbow Pipe Fitting Brass Elbow Assembly 2N + 2S Compression Pipe Fittings For Plumbing Oil Gas And Steam Applications

Brass Elbow Pipe Fitting Brass Elbow Assembly 2N + 2S Compression Pipe Fittings For Plumbing Oil Gas And Steam Applications

• Brass elbow pipe fitting is a durable brass elbow assembly (2N + 2S) designed for secure, leak-free 90-degree direction changes in piping systems.
• The 2N (male thread) end and 2S (compression) end make this compression fitting versatile for mixed connection requirements.
• Made from high-quality brass for corrosion resistance and long service life in residential and industrial installations.
• Suitable for high-pressure service and wide temperature range within rated limits.

Specifications

• Product: brass elbow pipe fitting
• Assembly type: brass elbow assembly (2N + 2S)
• Connection type: compression-fitting with 2N (male thread) + 2S (compression) ends
• Angle: 90-degree elbow
• Size range: 1/4″, 3/8″, 1/2″, 3/4″, 1″ (and more)
• Pressure rating: up to 300 PSI (high-pressure applications)
• Temperature range: -65°F to 250°F (-54°C to 121°C)
• Finish: smooth, polished finish
• Compatibility: copper, PVC, and PEX (as per correct compression compatibility)

Features

• High-quality brass construction for strength and corrosion resistance
• 2N + 2S design supports versatile installations with threaded + compression connection
• Compression-fitting design enables quick installation without soldering
• 90-degree elbow routing for efficient directional changes
• Handles high-pressure applications up to 300 PSI
• Wide temperature tolerance for varied service conditions
• Polished finish for professional appearance and easier maintenance

Applications

• Plumbing systems using brass elbow pipe fitting for direction changes
• Oil, gas, and steam lines within rated limits using brass elbow assembly (2N + 2S)
• Residential and industrial repairs where compression-fitting installation saves time
• Mixed-material piping transitions with copper/PVC/PEX where compatible

Usage

• Choose the correct brass elbow assembly (2N + 2S) size for the pipe/tube OD and thread.
• Tighten the 2N (male thread) end into the matching threaded port with suitable sealing method.
• Insert tube into the 2S (compression) end and tighten the compression nut to seal (avoid over-tightening).
• Align the 90-degree elbow direction, then pressure test for leak-free performance.

Package Include

• 1 piece of Brass Elbow Pipe Fitting as per ordered size.
