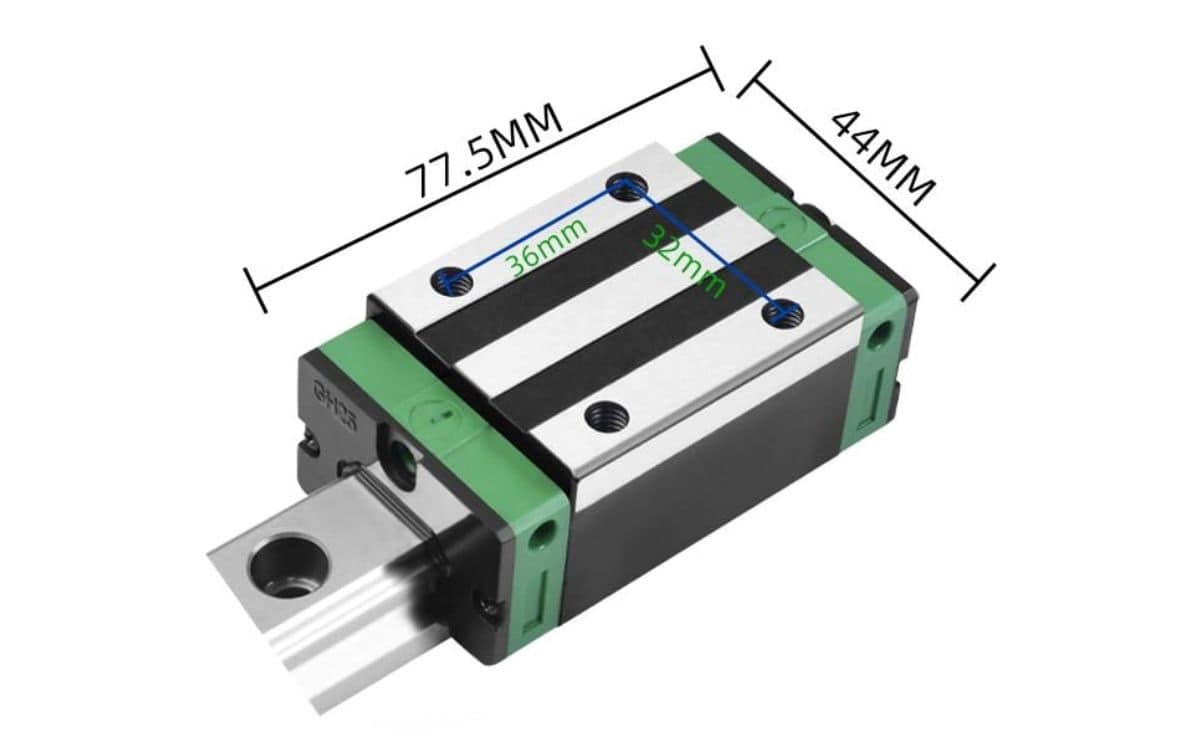

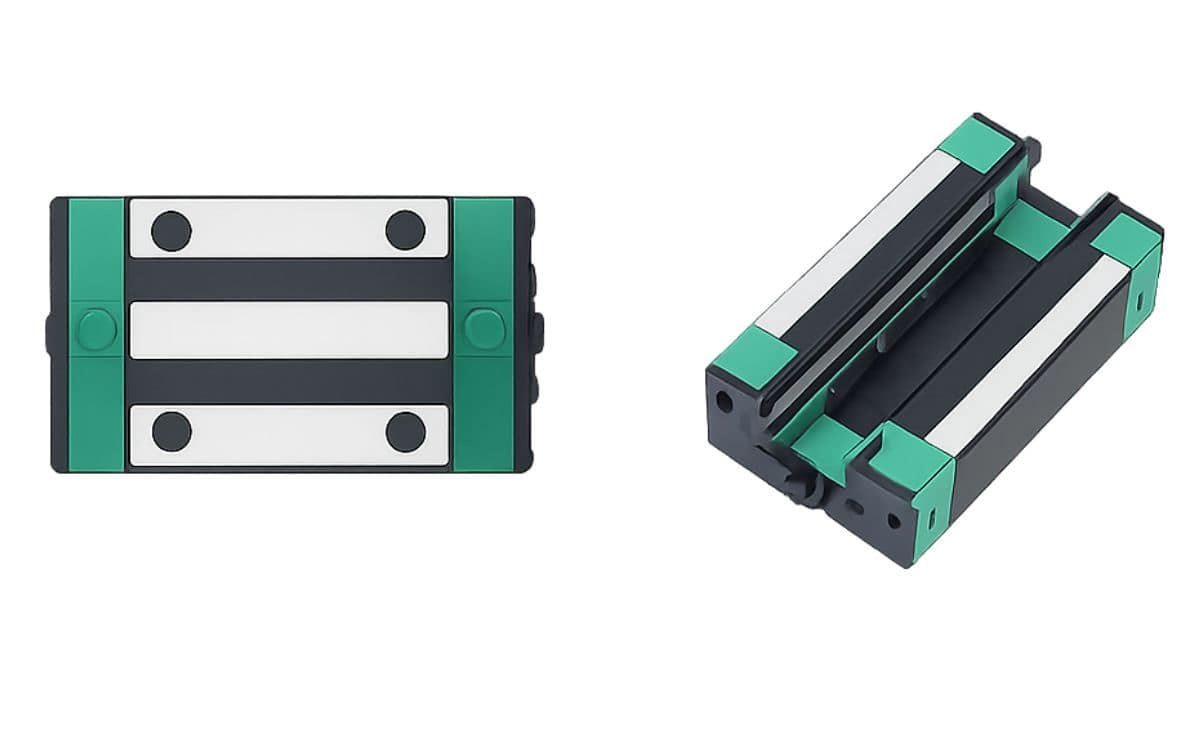

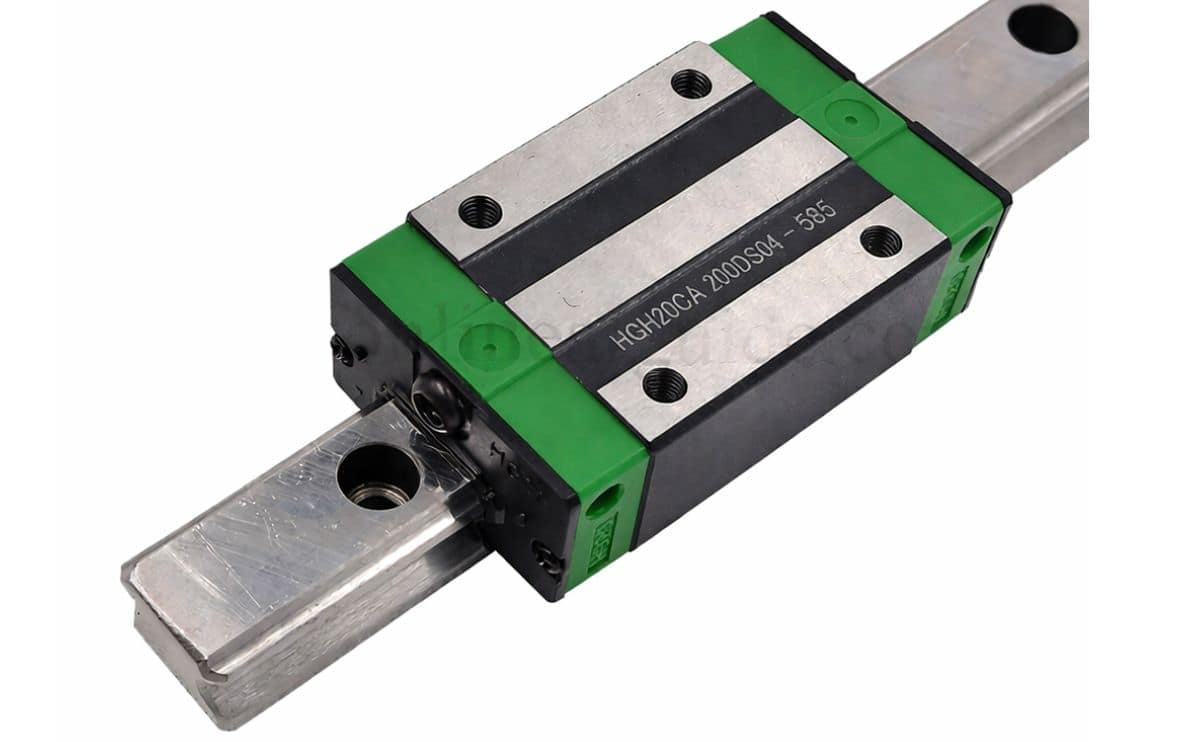

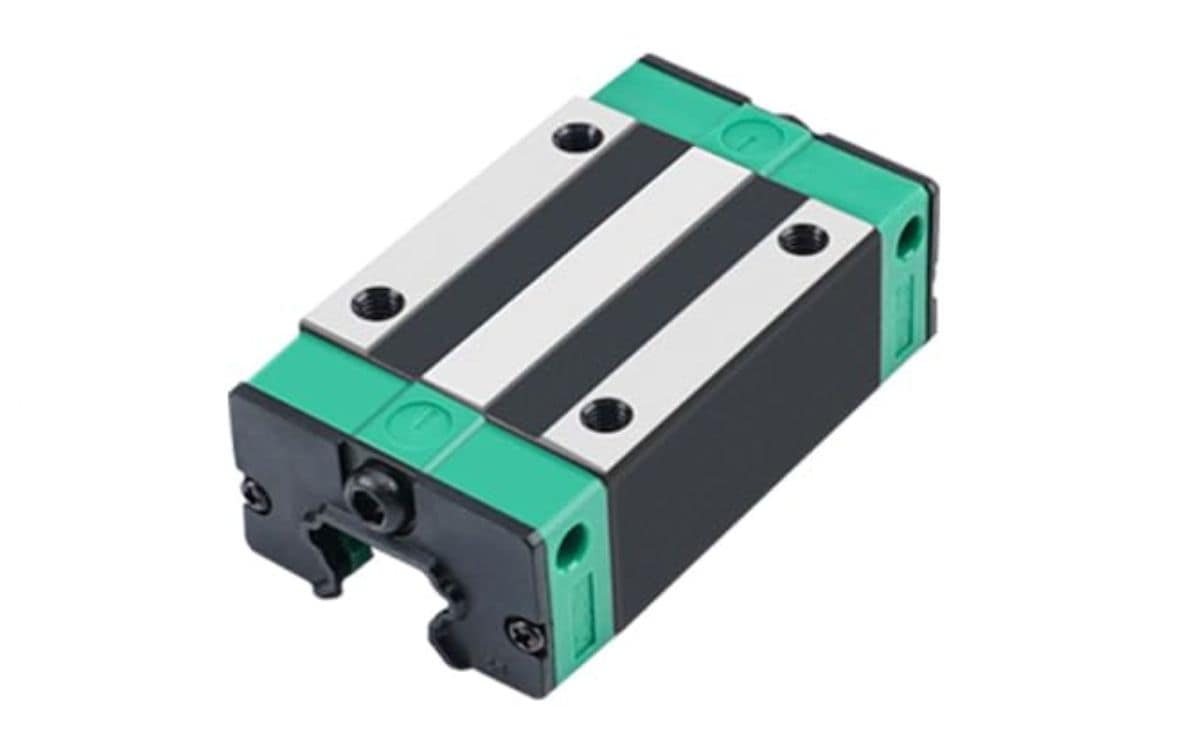

HGH20 Linear Guide Block Square Type Linear Motion Bearing Carriage for HGH20 Rail

HGH20 Linear Guide Block Square Type Linear Motion Bearing Carriage for HGH20 Rail

HGH20 Linear Guide Block Square Type Linear Motion Bearing Carriage for HGH20 Rail

• HGH20 linear guide block is a square-type linear motion bearing designed for smooth, precise, and stable linear movement.
• It runs on an HGH20 linear guide rail and is widely used in CNC machines, automation systems, 3D printers, and industrial machinery.
• HGH20 linear guide block (square type)—a heavy-duty linear bearing carriage designed to run on an HGH20 linear guide rail.
• Manufactured from hardened high‑carbon bearing steel and precision-ground for stable alignment, this HGH20 linear rail block uses recirculating steel balls to deliver low friction, high load capacity, and long service life in demanding CNC and automation setups.
• The square carriage design improves rigidity and supports loads from multiple directions, making it ideal for medium to heavy-duty linear motion systems such as CNC routers, milling machines, gantry systems

Specifications

• Model: HGH20 (Clone)
• Type: Square Type Linear Rail Block
• Rail Compatibility: HGH20 Linear Guide Rail
• Material: High carbon bearing steel
• Block Body: Hardened steel with precision grinding
• Rolling Elements: Steel balls
• Lubrication: Grease nipple provided
• Mounting Type: Top mounting
• Accuracy Grade: Standard (Clone grade)
• Operating Temperature: -20°C to 80°C

Applications

• CNC routers and milling machines
• 3D printers (large format / industrial)
• Automation and linear motion systems
• Pick and place machines
• Woodworking and metalworking machines
• Robotics and gantry systems
• Laser cutting and engraving machines

Features

• HGH20 square type linear guide block (compatible/aftermarket)
• Runs on HGH20 linear guide rail for stable motion
• High load capacity + high rigidity for industrial applications
• Recirculating ball bearing system for smooth, low-friction travel
• Grease nipple (lubrication port) for easy maintenance
• Top mounting for straightforward installation

Package Includes

• 1 piece of HGH20 Linear Guide Block.
