Bondtech LGX Shortcut Copperhead Short Filament Path Print Head

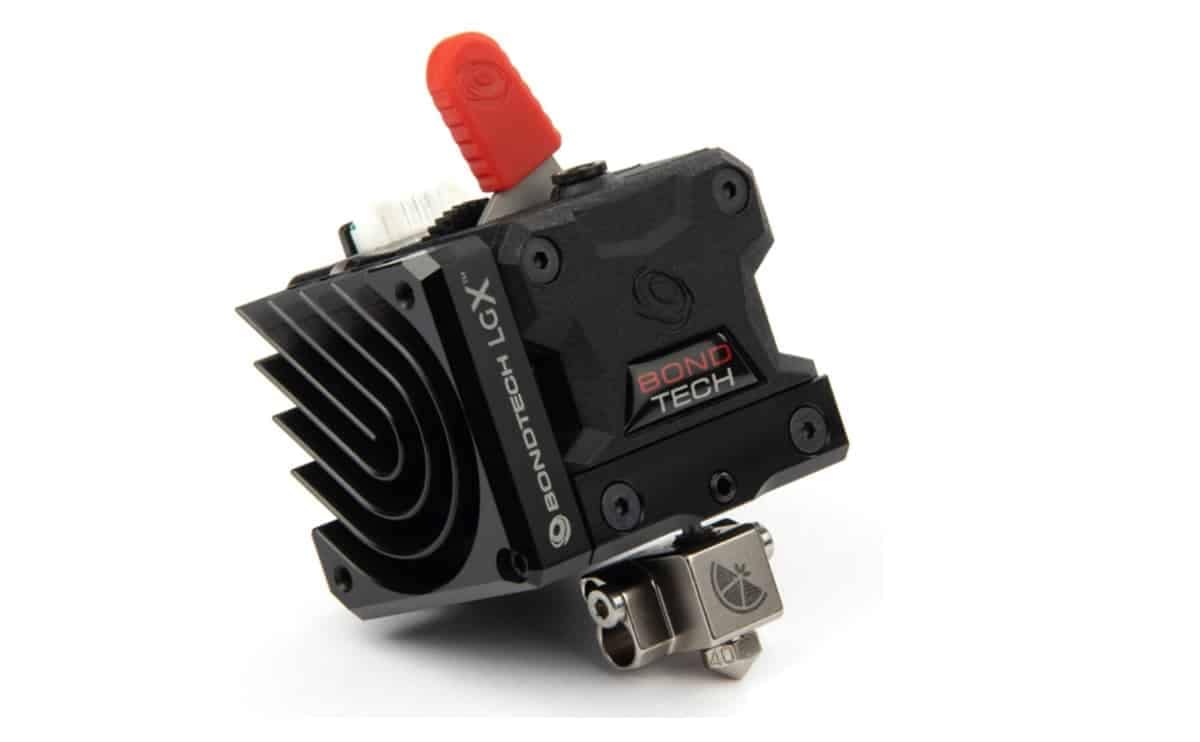

Bondtech LGX Shortcut Copperhead Print Head

• Bondtech LGX Shortcut Copperhead Print Head combines the LGX Large Gears extruder with the LGX Shortcut Copperhead hotend for a compact, high-control printhead.
• The key advantage is a 27mm shorter filament path than standard screw-mount Copperhead setups, improving feeding stability for soft and flexible filaments.
• Designed for broad material capability, stable extrusion, and toolhead layouts where low weight and flexible mounting are important.
• Note: package does not include motor.

Specifications

• Product type: Printhead (extruder + hotend unit)
• Extruder: LGX Large Gears extruder

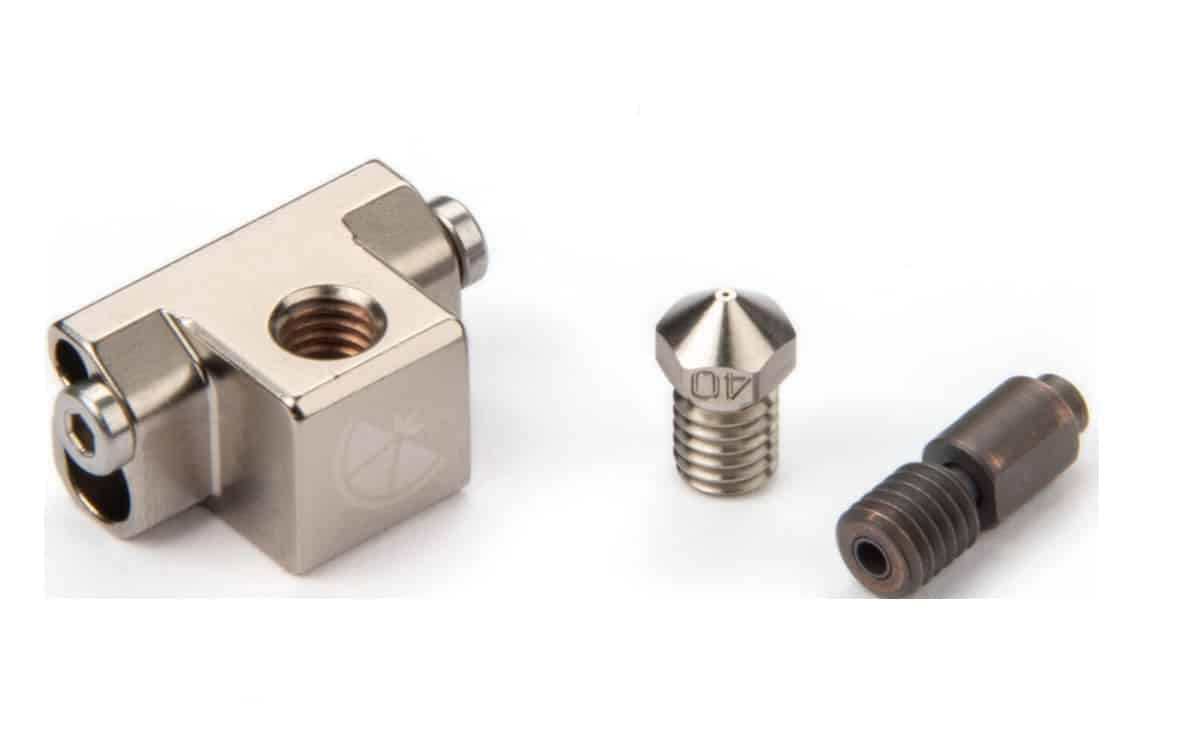

• Hotend: LGX Shortcut Copperhead hotend (Copperhead-based)
• Filament path: 27mm shorter than standard screw mount Copperhead hotend
• Cooling compatibility: heat sink supports 40×40 fan mounting

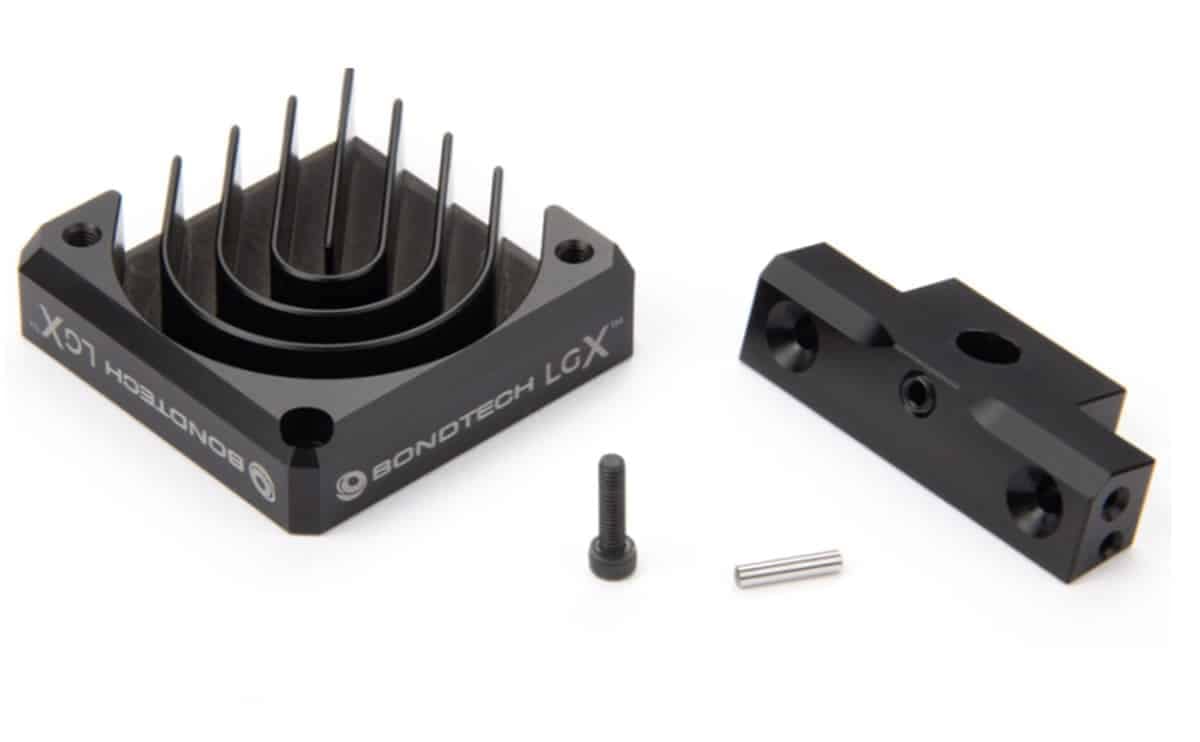

• Heat sink: reversible (left or right side mounting)

Features

• Short filament path: better control and faster printing with flexible and soft materials.
• Reversible heat sink: install left or right to suit your toolhead layout.
• Compact and lightweight: supports better motion control and reduced ringing.
• Flexible mounting options: easier integration into custom printers and toolheads.
• Copperhead-based hotend: stable thermal performance for consistent extrusion.

Cooling Guidance

• 4010 fan is typically sufficient to cool the cold block and heat break cold zone.
• For higher cooling demand: try a 4020 fan or use two LGX heat sinks (one per side).

Advantages

• Prints a wide range of materials, including soft and flexible
• Enables faster flexible printing with fewer feeding issues
• Small footprint for tight toolhead designs
• Supports multiple mounting configurations
