BIGTREETECH Manta E3EZ V1.0 for Ender 3

BIGTREETECH Manta E3EZ V1.0 for Ender 3

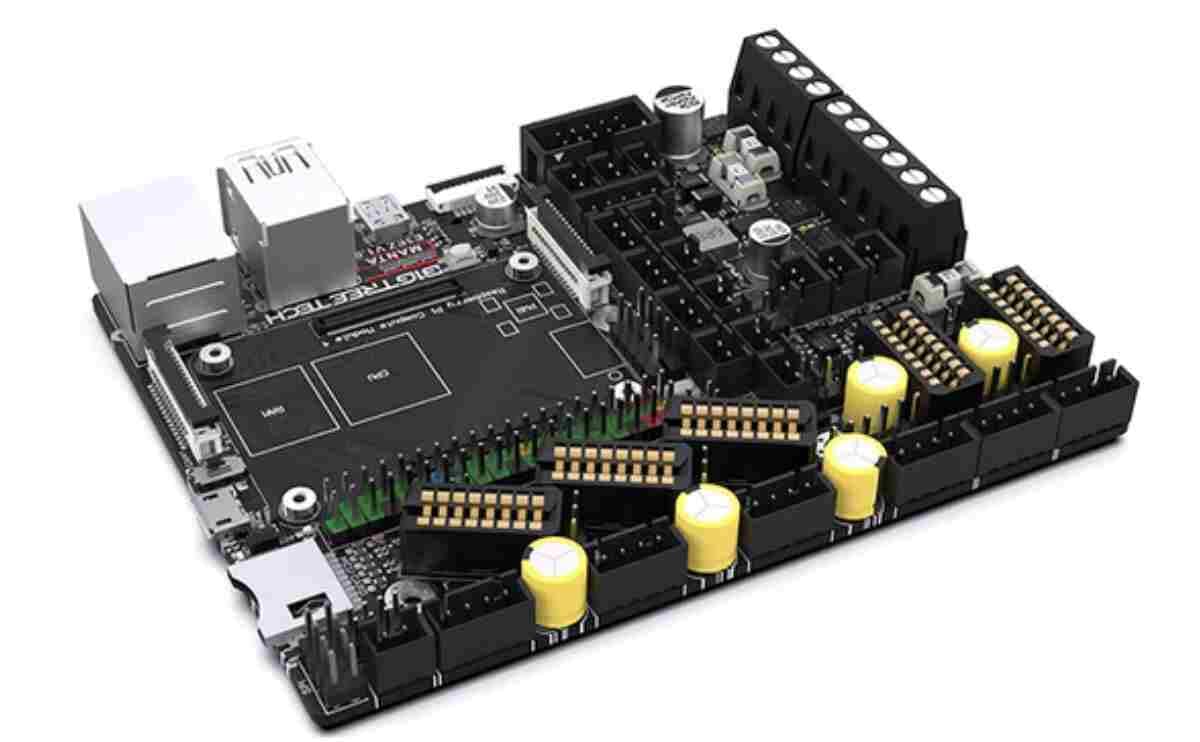

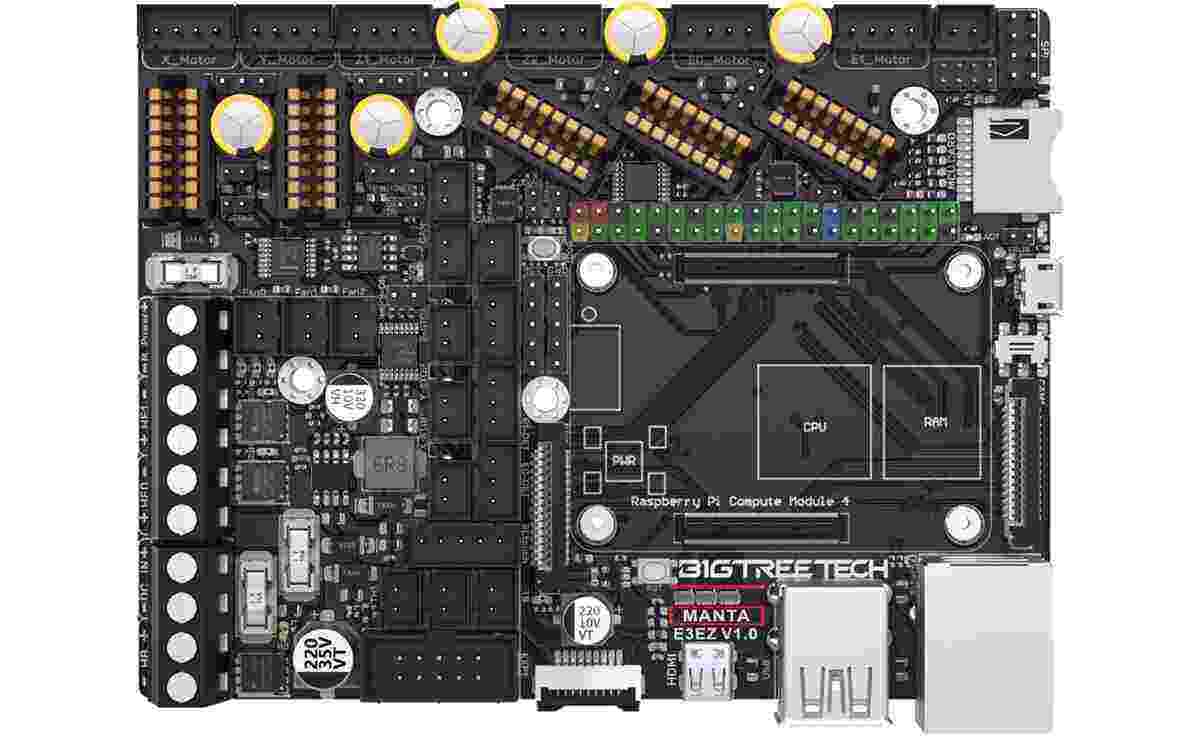

BIGTREETECH Manta E3EZ V1.0 Control Board is a high-performance Ender 3 control board upgrade built for smoother motion and more reliable printing.

• A modern 32-bit motherboard helps improve step accuracy, stability, and responsiveness versus older 8-bit boards.
• Designed for Ender 3 series users who want cleaner prints, better motion handling, and easier future upgrades.
• BIGTREETECH Manta E3EZ V1.0 Supports EZ stepper drivers (plug-in style) to reduce wiring mess and simplify installs for makers and service teams.
• Great for India-based hobbyists, labs, and small print farms needing a dependable Ender 3 motherboard upgrade that’s easier to maintain.
• Expands your upgrade options with ports for BLTouch, filament sensor, RGB, and CAN-FD accessories.
• Helps enable quieter operation when paired with compatible EZ2209-type silent drivers.
• Suitable for multiple motion setups (Cartesian/CoreXY/Delta) for builders experimenting beyond basic configurations.

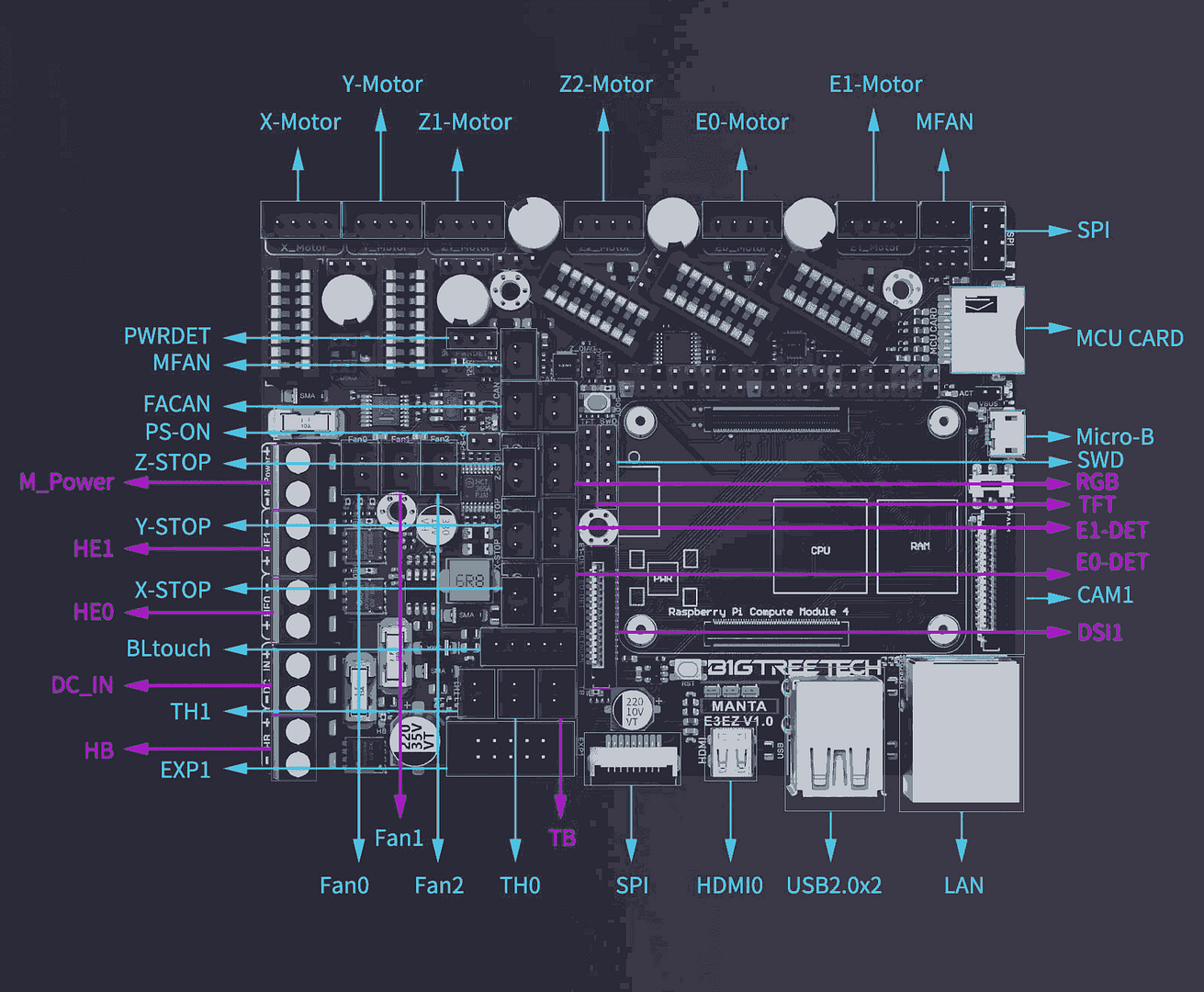

Specifications

• MCU: ARM Cortex-M0+ (STM32G0B1RE, 64MHz)
• Input Voltage: DC 12–24V
• Motor Voltage: DC 12–56V
• Logic Voltage: 3.3V
• Heaters: Heated Bed + Dual Heater Outputs (HE0, HE1)
• Max Current: HB 10A (cont.), Heater 5A (cont.)
• Fan Ports: 3× PWM + 2× Always ON
• Motor Drivers: EZ-series supported (e.g., EZ2209, EZ5160)
• Driver Mode: SPI / UART
• Motor Outputs: X, Y, Dual Z, E0, E1 (5 total)
• Thermistors: 3 × 100K NTC
• Display: SPI Touchscreen / LCD
• PC Connection: Micro-USB
• Expansion: BLTouch, filament sensor, RGB, CAN-FD
• Kinematics: Cartesian, CoreXY, Delta

Applications

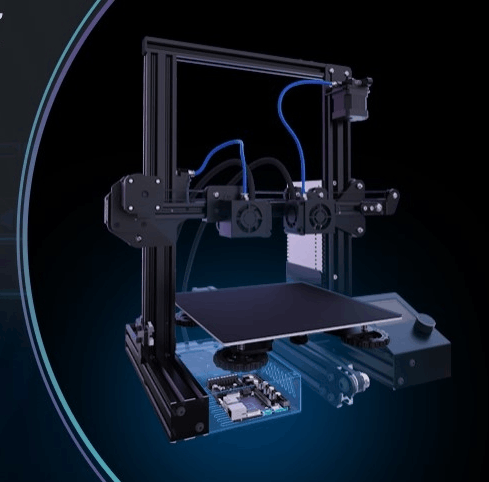

• Upgrading Ender 3 series printers for smoother prints and better reliability With BIGTREETECH Manta E3EZ V1.0
• Quieter, cleaner motion builds using EZ stepper drivers
• Adding auto bed leveling with BLTouch for faster setup and fewer first-layer failures
• Running dual extrusion/heater workflows using dual heater outputs
• Classroom/lab printers needing easier servicing and consistent uptime
• Modded printers needing expansion options like RGB and CAN-FD

Features

• 32-bit high-performance control board for improved control and print quality
• Purpose-built Ender 3 control board upgrade path
• EZ stepper driver support for quick installs and reduced wiring hassle
• Improved motion control for cleaner surfaces and better detail
• Quieter operation with advanced EZ-series driver compatibility
• Multiple expansion options: BLTouch, filament sensor, RGB, CAN-FD
• Stable firmware compatibility for long-term use
• Broad kinematics support for advanced build projects

Package Includes

• 1 piece of Manta E3EZ V1.0 Control Board
