bigtreetech sksm v1.0 board power module For 3D Printer

Bigtreetech sksm v1.0 board power module For 3D Printer

Bigtreetech SKSM V1.0 power module For 3D Printer

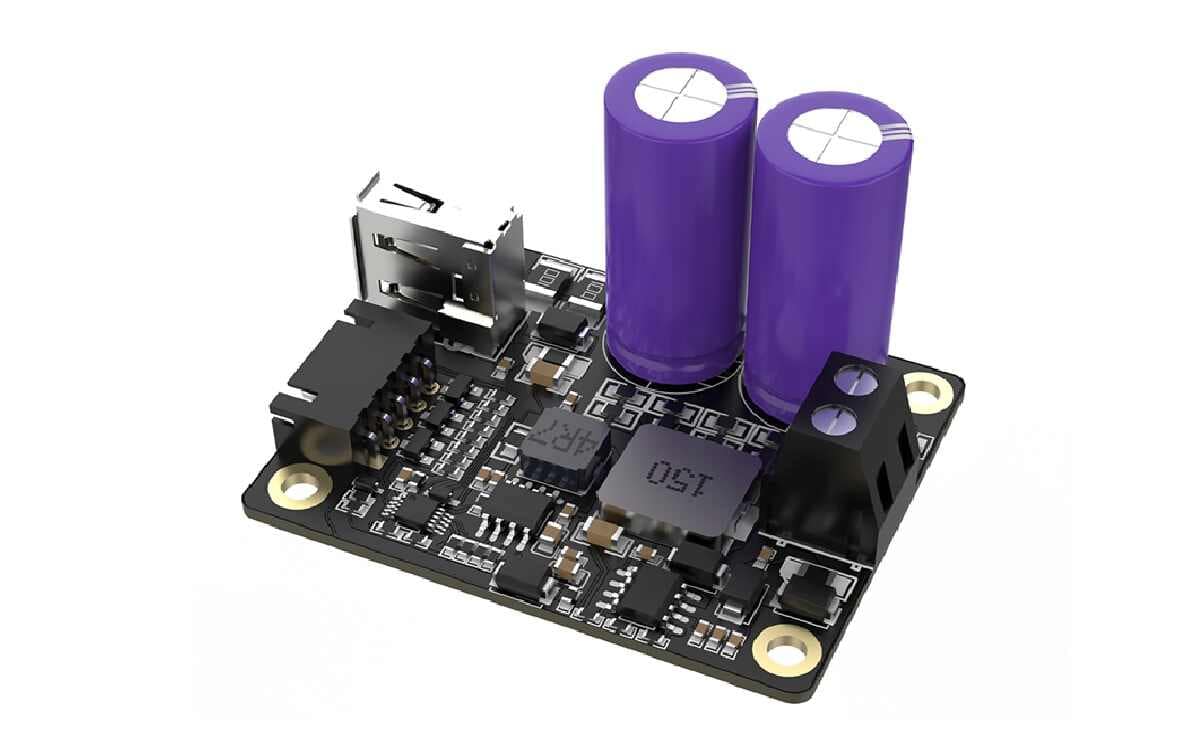

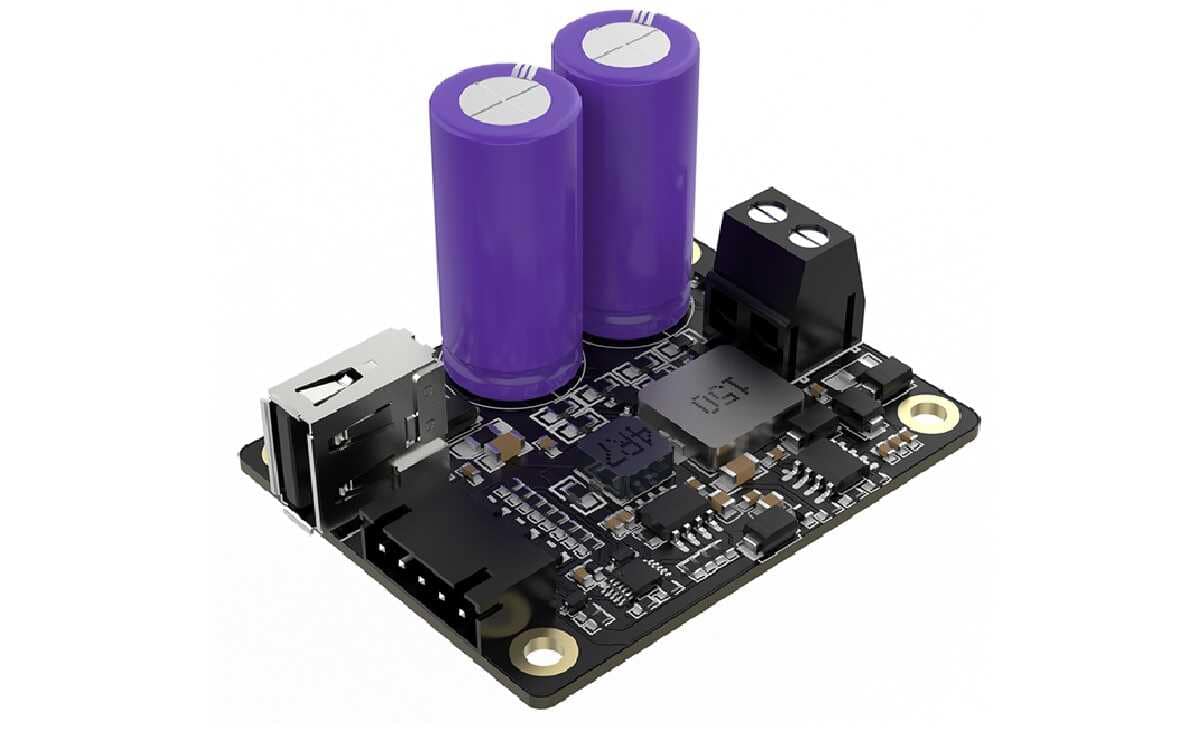

• bigtreetech sksm v1.0 board is a compact UPS / power-loss protection module designed to keep a 3D printer’s SBC and controller electronics stable during sudden outages and brownouts.
• For many India-based setups where power dips can happen, the SKSM V1.0 adds a practical layer of reliability—especially when your printer depends on a host like a Raspberry Pi running Klipper or OctoPrint.
• The core purpose is simple: provide temporary energy storage so the SBC can stay powered long enough to shut down cleanly. A clean shutdown helps prevent file-system errors and reduces the chance of SD card corruption, which is one of the most common causes of “won’t boot” issues on Raspberry Pi-class devices. By stabilizing the 5V path, the module also helps buffer brief voltage drops that can cause random disconnects, camera failures, or interrupted remote printing sessions.

Specifications

• Product type: UPS / power loss protection module
• Model: SKSM V1.0
• Function: backup energy storage + safe shutdown support
• Output: 5V USB supply for SBC
• Protection: over-current / power management

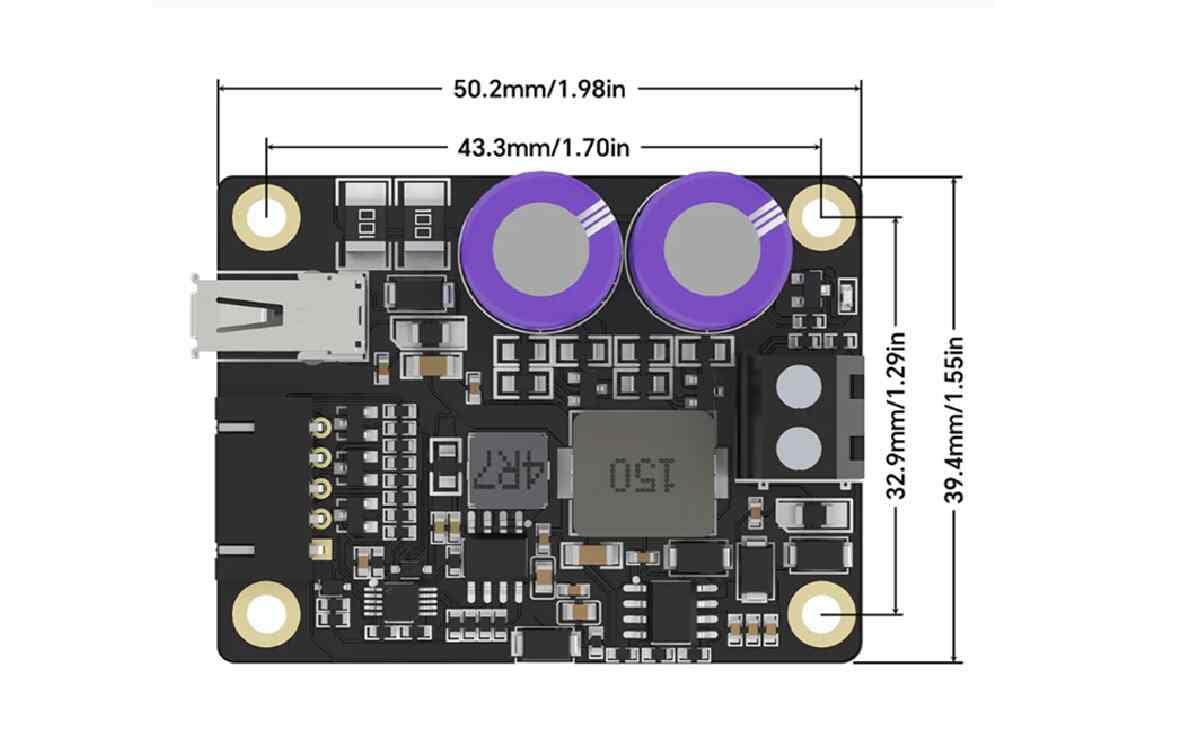

• Design: compact PCB, simplified inline wiring
• Compatibility: Raspberry Pi & similar single-board computers
• Installation: inline (between supply and SBC power path)

Features

• Power loss protection for SBCs with stabilized 5V
• Safe shutdown support to reduce storage/file-system issues
• Over-current and power management safety layer
• Compact PCB for easy mounting inside printer enclosures
• Best fit for Klipper/OctoPrint SBC workflows

Applications

• Safe shutdown for SBC hosts to reduce SD card corruption
• Print recovery readiness (depends on host/firmware workflow)
• Power stabilization against dips and brief brownouts
• Electronics protection for SBC-driven printer control stacks
• More reliable long prints and remote printing workflows

Benefits

• Protects Raspberry Pi & controller electronics from sudden-off events.
• Reduces downtime caused by corrupted storage and failed boots.
• Improves overall printer reliability in unstable power environments.
• Simple upgrade path for SBC-based 3D printing stacks.

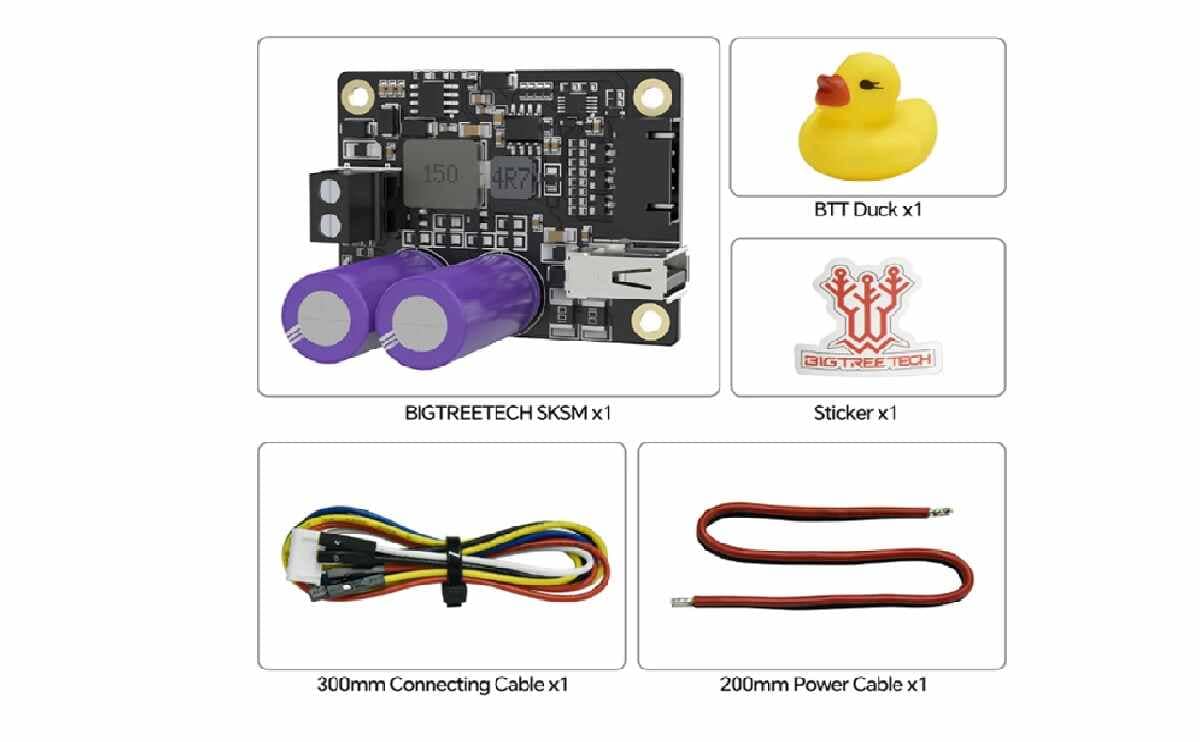

Package Includes

• 1 x SKSM module.
• 1 x BTT duck, sticker.
• 1 x 300mm connecting cable.
• 1 x 200mm power cable.
