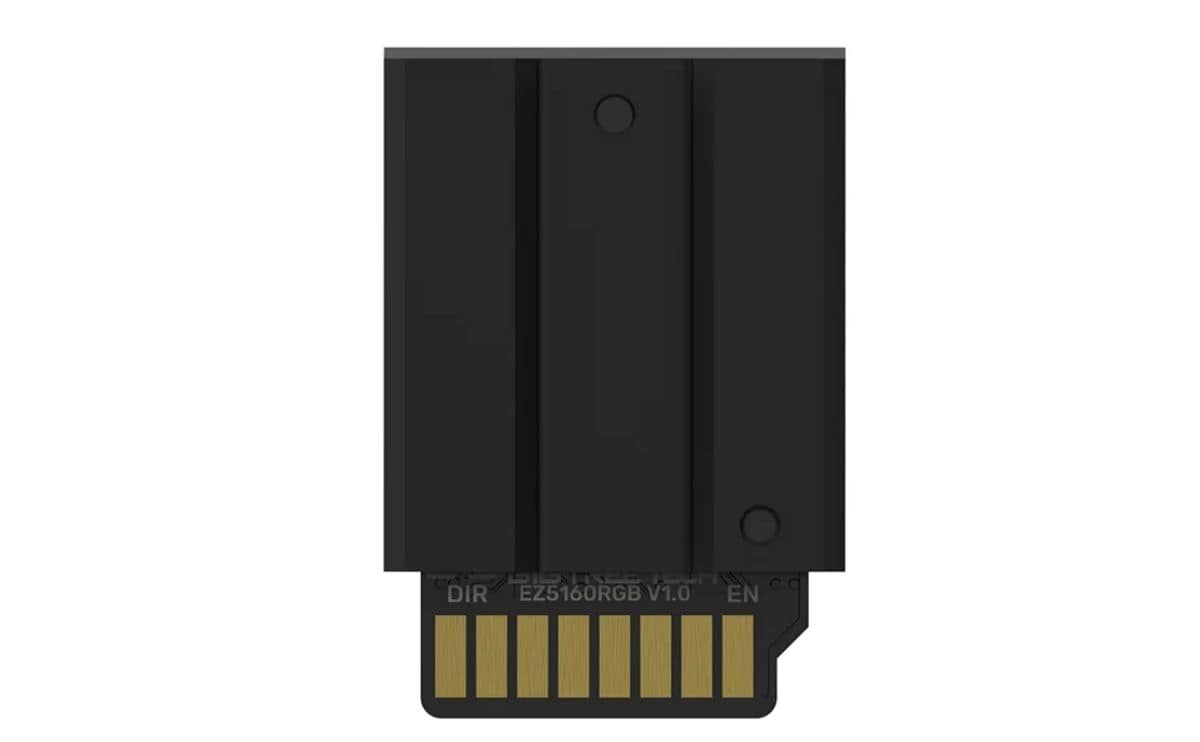

BIGTREETECH EZ Driver EZ5160 RGB High-Power Stepper Motor Driver

BIGTREETECH EZ Driver EZ5160 RGB High-Power Stepper Motor Driver

• EZ Driver EZ5160 RGB is a high-performance stepper motor driver designed for powerful, smooth and quiet motion control in high-speed 3D printers.
• Built around the TMC5160 driver chip with eight external MOSFETs, it supports high-voltage operation and provides reliable torque for demanding stepper-motor applications.
• Its convenient BIGTREETECH EZ Driver EZ5160 RGB plug-in design enables quick installation on compatible BIGTREETECH motherboards. SPI communication provides advanced motor configuration, accurate current control and features such as sensorless homing. Integrated addressable RGB lighting adds visual status indication and a modern appearance.

Specifications

• Product: BIGTREETECH EZ Driver EZ5160 RGB
• Driver chip: TMC5160
• Power stage: Eight external MOSFETs
• Maximum input voltage: Up to 56V
• Communication mode: SPI
• Microstepping: Up to 256 subdivisions
• Motion modes: stealthChop and spreadCycle
• Special feature: Addressable RGB lighting
• Installation: EZ-series plug-in connector
• Cooling: Integrated heatsink design

Features

• High Power Capability: Supports up to 56V input voltage and high current output thanks to external MOSFETs, making it perfect for large, high-torque stepper motors.
• Ultra-Quiet Operation: Advanced TMC5160 technology with stealthChop and spreadCycle modes for silent printing across a wide speed and torque range.
• Customizable RGB Lighting: Built-in addressable RGB LEDs for stylish status indication and visual customization of your printer.
• SPI Mode Support: Full SPI configuration for advanced features including sensorless homing (stallGuard) and precise current control.
• Easy Installation: Pluggable “EZ” design with standard pin headers for quick swap on compatible control boards.
• High Adaptability: Excellent performance with various stepper motors and control boards like SKR 3  Manta series, and other BIGTREETECH motherboards.
• This driver is an ideal upgrade for users seeking higher voltage/torque capability, quieter operation, and a modern RGB aesthetic. It excels in CoreXY, Voron, and high-speed printer builds where powerful, reliable stepper control is essential.

Applications

• CoreXY 3D printers
• Voron printer builds
• High-speed FDM 3D printers
• Large-format 3D printers
• CNC and automation projects
• High-torque stepper-motor systems
• Custom motion-control machines

Compatible Control Boards

• Suitable for motherboards equipped with compatible BIGTREETECH EZ Driver sockets, including selected SKR, Manta and Octopus EZ-series boards. Verify the motherboard’s driver socket, supply-voltage limit and firmware configuration before installation.

Package Includes

• 1 Piece of BIGTREETECH EZ Driver EZ5160 RGB
