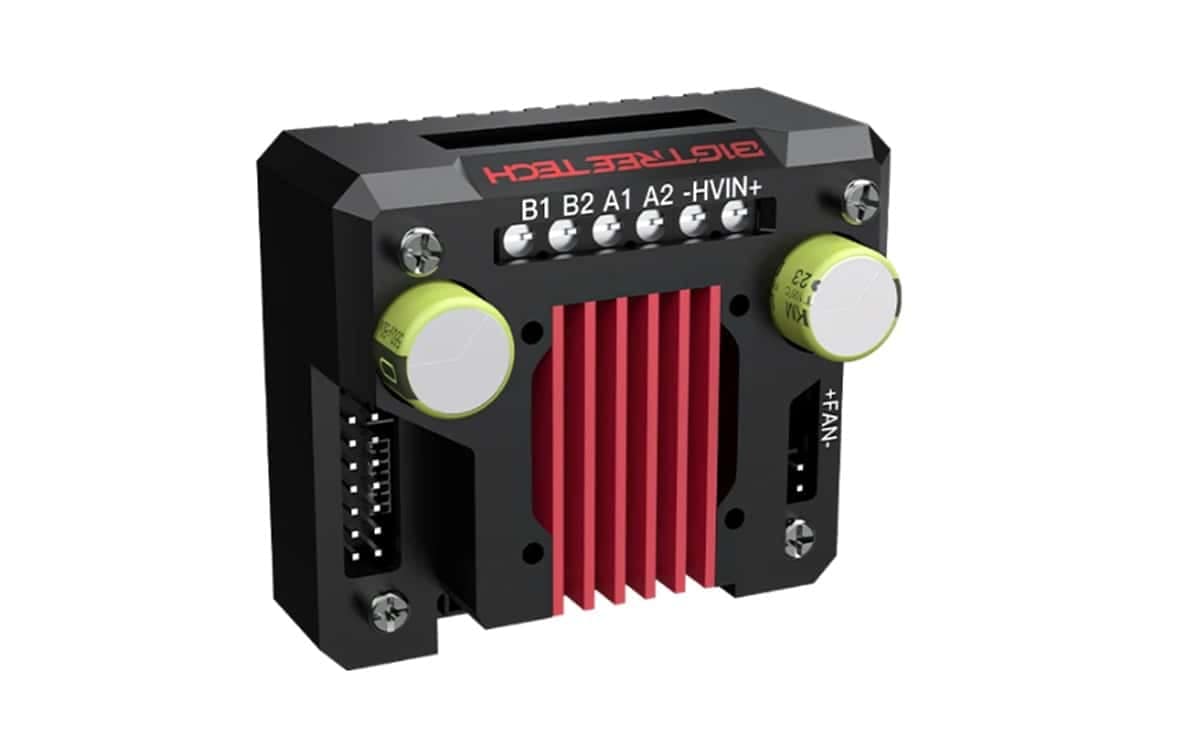

TMC5160T plus driver 60v Bigtreetech stepper motor driver for 3D printer machine
Availability:
In stock
BIGTREETECH TMC5160T Plus is a high-power motor driver for demanding 3D printers and CNCs. It uses eight MOSFETs to handle up to 60V input and 10.6A IRMS (15A peak) with lower heat generation. It offers StealthChop for quiet operation and SpreadCycle for dynamic torque, plus SPI and standalone control modes. The board supports active cooling via a 24V fan header, includes ESD protection, and is designed to reduce motor jitter and improve reliability when tuned for larger steppers.
- 8 high-power MOSFETs with 100V rating, 93A current, and ~6 mΩ Rds(on)
- Max input voltage: 60V
- Current capability: 10.6A IRMS, 15A peak
- Selectable motion modes: StealthChop and SpreadCycle
- Selectable control: SPI and standalone-style modes
- Lower heat generation with an onboard 24V fan header for active cooling
- ESD protection on power/logic for better durability
- 24V always-on fan interface for active cooling
₹4,979.00
In stock
Tell us what you need and we’ll help you source it.
TMC5160T plus driver 60v Bigtreetech stepper motor driver for 3D printer machine
- BIGTREETECH TMC5160T Plus driver 60V is a high-power stepper motor driver module for demanding 3D printer machines and CNC motion systems.
- Uses 8 high-power MOSFETs mounted on-board to support higher voltage and current handling for larger stepper motors.
- Supports up to 60V input and very high drive current (10.6A IRMS, up to 15A peak) for strong torque and stable motion under load.
- Offers selectable motion modes like StealthChop (quieter motion) and SpreadCycle (dynamic control) to match speed vs torque needs.
- Flexible control options with SPI and standalone-style modes (as listed), making it adaptable for advanced builds and upgrades in India.
- Built for lower heat generation compared to similar-class drivers, with an onboard fan header for easier active cooling.
- Helps reduce motor jitter and can improve reliability by reducing missed steps when tuned correctly.
Features
- 8 high-power MOSFETs with 100V resistance rating, 93A current rating, and ~6mΩ low resistance (listed) for stronger drive performance
- Max voltage support: 60V
- Current capability: 10.6A IRMS, 15A sine peak
- Selectable modes: StealthChop / SpreadCycle
- Selectable control: SPI and other selectable modes (as listed)
- Lower heat generation + strong performance vs similar drivers
- Tested with larger motors like 36/42/57/86 frame sizes (as listed)
- ESD protection on power/logic for better durability
- 24V always-on fan interface for active cooling support
Specifications
- Product: BIGTREETECH TMC5160T Plus
- Drive Chip: TMC5160-TA

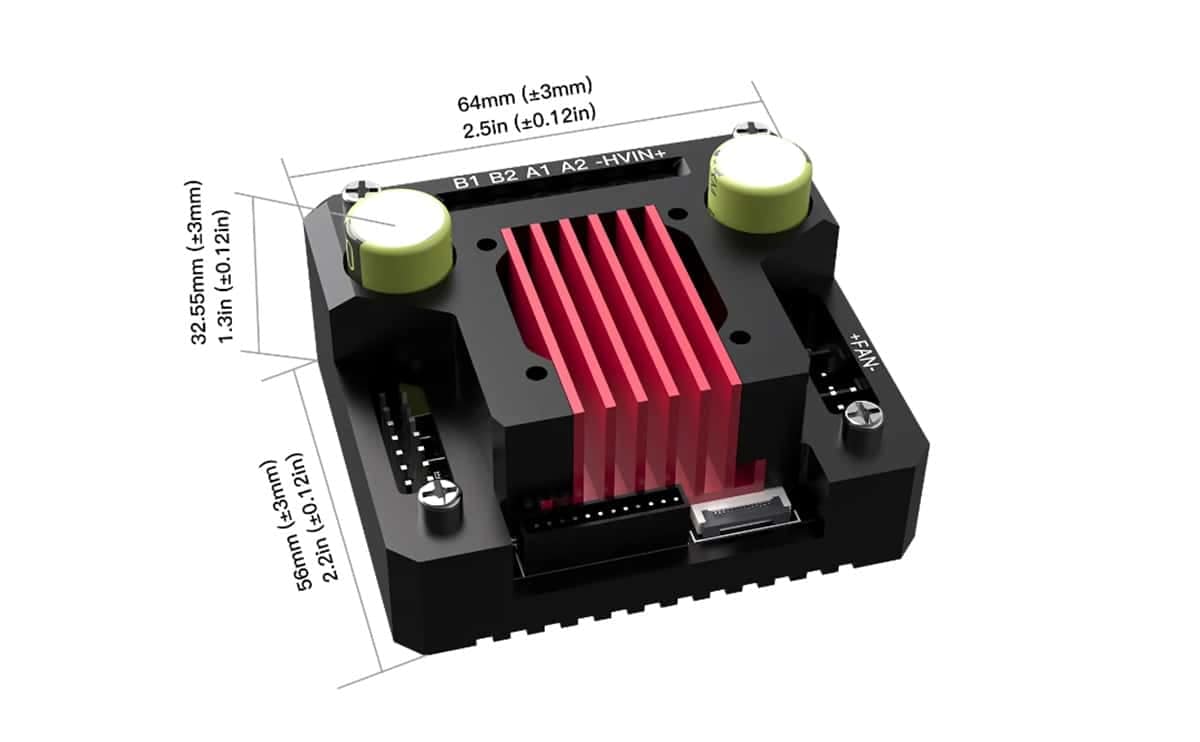

- Dimensions: 64 × 56 × 32.55 mm
- Input Voltage (HVIN): 8V–60V
- Max Effective Current: 10.6A IRMS
- Peak Current: 15A (sine wave peak)
- Capacitors: 2 × 560µF
- Max Microstepping: 256
- Operating Mode: SPI, SD (as listed)
- Sampling Resistor: 22mΩ
Applications
- High-torque 3D printer axes (large-format printers, heavy gantries)
- CNC and automation builds needing high voltage/current stepper drive
- Upgrades for larger NEMA motors where standard drivers are underpowered
- Motion systems where reduced missed steps and smoother torque are critical

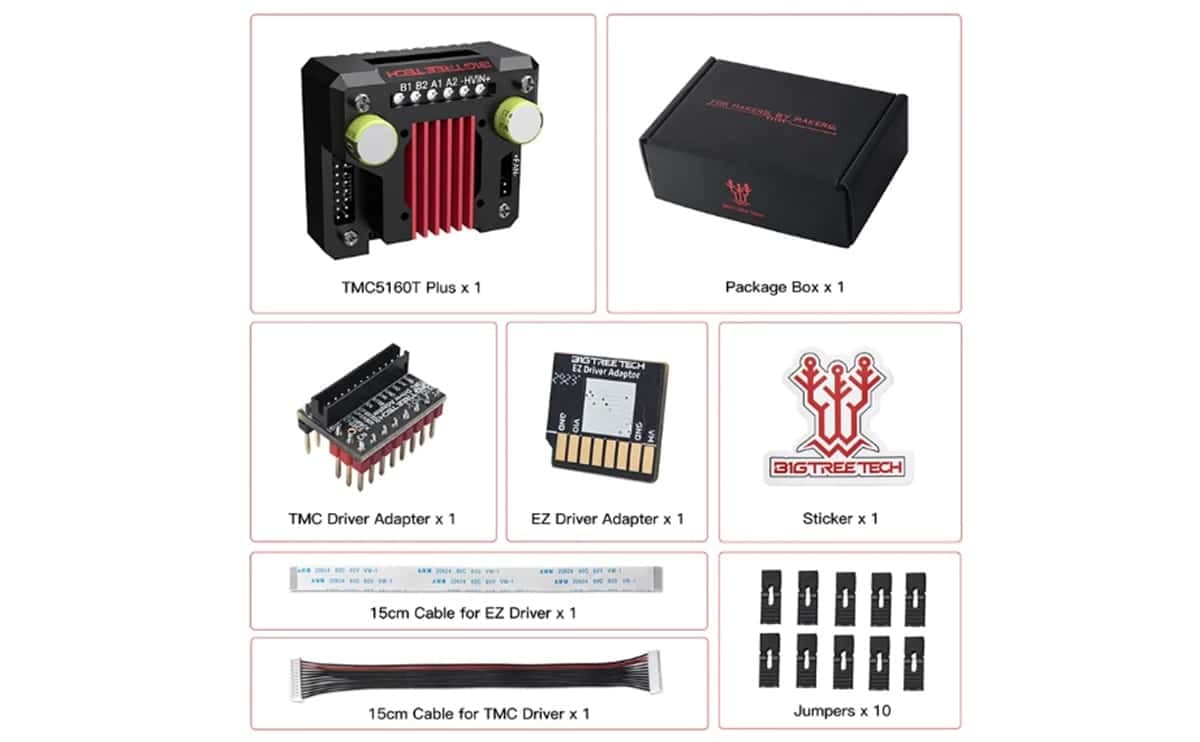

Package Include
- 1 piece of TMC5160T plus driver TMC driver.
| Weight | 150 g |
|---|---|
| HSN code | 8477 |
