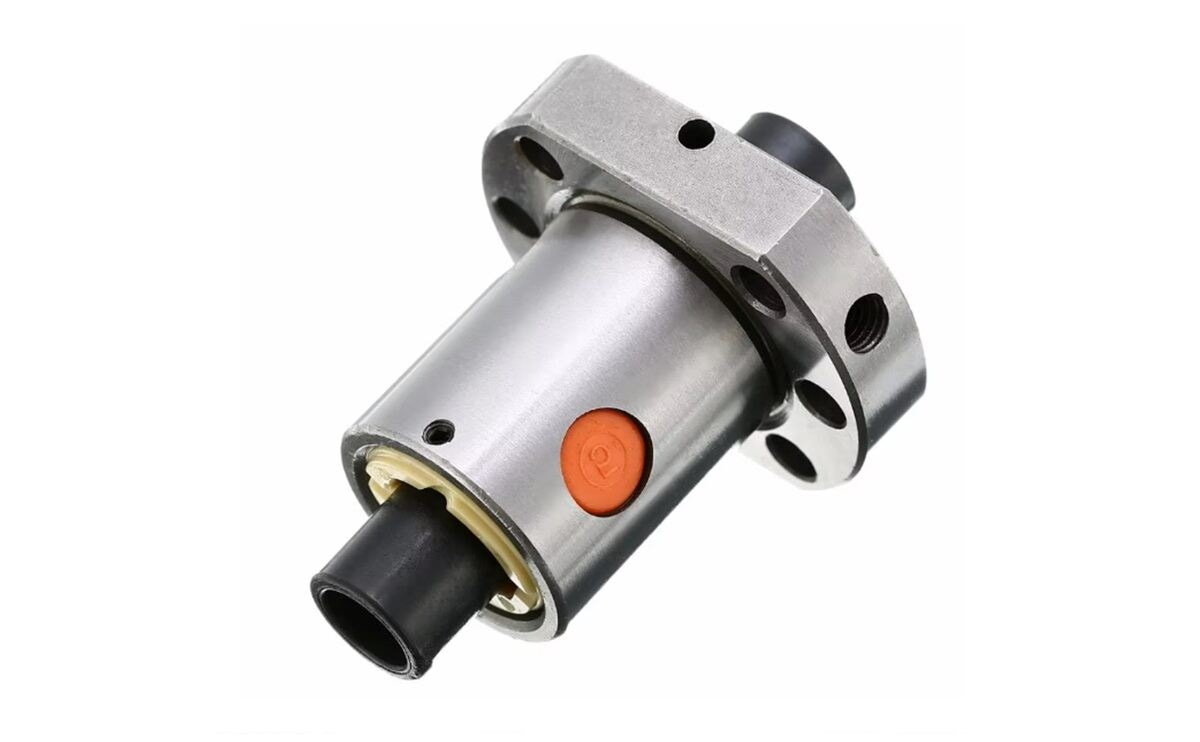

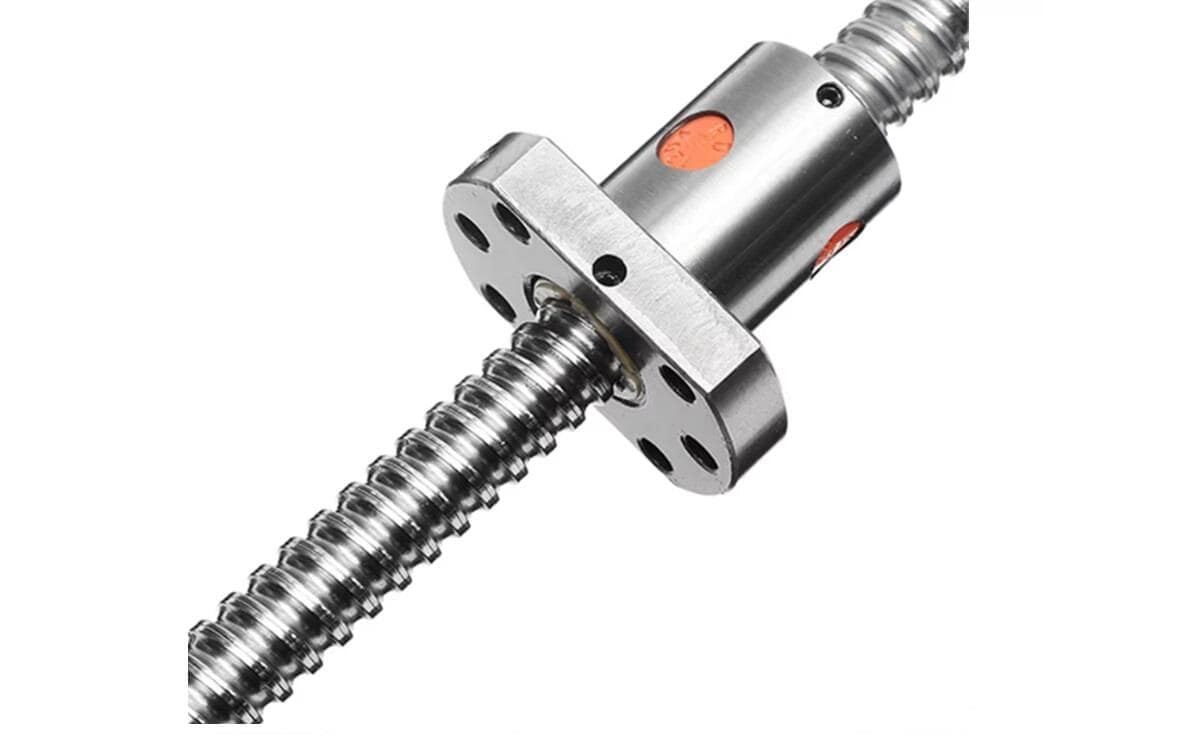

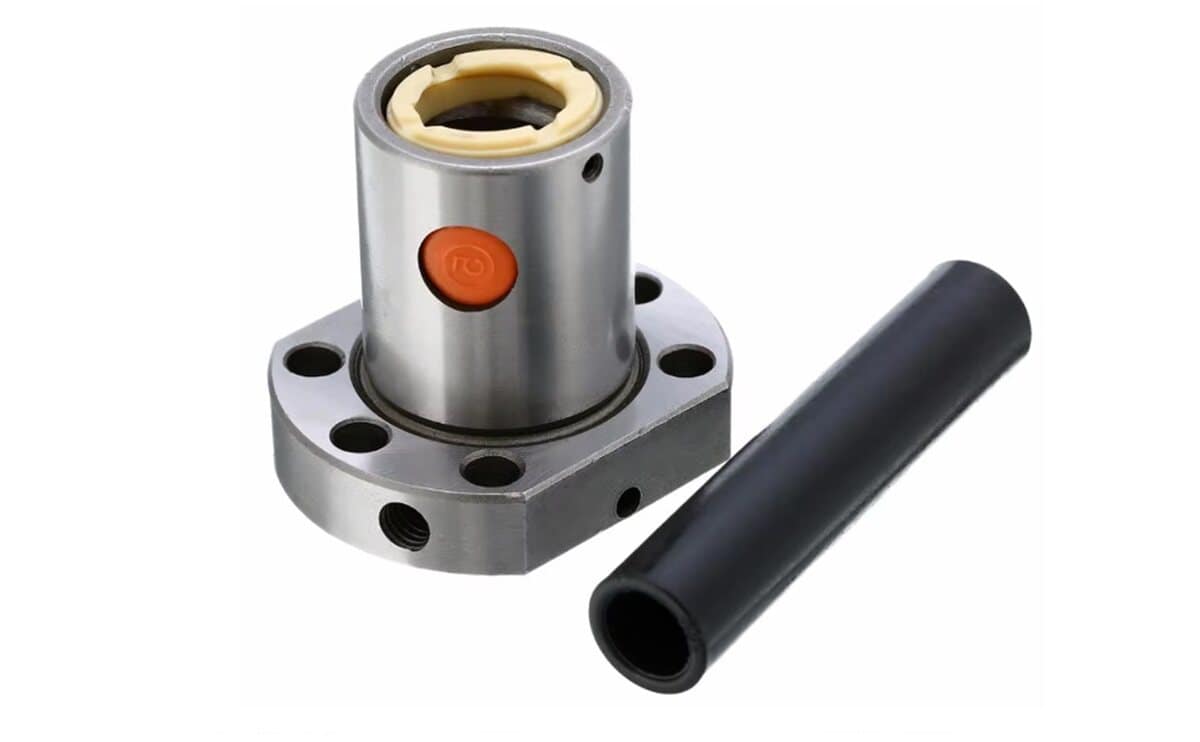

Ball Screw Nut SFU1610 (16mm Dia 10mm Pitch) Ball Screw Single Nut for 1610 Nut Housing CNC Machine Parts

SFU1610 Ball Screw Nut 16mm Dia, 10mm Lead Preloaded Single Ball Nut for 1610 Nut Housing CNC Parts

Theball screw nut SFU1610, characterized by a diameter of 16mm and a pitch of 10mm, is essential for precision in CNC machine parts.

• SFU1610 ball screw nut for accurate, repeatable motion in precision machines. This preloaded ball screw nut reduces backlash (play) between the nut and screw, helping improve positioning accuracy and surface finish in CNC and automation applications.
• Precision ball bearings inside the nut provide smooth travel, reduced friction, and lower wear over long operating cycles.
• Manufactured from high-strength alloy steel (often coated for corrosion resistance), the SFU1610 nut is designed for demanding environments and continuous operation.
• It is compatible with standard ball screw mounting systems, making integration straightforward in CNC axes, linear actuators, robotics slides, and high-speed automation assemblies 16mm ball screw nut.

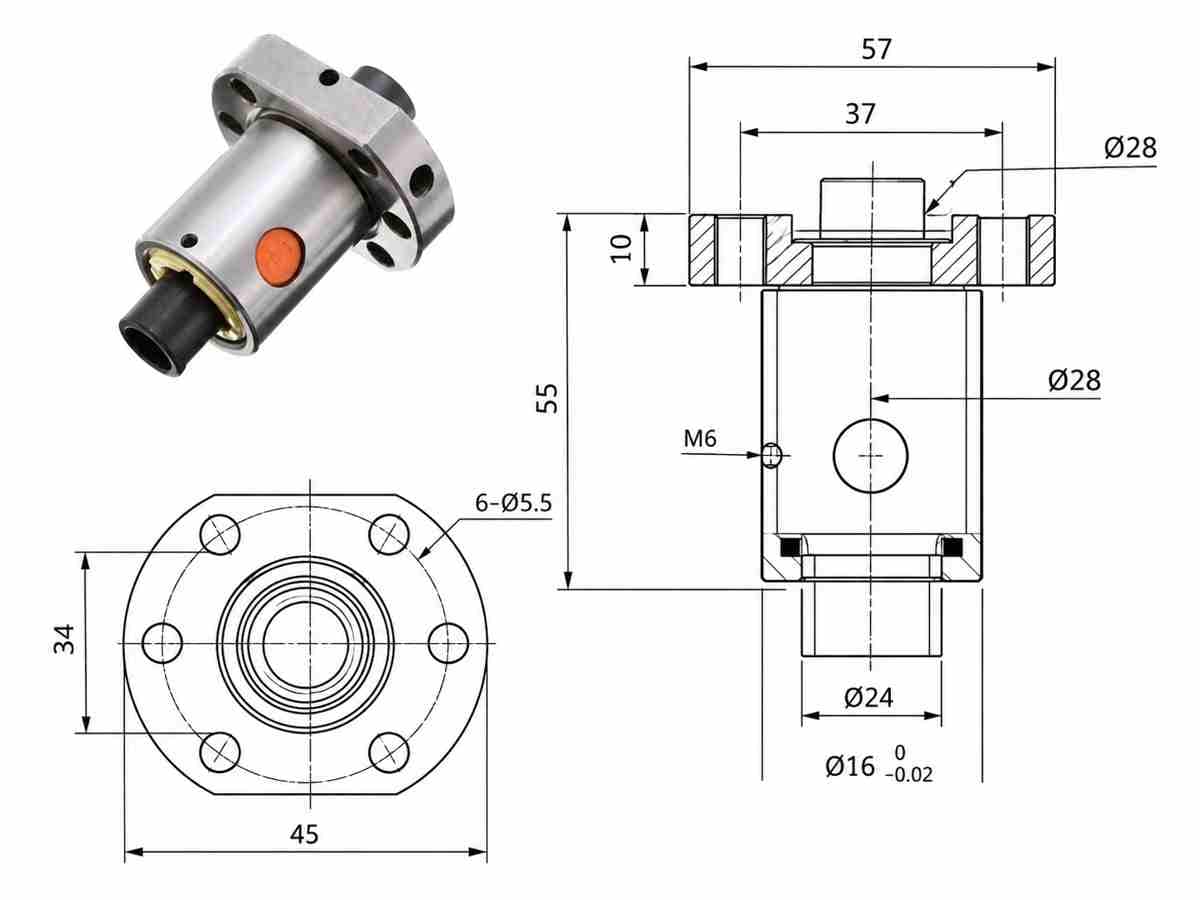

Specifications

• Model: SFU1610
• Nut type: Preloaded ball screw nut (single)
• Compatible screw diameter: 16mm
• Lead/Pitch: 10mm (travel per rotation)
• Material: High-strength alloy steel (typically coated)
• Nut OD: ~24mm (standard SFU1610 size)
• Nut length: ~40–45mm
• Backlash: Preloaded to minimize backlash
• Ball type: Precision ball bearings (low friction, wear resistant)
• Lubrication: Grease or oil
• Operating temperature: approx. -20°C to +80°C

features

• High precision & repeatability: preloaded design minimizes backlash
• Smooth operation: ball bearings reduce friction for efficient motion
• Durable alloy steel: wear-resistant, long service life
• Standard compatibility: fits SFU1610 screws and 1610 nut housing
• Easy installation: works with common ball screw mounting systems
• Lubrication support: designed for grease or oil

Applications

• CNC machines: cutting, milling, engraving—precise axis positioning
• 3D printers: smooth bed/extruder movement for better print quality
• Robotics: accurate linear motion for arms and automated assemblies
• Automation systems: linear actuators, packaging lines, positioning stages

Package Include

• 1 Piece of SFU1610 Ball screw nut.
