Stepper Motor and Driver, All Products
Stepper motor with leadscrew Nema17 T8 lead screw Length 300mm 400mm 500mm lead screw with circle nut
Availability:
In stock
Nema17 stepper motor with T8 leadscrew designed for precise 3D printer movement. Available in 300/400/500 mm lengths with 8 mm diameter, 2 mm pitch, and a square thread. Includes a circle nut and connecting wire for a ready-to-install package. Delivers 4.2 Kg-cm torque and 1.8° step angle, suitable for extruder or bed axis applications. Compact and durable, compatible with 5–8 mm flexible couplings; weight about 500 g.
- Nema17 stepper motor with T8 leadscrew (8 mm diameter)

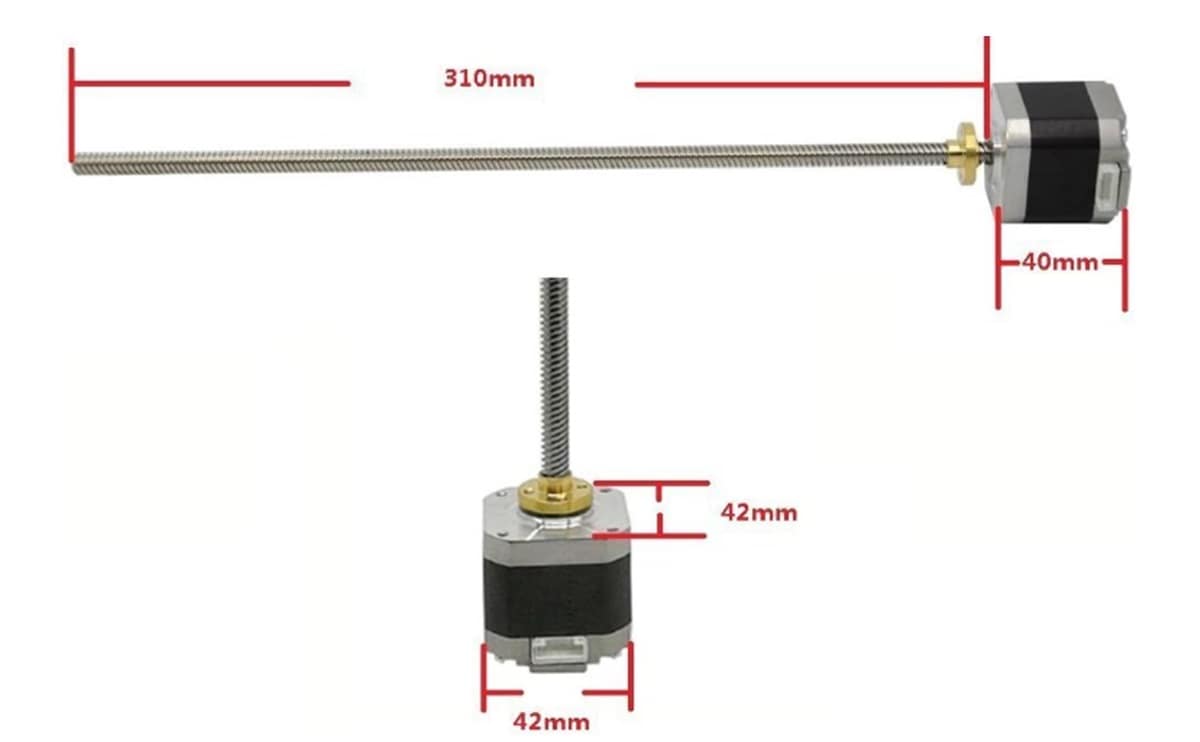

- Lead screw lengths: 300 mm, 400 mm, or 500 mm; 2 mm pitch; square/ACME thread

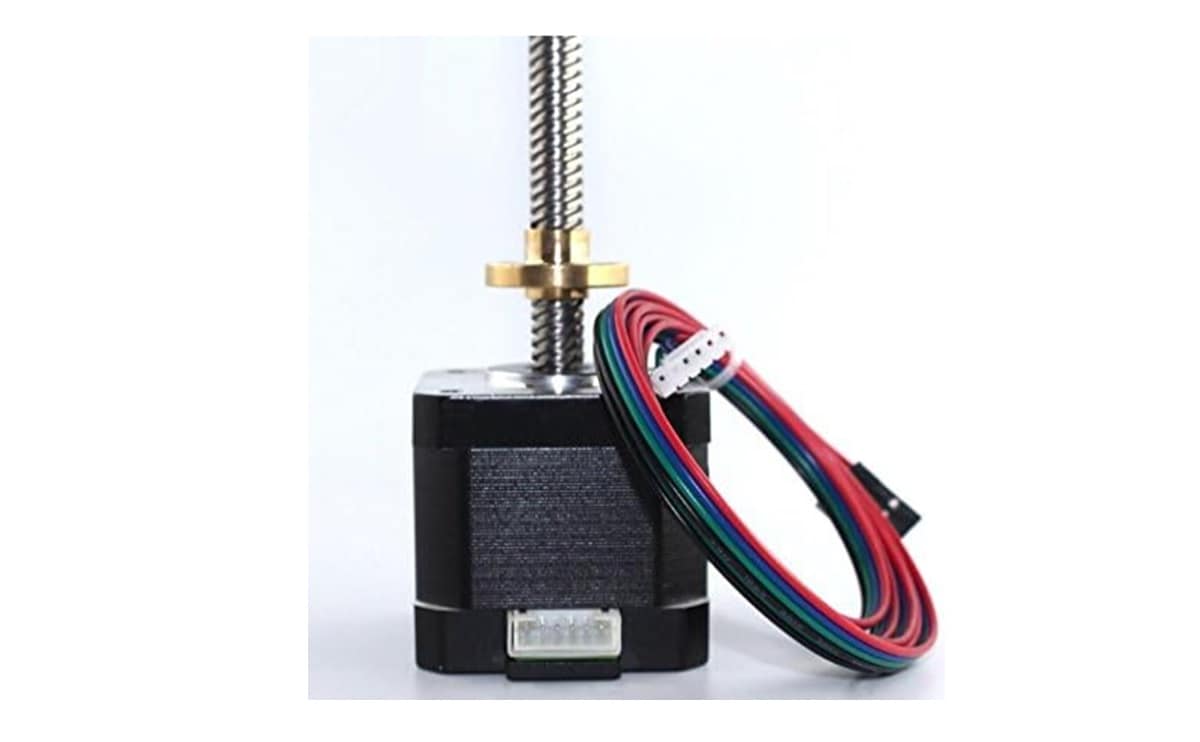

- Includes circle nut and connecting wire; ready-to-install package
- Torque: 4.2 Kg-cm; Step angle: 1.8 degrees per step

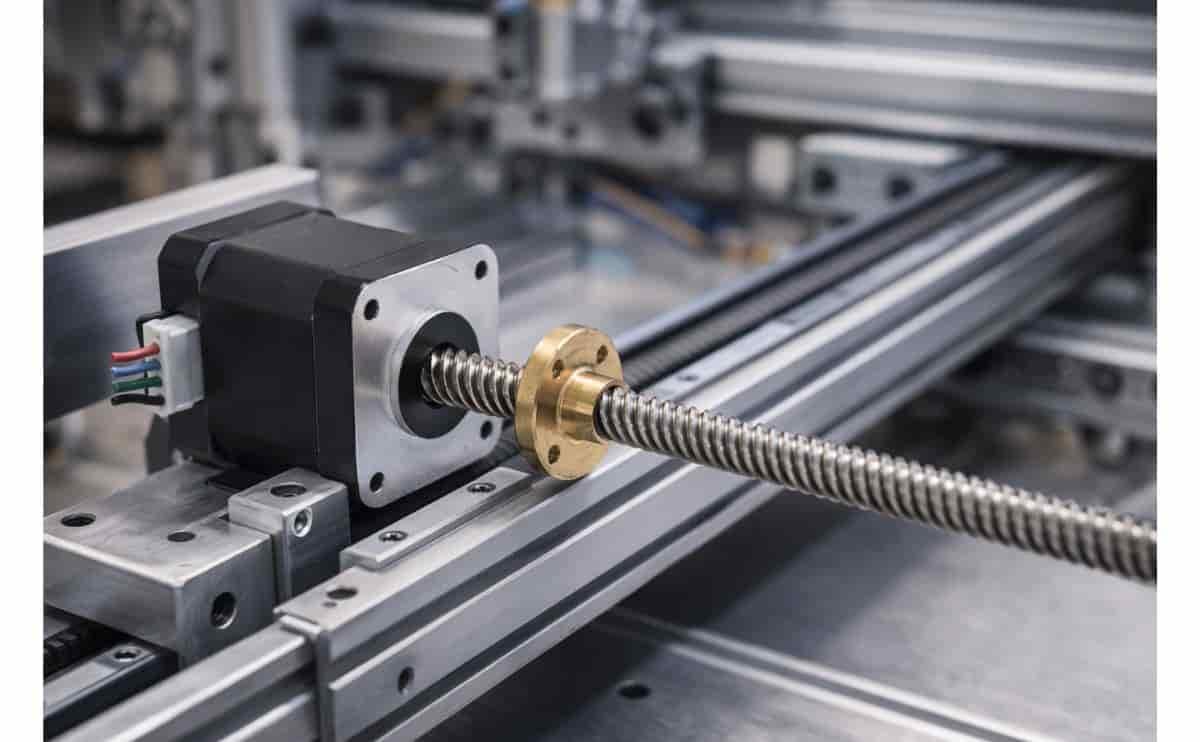

- Suitable for 3D printers for extruder or print bed movement
- Compatible with 5–8 mm flexible couplings; total weight ~500 g
Price range: ₹1,409.00 through ₹1,529.00
Tell us what you need and we’ll help you source it.
Stepper motor with leadscrew Nema17 T8 lead screw Length 300mm 400mm 500mm lead screw with circle nut
Stepper motor with leadscrew Nema17 T8 lead screw Length 300mm 400mm 500mm lead screw with circle nut
- The Stepper Motor with Leadscrew is a high-quality component designed for precision movement in 3D printers. This particular model, the Nema17 T8 Lead Screw, comes with a length of 300mm,400mm and includes a circle nut and connecting wire, making it a complete and convenient package for your 3D printing needs.
- One of the key features of this stepper motor is its leadscrew mechanism. The leadscrew, also known as a power screw or translation screw, is a threaded rod that converts rotational motion into linear motion.
- Stepper motor and driver enables precise and controlled movement of the 3D printer’s extruder or print bed, ensuring accurate and detailed prints.
- The Nema17 stepper T8 lead screw has a diameter of 8mm, providing stability and durability for long-term use. The circle nut, which is included in the package, helps to secure the leadscrew in place and prevent any unwanted movement or backlash.
- With its compact size and powerful performance, this stepper motor is suitable for a wide range of 3D printing applications. Whether you are a hobbyist or a professional, this component can be seamlessly integrated into your 3D printer setup.
| Weight | 500 g |
|---|---|
| HSN code | 8477 |
| Length | 300mm lead screw, 400mm lead screw, 500mm lead screw |
3 reviews for Stepper motor with leadscrew Nema17 T8 lead screw Length 300mm 400mm 500mm lead screw with circle nut
1-3 of 3 reviews
Add a review
You must be logged in to post a review
Log In
Q & A
Ask a question
How much voltage is required to run the stepper motor?
Rated Voltage 3.3V DC
(0)
(0)
Add an answer
best suited stepper for voron trident
Delivery is very fast. Item packing is excellent. Product quality is also very good. Price is also very competitive. Robotics & 3d printers past inventory is exhaustive
