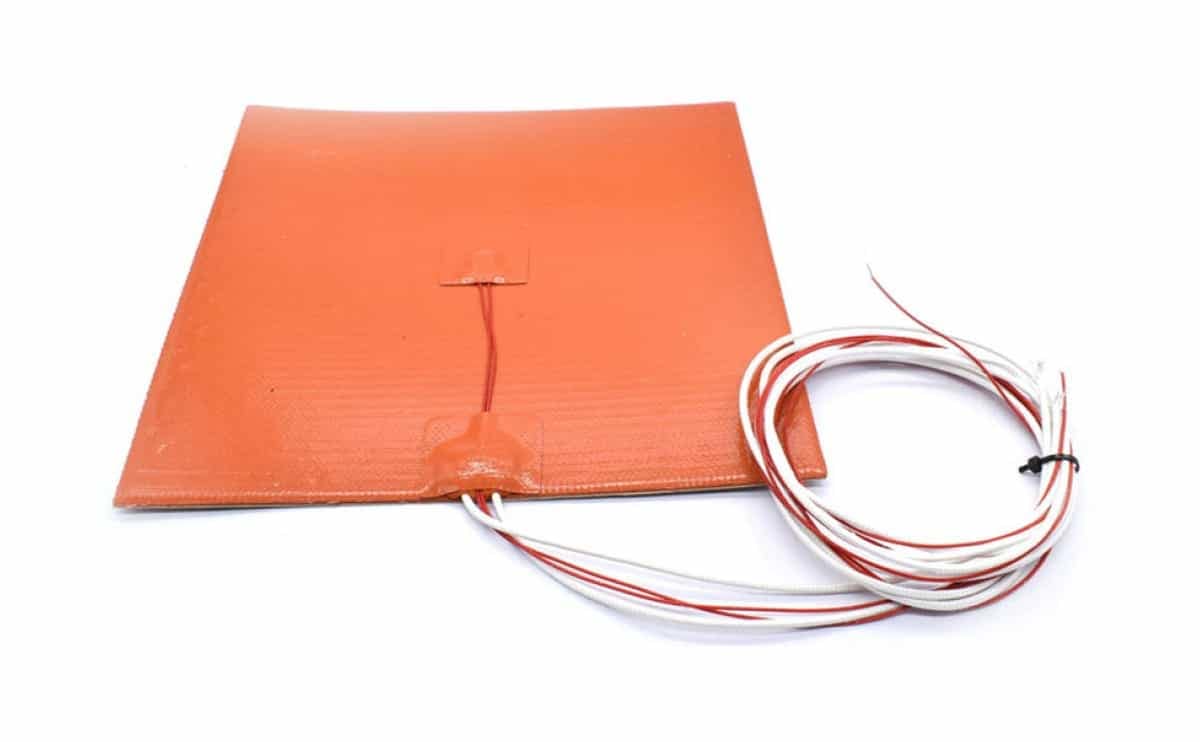

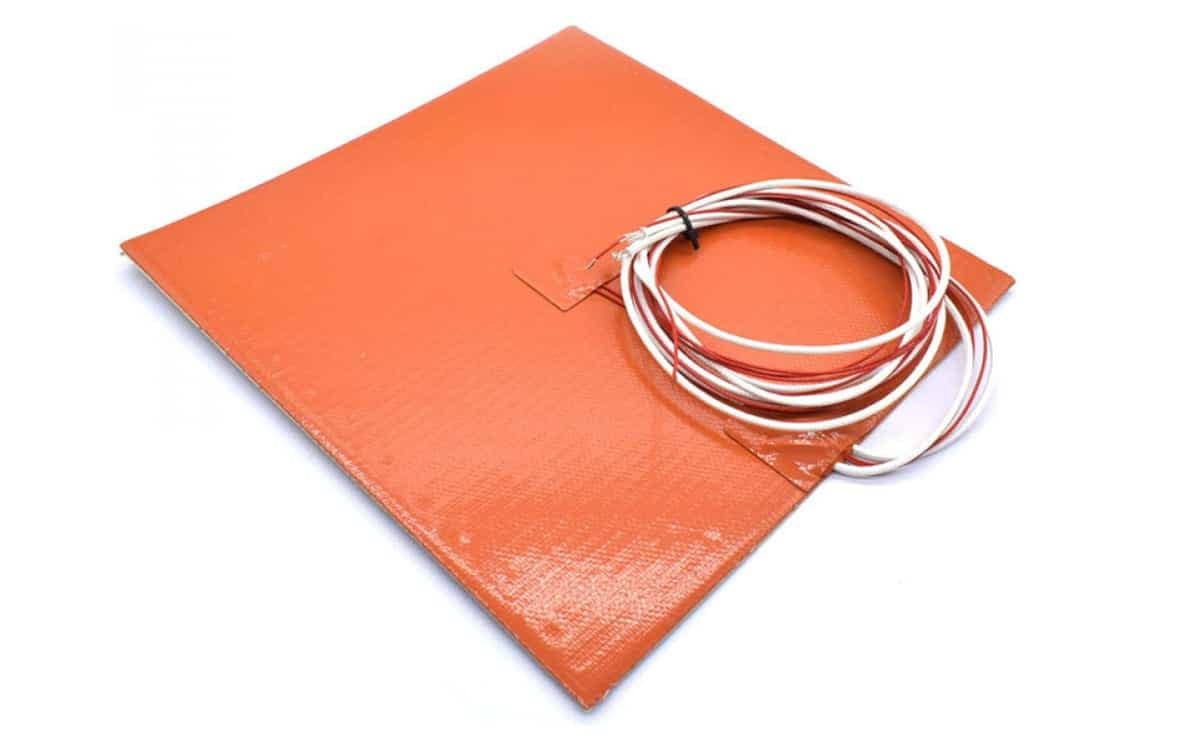

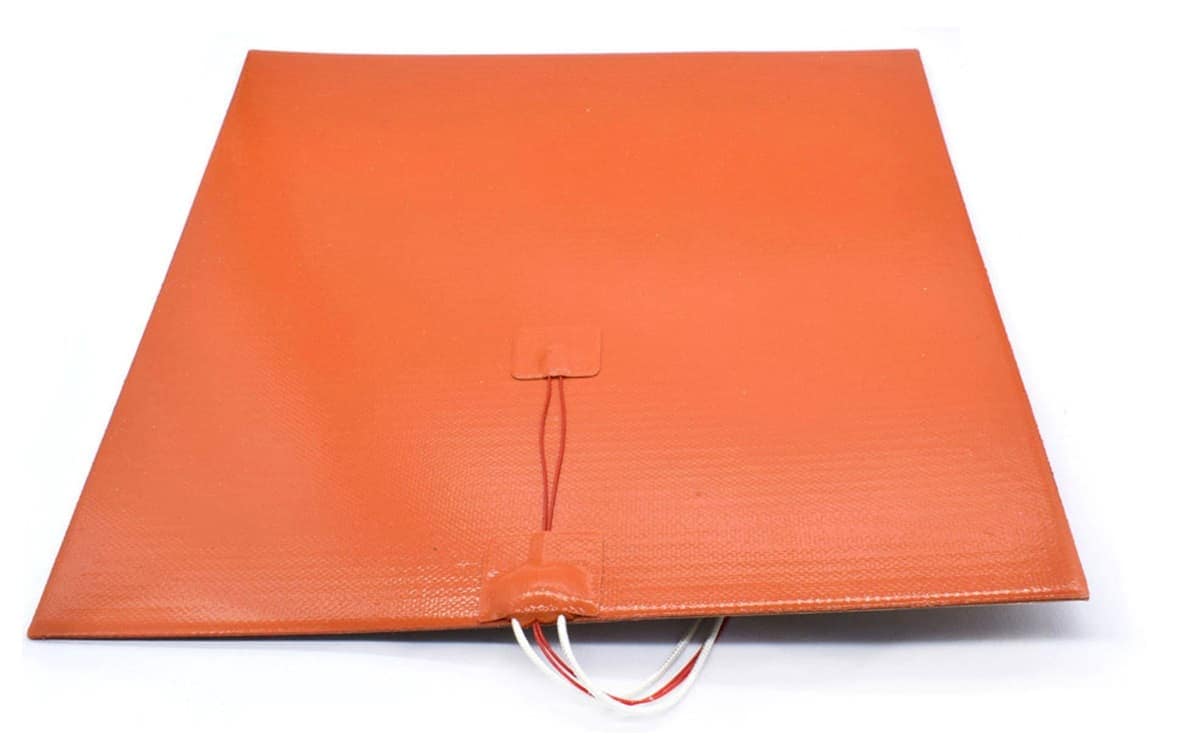

Silicone heating pad 300x300mm/400x400mm/500x500mm with PSA NTC 100K thermistor sensor for 3D printer
Availability:
In stock
Silicone heating pad for 3D printers in sizes 300×300, 400×400, or 500×500 mm, 230V AC. Includes PSA 100K NTC thermistor for precise temperature control and a 3M adhesive backing for easy mounting. The pad uses silicone rubber-coated fiberglass insulation, with options to integrate on-board thermistors, thermostats, or PT100 sensors, and supports various heating elements. Max operating temperature up to 260°C (500°F) with up to 5 W/cm² power density. Power ratings: 300×300 ≈ 500W, 400×400 ≈ 800W, 500×500 ≈ 1125W.
- Sizes: 300×300, 400×400, 500×500 mm at 230V AC
- Integrated PSA NTC 100K thermistor for temperature control

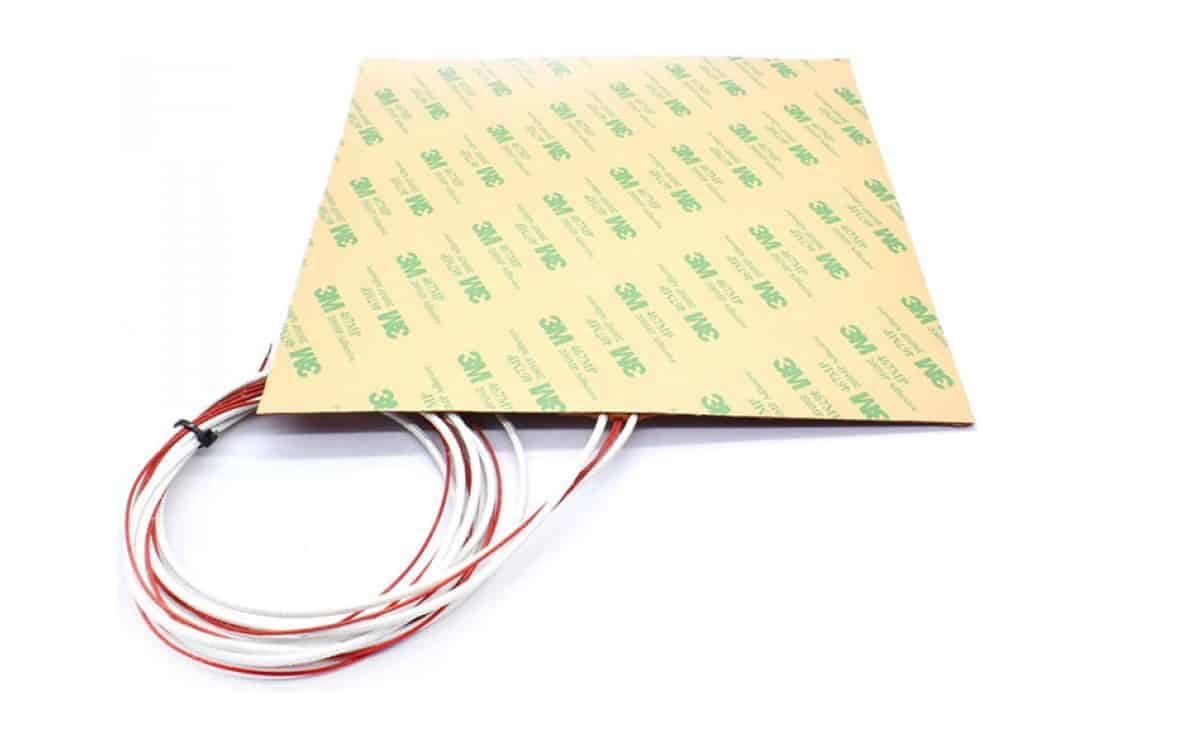

- 3M adhesive backing for easy mounting
- Max operating temperature up to 260°C (500°F)
- Power ratings by size: 300×300 = 500W (240V), 400×400 = 800W (230V), 500×500 = 1125W (230V)
- Silicone rubber-coated fiberglass insulation
- Heating element options: wire wound or etched foil
- Thermal management options: on-board thermal fuse, thermostat, thermistor and PT100; sensor placement options
Price range: ₹3,099.00 through ₹5,599.00
Tell us what you need and we’ll help you source it.
Silicone heating pad 300x300mm/400x400mm/500x500mm with PSA NTC 100K thermistor sensor for 3D printer
- Silicone heating pad 300x300mm/400x400mm/500x500mm with PSA NTC 100K thermistor sensor, Integrated with NTC 100K thermistor as temperature control sensor.
- 3M adhesive backing offers excellent and easy mounting onto most surfaces. Versatile and may be used in many other applications.
Silicone Heating pad:
- Durable and precise, silicone heat bed are available in a virtually unlimited range of configurations and geometry’s.
- Heatbedparts: Silicone rubber heaters provide highly efficient heat transfer over a wide temperature range.
- Group Lightweight and flexible, the heaters provide superior surface conformance that extends cheater life by minimizing the gradient between resistive element and heat sink.
- In addition, silicone rubber heaters are dimensionally stable and tear and chemical resistant.
- They can be designed with multiple heating, shielding and power levels.
- Thermostats can be incorporated in a heater for optimum response time and gradient control.
- Also, sensors can be laminated inside a heater, adhered to the heater surface, or installed at specific locations within the system to prevent over temperature.
Silicone Heater Technical Data Sheet:
- Supply Voltage: 0~400V.
- Silicone heating: 300*300mm, 500W, 240V
- Silicone heating: 300*300mm,750W, 220V
- Silicone heating: 400*400mm, 800W, 230V
- Silicone heating: 500*500mm, 1125W, 230V
- Insulation Material: Silicone Rubber Coated Fiberglass.
- Max. Operating Temperature: 260 Deg C or 500 Deg F.
- Max. Power Density: 5w/sq.cm depending on application
- Heating Elements: Wire Wound or Etched Foil.
- Resistance Tolerance: about +/- 5%.
- Thickness: 1.5mm.
- Flammability: Flame retardant.
- Thermal Protection: On board thermal fuse, thermostat, thermistor and PT100 are available as part of your thermal management solution.
- Power Leads: High temperature PTFE or Silicone insulation leads
Packages Include:
- 1 pcs of 300x300mm/400*400mm/500*500mm silicone heating pads
| Weight | N/A |
|---|---|
| Size | 300x300mm,500W, 300x300mm,750W, 400x400mm, 800W, 500x500mm, 1125W |
| HSN code | 8477 |
