SHF20 Horizontal Shaft Support Optical Axis Bracket for 3D Printer

SHF20 Horizontal Shaft Support Optical Axis Bracket for 3D Printer

SHF20 Horizontal Shaft Support Optical Axis Bracket for 3D Printer

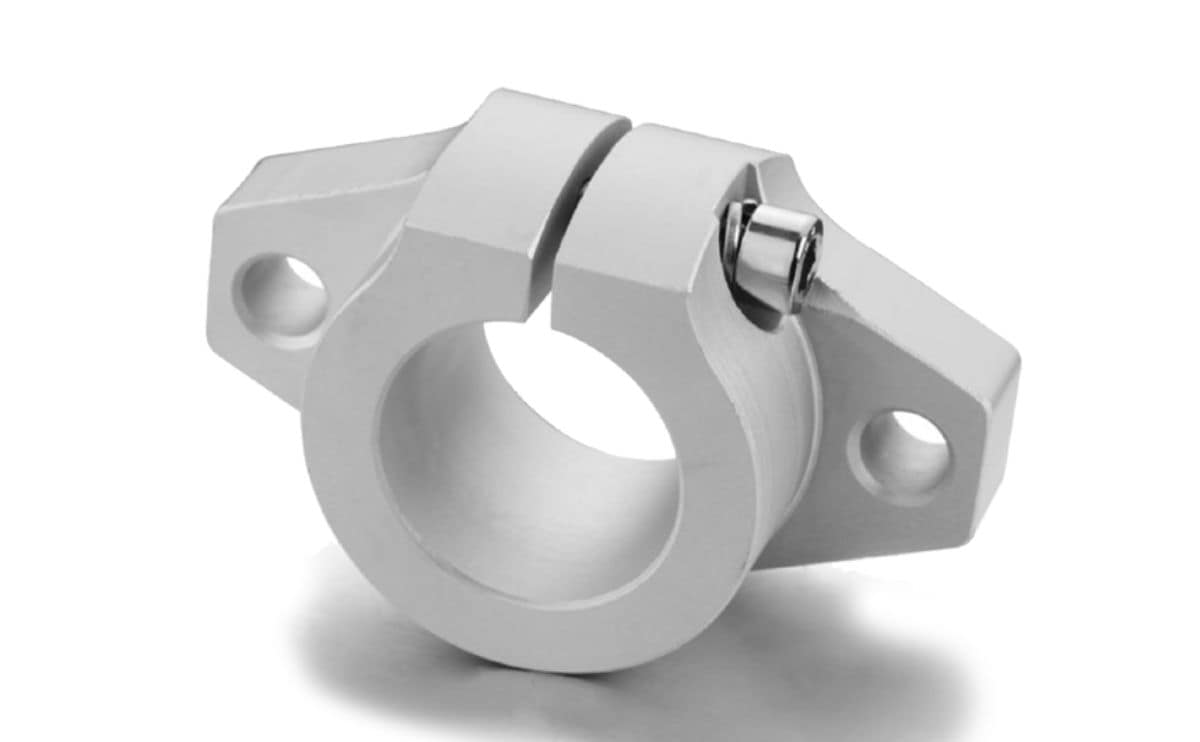

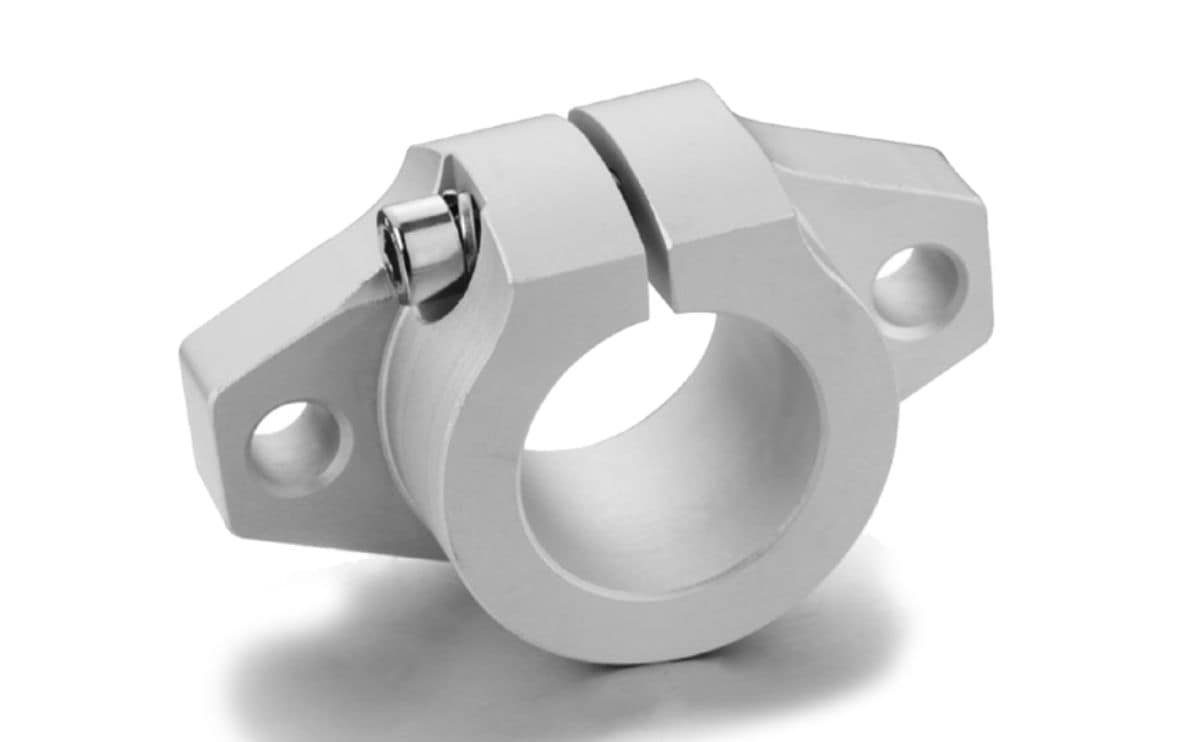

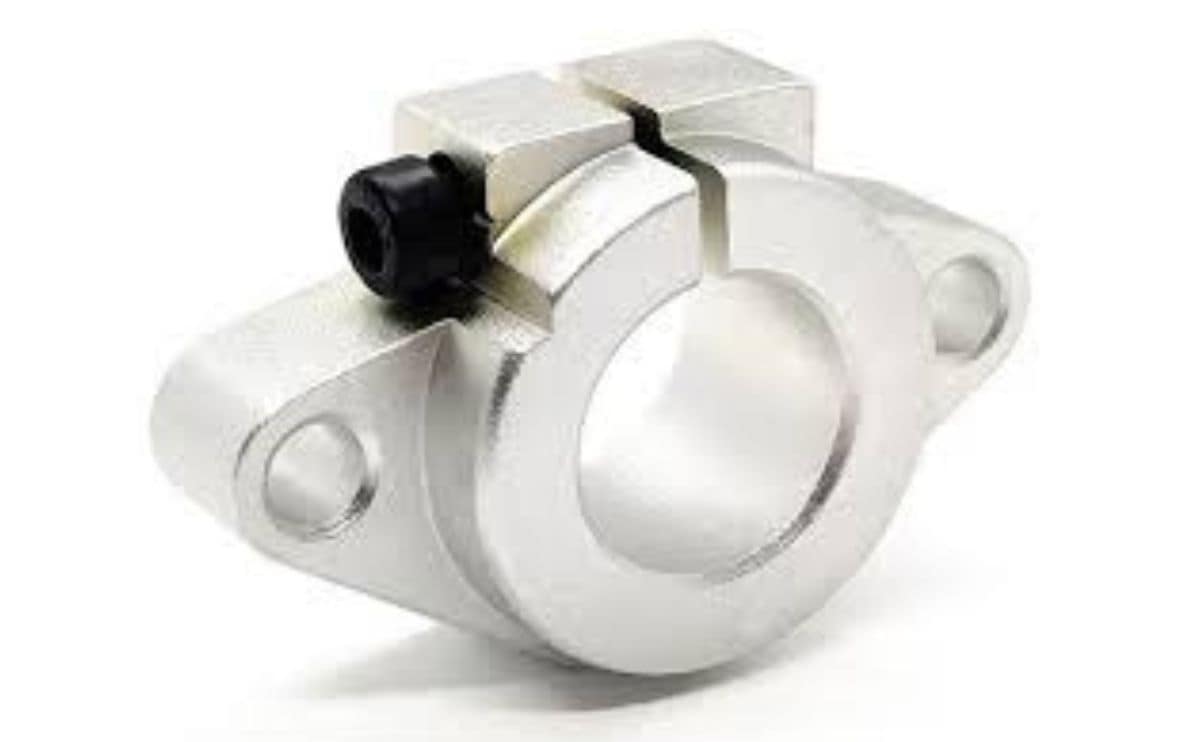

• Optical Axis Bracket SHF20 is a precision aluminum shaft support designed for 20mm linear rods, offering rigid mounting.
• High stability, and smooth linear motion Bearing control for CNC machines, 3D printers, and automation equipment.
• Commonly used in CNC routers, 3D printer Machine, engraving machines, linear automation systems, robotics, and industrial equipment.
• This bracket ensures stable and smooth motion performance. The clamp-style design allows easy shaft installation or removal without disturbing the entire assembly.

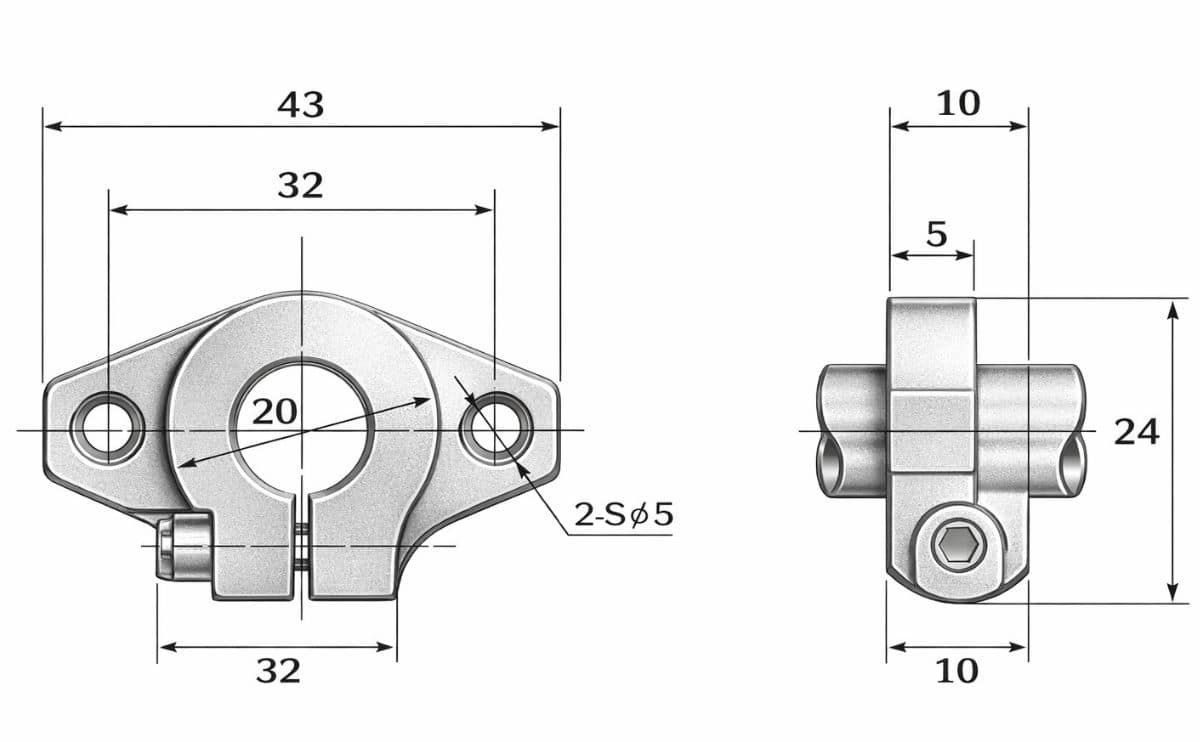

Specification

• Bore Diameter: 20mm
• Outer Width: ~30–32mm
• Bracket Height: ~20–23mm
• Mounting Hole Pitch: ~26–28mm
• Hole Diameter: ~5–6mm
• Overall Length: ~42–45mm

Features

• Perfect for 20mm optical shafts
• Aluminum alloy body for strength and corrosion resistance
• Clamp-style design ensures strong grip and easy installation
• High-precision machining for accurate shaft alignment
• Pre-drilled mounting holes for quick assembly
• Minimizes vibration for smoother linear motion
• Compatible with CNC, 3D printers, robotics & automation machines

Applications

• 3D Printer X/Y/Z axis linear rod support
• CNC router and milling machine assemblies
• Automation and robotic arm mechanisms
• Linear motion slides and guide rails
• Industrial machinery alignment
• DIY mechanical projects requiring linear shafts

Package Includes

• 1 piece of SHF20 Horizontal Shaft Support
