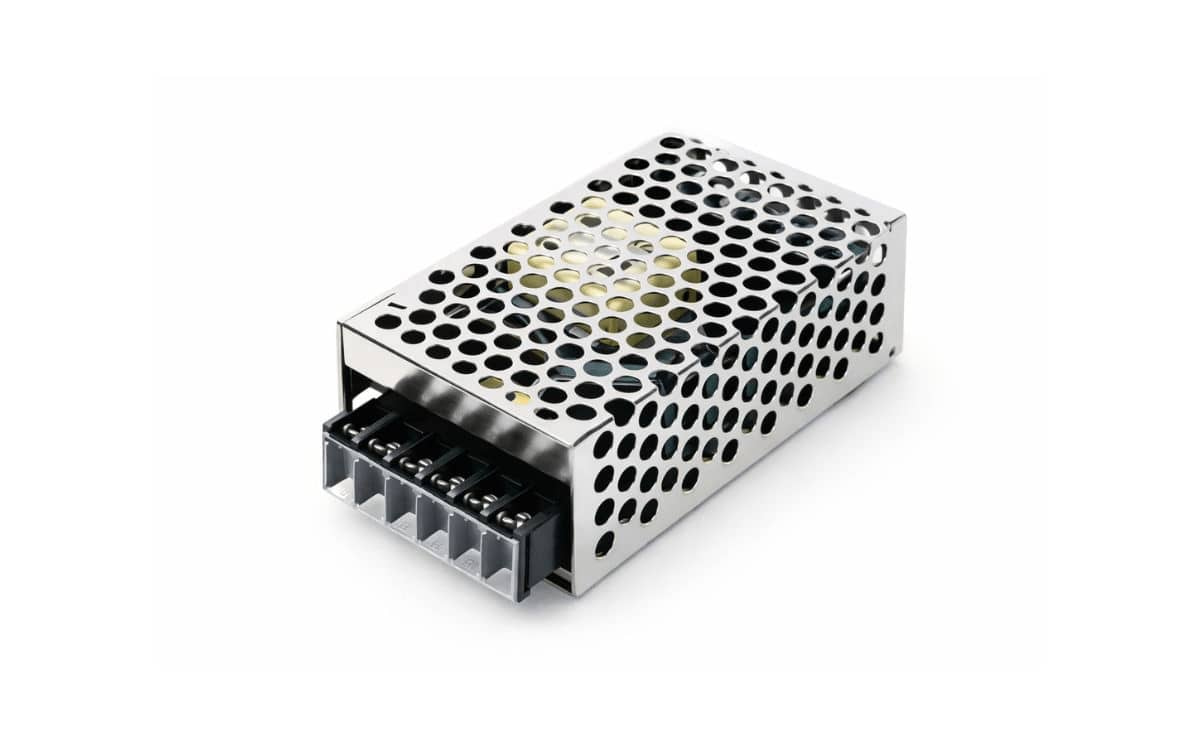

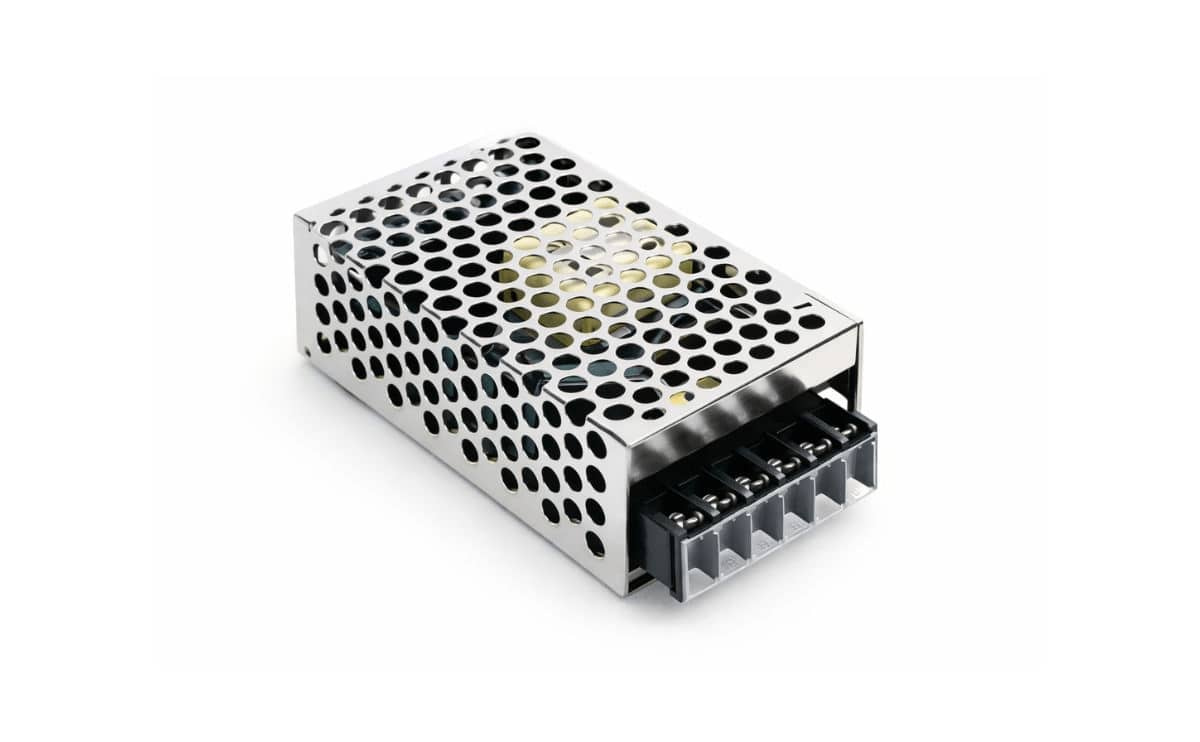

• Mean Well RS 25 Series 25W Single Output Switching Power Supply (3.3V/5V/12V/15V/24V) AC-DC SMPS is a compact, enclosure-ready AC-DC power converter built for stable DC output in electronics and automation.
• This RS 25 series switching power supply is commonly used where a reliable single output power supply is needed for control circuits, sensors, relays, LED loads, and small DC systems.
• The 25W SMPS format is suitable for continuous-use installations inside electrical enclosures, panels, and machine cabinets with proper ventilation.

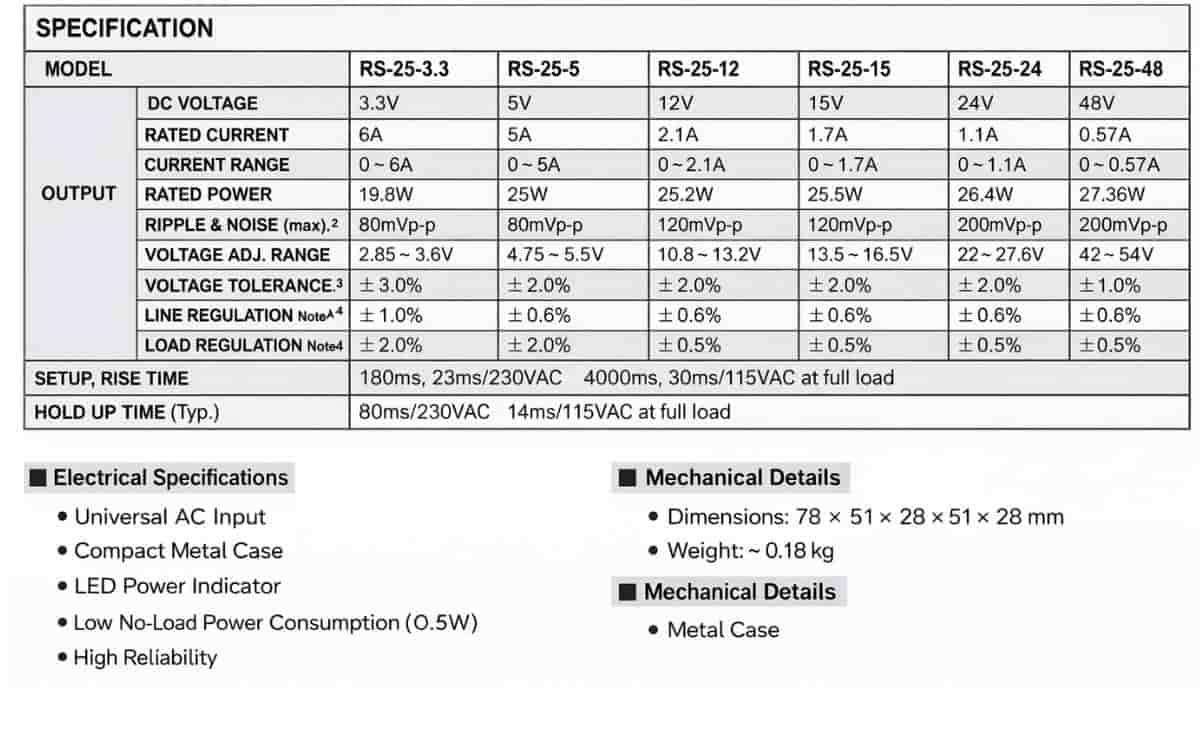

Specifications

• Power: 25W
• Output voltage: 3.3V / 5V / 12V / 15V / 24V
• Input voltage: 88–264VAC / 125–373VDC
• Output current: up to 6A (model dependent)
• Efficiency: up to 86%
• Frequency range: 47–63Hz

Features

• Compact RS 25 series switching power supply body for tight panels and control boxes
• Single output power supply design for stable DC powering in dedicated circuits
• Wide input range for flexible installation on different mains supplies
• Dependable AC-DC SMPS power supply operation for long run-times in automation and electronics

 Benefits

• Helps protect DC devices by providing regulated power compared to basic adapters
• Reduces wiring clutter in panels versus multiple plug adapters
• Suitable for powering systems that run for long hours when installed with correct airflow and grounding

How to Choose the Right Output Voltage

• 3.3V: logic circuits, some microcontroller boards (only if your device specifically requires 3.3V input)
• 5V: USB-powered devices, development boards, sensors, small controllers
• 12V: fans, small motors/relays, LED strips (12V), some 3D printer accessories
• 15V: select electronics and industrial devices that specify 15V DC input
• 24V: industrial sensors, solenoids, relays, 24V LED systems, automation components
  Always match your load’s voltage requirement and keep total wattage within 25W.

Applications

• Control panels and industrial automation using RS 25 series switching power supply
• LED strip/modules DC power setups (correct voltage variant required)
• CNC/robotics/electronics projects needing 25W single output power supply
• DIY power distribution inside electrical enclosures
• 3D printer accessories where a stable AC-DC SMPS power supply is required (correct voltage variant required)

Installation and Usage

• Confirm the correct 25W SMPS output voltage variant before wiring.
• Mount securely inside a ventilated enclosure; keep clearance for airflow.
• Connect AC input and DC output using proper wire gauge and insulation practices.
• Ensure earthing/grounding as required by your installation standard.

Package Includes

• 1 Piece Of Mean Well RS-25 Series 25W
