BIGTREETECH PI4B Adapter V1.0 for CB1/CM4 Klipper Linux SBC Kit

PI4B adapter bigtreetech V1.0 for CB1 for motherboards used in 3D printer

PI4B adapter bigtreetech V1.0 for CB1 for motherboards used in 3D printer

• BIGTREETECH PI4B Adapter V1.0 for CB1 is a compact host platform made to run Klipper for 3D printers using BIGTREETECH and other compatible 3D printer motherboards.

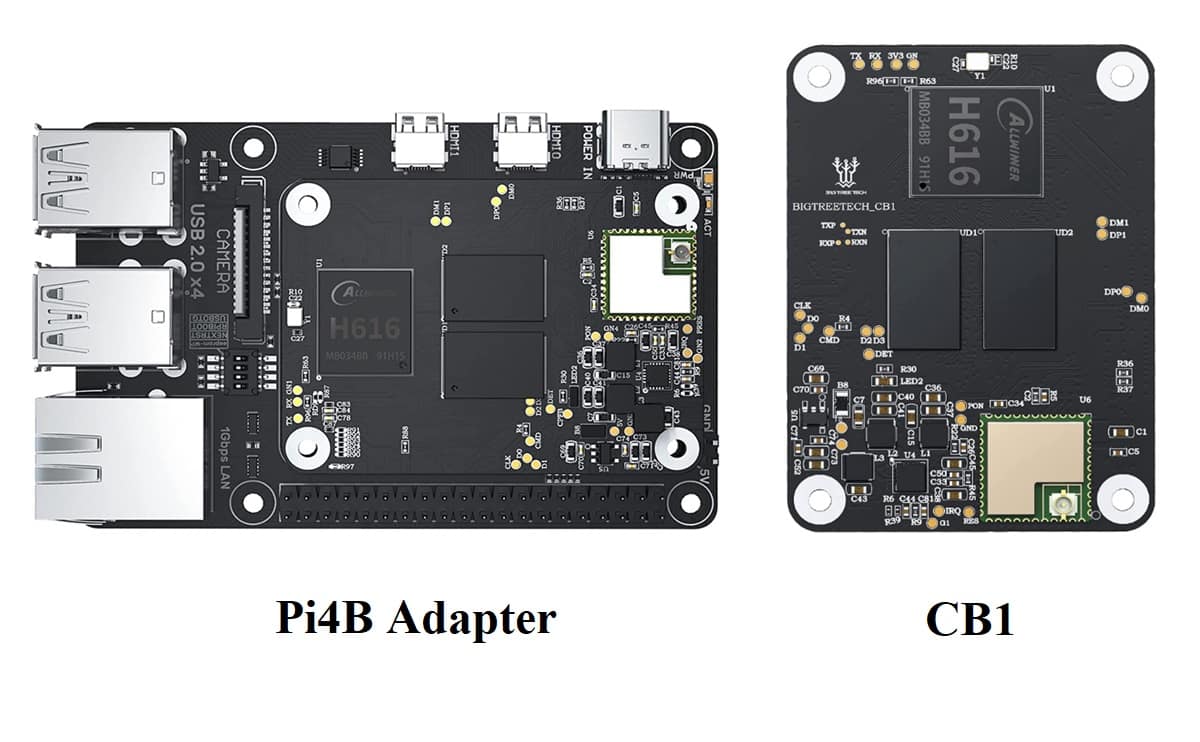

• It combines the PI4B Adapter V1.0 carrier board with the BIGTREETECH CB1 compute module, and it also supports Raspberry Pi CM4—so you can choose between CB1 affordability and CM4 compatibility for your build in India.
• At the core, the CB1 uses an Allwinner quad-core 64-bit ARM Cortex‑A53 @ 1.5GHz with 1GB DDR3 memory—strong enough to run Linux distributions like Debian for everyday printer hosting.
• This makes the PI4B + CB1 setup a practical alternative when Raspberry Pi boards are expensive or unavailable, while still providing the ports needed for screens, cameras, storage, and network access.

Specifications

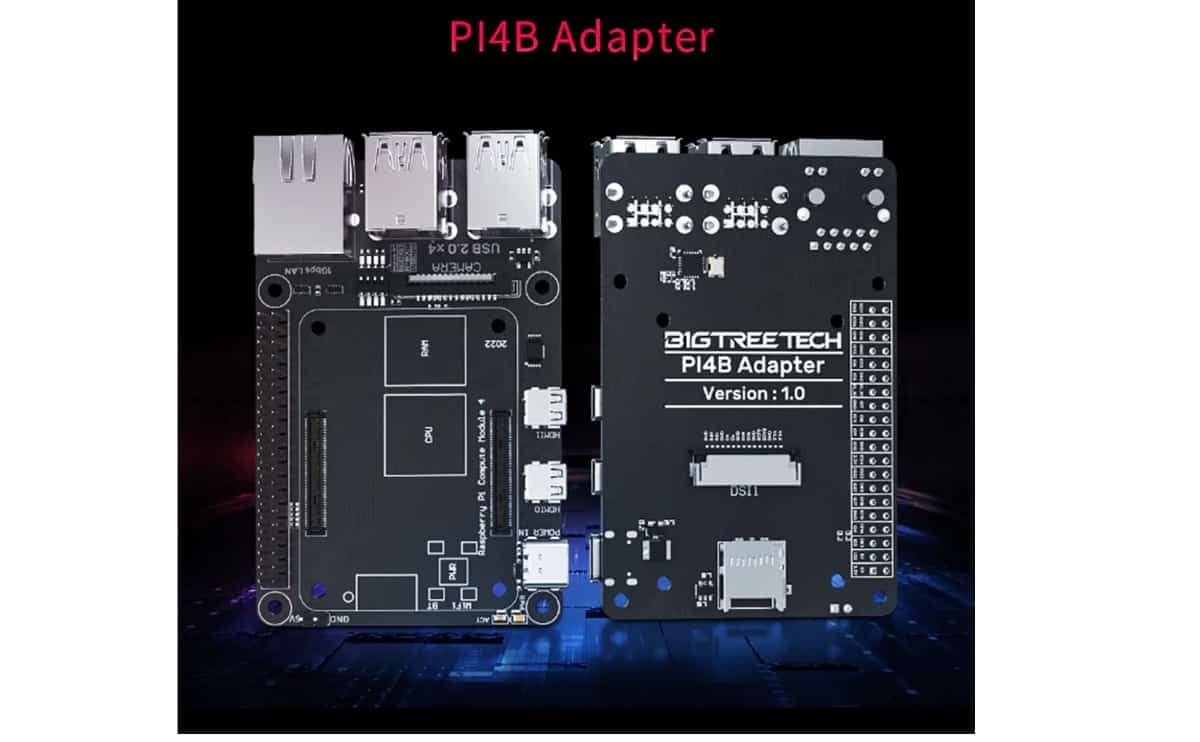

• PI4B Adapter V1.0
  • Power input: Type‑C 5V ±0.25V
  • Support: BIGTREETECH CB Series, all versions of Raspberry Pi CM4

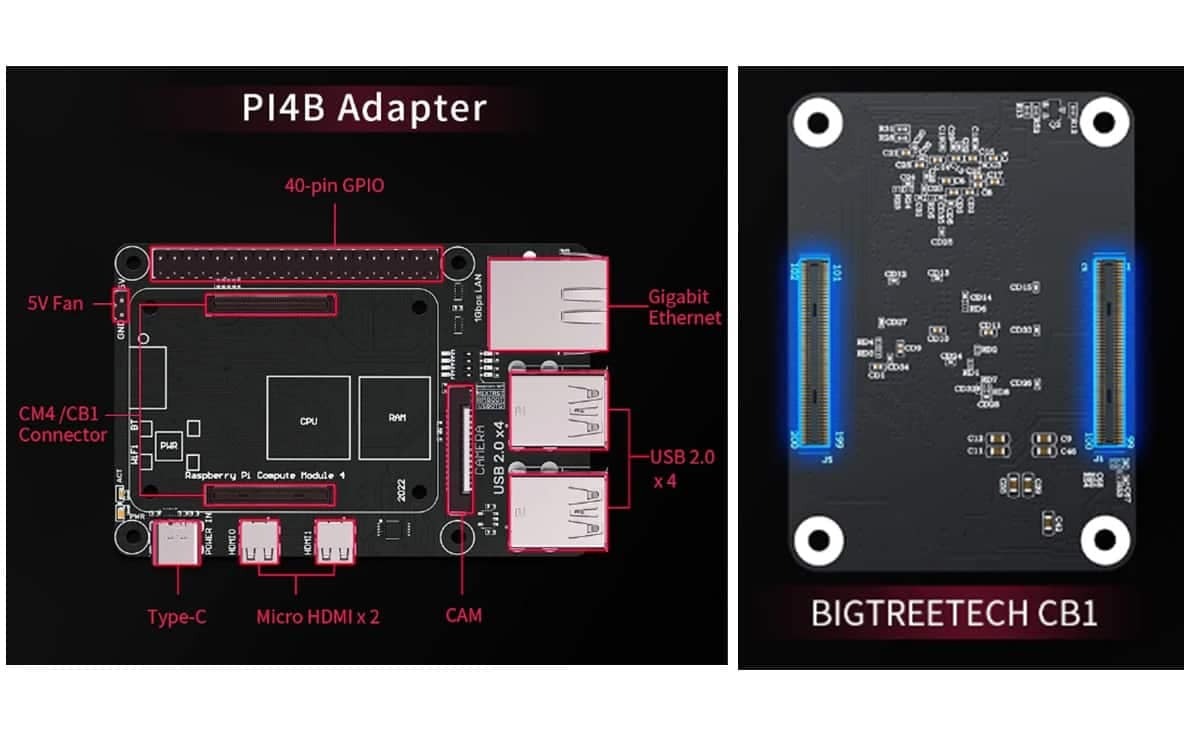

  • Interfaces: Micro HDMI ×2, USB 2.0 ×4, RJ45, DSI, CSI, Micro SD, etc.
  • GPIO: 40‑pin GPIO

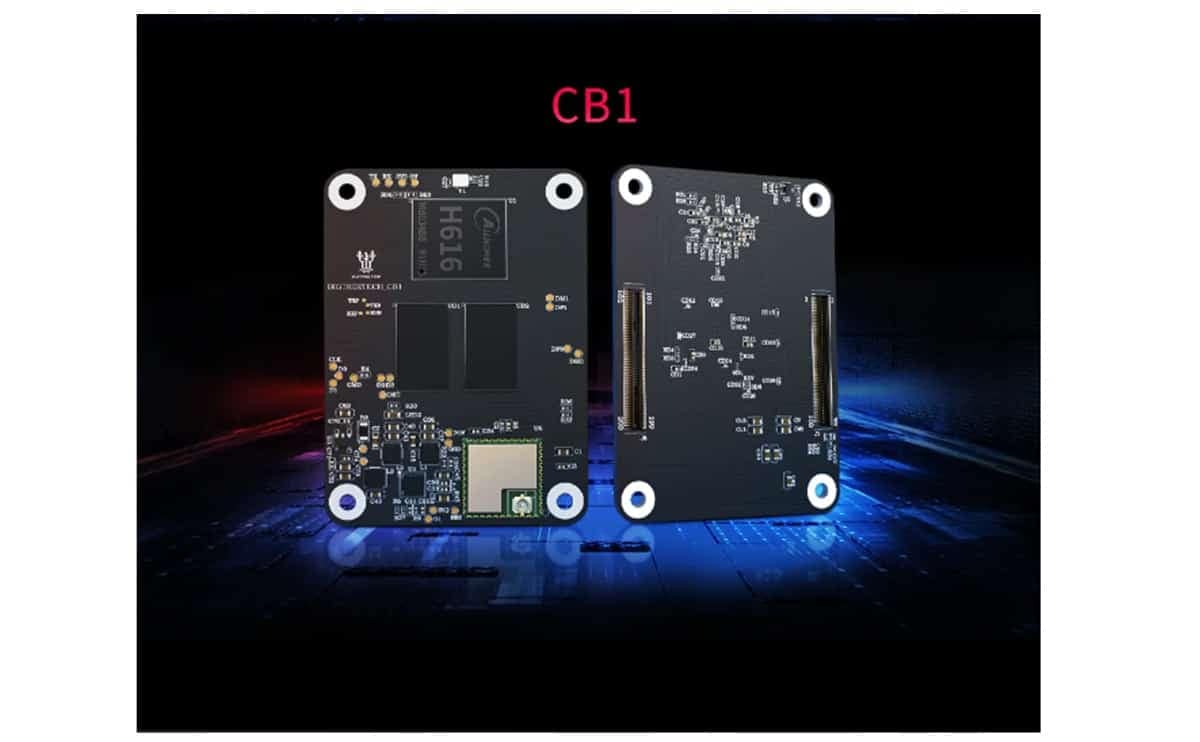

• CB1
  • CPU: Allwinner H616, quad-core Cortex‑A53 @ 1.5GHz
  • GPU: Mali G31 MP2, supports OpenGL 3.2
  • RAM: 1GB DDR3L SDRAM
  • Display: HDMI 2.0A, up to 4K
  • Network: 100M Ethernet + 100M Wi‑Fi
  • OS support: Debian / Linux

Applications

• Running Klipper as a cost-effective Linux host for 3D printers
• Printer monitoring with Micro HDMI displays and CSI cameras
• Network printing via Ethernet/Wi‑Fi
• DIY add-ons and peripherals via 40‑pin GPIO

Features

• Standard CM4 socket supports CB1 and Raspberry Pi CM4
• Full connectivity: Ethernet, USB, dual Micro HDMI, CSI/DSI
• Type‑C power input for stable supply and easy setup
• 40‑pin GPIO for peripherals and expansion
• Printable case STL available for clean installation
• CB1 offers quad-core performance for Linux + Klipper

Commands / Notes

• Use a stable 5V Type‑C power supply to avoid undervoltage and disconnects.
• Ensure adequate cooling; a heatsink improves stability during long sessions.
• Flash a compatible Debian/Linux image and complete Klipper setup before connecting to your printer.

Package Includes

• 1 piece of PI4B adapter / CB1 Adapter / PI4B + CB1 Adapter
