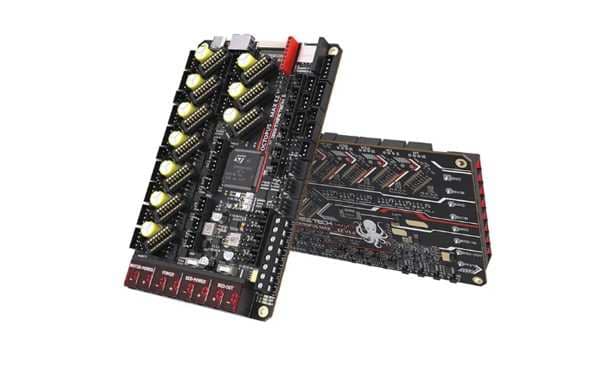

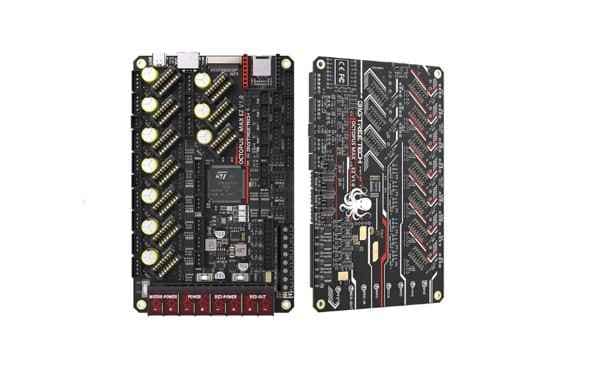

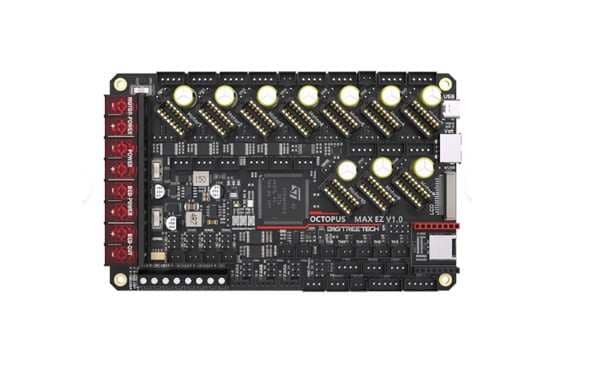

Octopus Max EZ V1.0 Bigtreetech for 3D Printer
Availability:
In stock
Octopus Max EZ V1.0 Bigtreetech for 3D Printer is a high-performance 32-bit controller designed for efficiency and adaptability across printers. It features 10 EZ driver sockets (pinless), onboard SPI/UART, and an acceleration sensor interface for Klipper input shaping. Powered by a 32-bit 550 MHz ARM Cortex-M7 STM32H723ZET6 MCU, it supports multiple stepper drivers, easy firmware upgrades via SD card or DFU, and a protected thermistor circuit for bed and heater safety. Includes Octopus Max EZ V1.0.
- 32-bit 550 MHz ARM Cortex-M7 MCU (STM32H723ZET6)
- 10 EZ driver sockets with pinless driver compatibility
- Onboard SPI and UART interfaces for firmware updates and sensors
- Proximity switch port with 24V/12V/5V selectable voltage (NPN/PNP)
- Onboard SPI interface for Klipper input shaping acceleration sensor
- Firmware upgrades via SD card or DFU (Klipper make flash)
- Protected thermistor circuit to prevent MCU damage from bed/heater short
₹7,999.00
In stock
Tell us what you need and we’ll help you source it.
Octopus Max EZ V1.0 Bigtreetech for 3D Printer
Octopus Max EZ V1.0 Bigtreetech for 3D Printer
- BIGTREETECH Octopus Max EZ V1.0 is a high-end 3D printer controller built for makers who need maximum expansion, safer driver installation, and modern firmware workflows.
- For advanced builds in India—such as large-format printers, multi-motor motion systems, and feature-heavy Klipper setups—the Octopus Max EZ provides powerful processing and flexible configuration in a single mainboard.
- At its core is a high-performance STM32H723 MCU delivering 550MHz class processing, supporting responsive motion control and stable peripheral handling.
- The standout hardware feature is 10 EZ driver sockets, designed for pinless stepper drivers.
- This EZ socket approach reduces the risks associated with traditional pin headers, improving long-term reliability and making driver installation safer and cleaner—especially when building high-vibration printers or frequently swapping drivers.
Specifications
- MCU: 32-bit 550MHz ARM Cortex‑M7 STM32H723ZET6
- Driver sockets: 10 EZ driver sockets (pinless driver support)
- Driver control: onboard SPI and UART (firmware configurable, no jumpers)
- Proximity switch port: NPN/PNP, voltage selectable 24V/12V/5V
- Input shaping: onboard SPI interface for accelerometer
- Firmware upgrade: SD card update or DFU via Klipper make flash
- Protection: thermistor circuit protection against heater-related shorts
Applications
- Advanced Klipper builds using input shaping
- Multi-motor and large-format printers needing 10 driver capacity
- Builds using proximity sensors with 24V/12V/5V selection
- Users who want safer driver installation via EZ driver sockets
Features
- High-speed STM32H723 550MHz processing
- 10 EZ driver sockets for cleaner, safer installs
- Easy driver configuration via firmware SPI/UART
- Sensor-friendly proximity port with selectable voltages
- Accelerometer support for Klipper input shaping
- SD/DFU firmware update workflows for easier maintenance
Package
- Octopus Max EZ V1.0 x 1
| Weight | 500 g |
|---|
