Motor pulley 20 Teeth 10mm belt GT2 timing pulley 5mm/6.35mm/8mm bore for 3d printer stepper motor

Motor pulley 20 Teeth 10mm belt GT2 timing pulley 5mm/6.35mm/8mm bore for 3d printer stepper motor

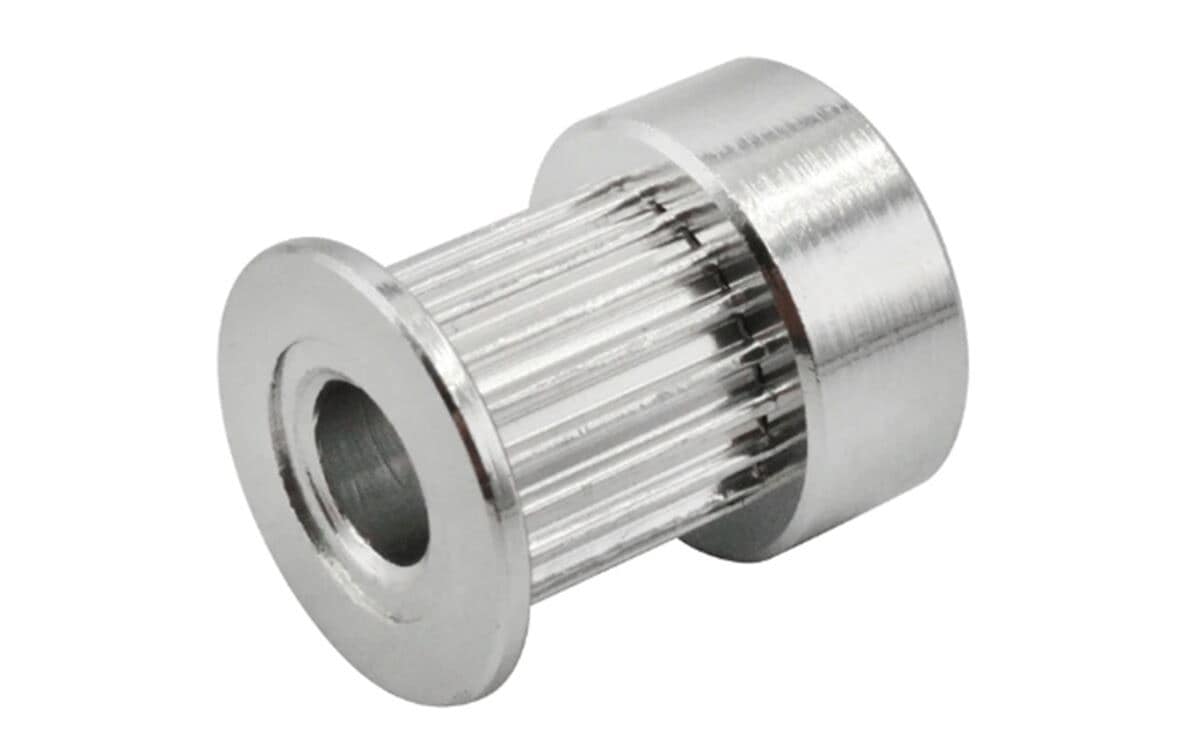

The Motor Pulley 20 Teeth 10mm belt width is a high-quality GT2 timing pulley designed specifically for 3D printer stepper motors. With its 10mm belt and 20 teeth, this pulley provides precise movement and positioning accuracy. Its aluminum construction ensures both lightness and durability, making it an ideal choice for 3D printing applications.

• Featuring a 5mm/6.35mm/8mm inner bore, the Motor Pulley 20 Teeth can easily be attached to any 5mm diameter shaft using the included set of screws.
• The presence of grooves in the pulley further enhances its ability to provide a smooth and accurate movement.
• One of the key features of the GT2 system is its Power Grip design, which allows for greater load-carrying capacity compared to the HTD system.
• While the HTD system is suitable for high torque drive applications, it may not be ideal for precision indexing or registration applications.
• In contrast, the GT2 timing belt drive offers a smaller tooth space and a circular arc tooth profile, making it more suitable for straight line driving.
• Whether you’re a professional or a hobbyist, the Motor Pulley 20 Teeth is a reliable and efficient choice for your 3D printer stepper motor.
• Its high-quality construction and precise performance ensure smooth and accurate prints every time.

Features of GT2 timing pulley

1. The Power Grip GT2 timing pulley is an extension of the HTD system with greater load-carrying capacity. HTD was developed for high torque drive applications, but not acceptable for most precision indexing or registration applications.
2. As smaller diameter Motor pulley are used, the clearance required to operate properly is increased. HTD drive clearance, using small diameter pulleys , is approximately four times greater than an equivalent GT2 timing belt drive.
3. Circular arc tooth profile, tooth space is small, suitable for straight line driving.

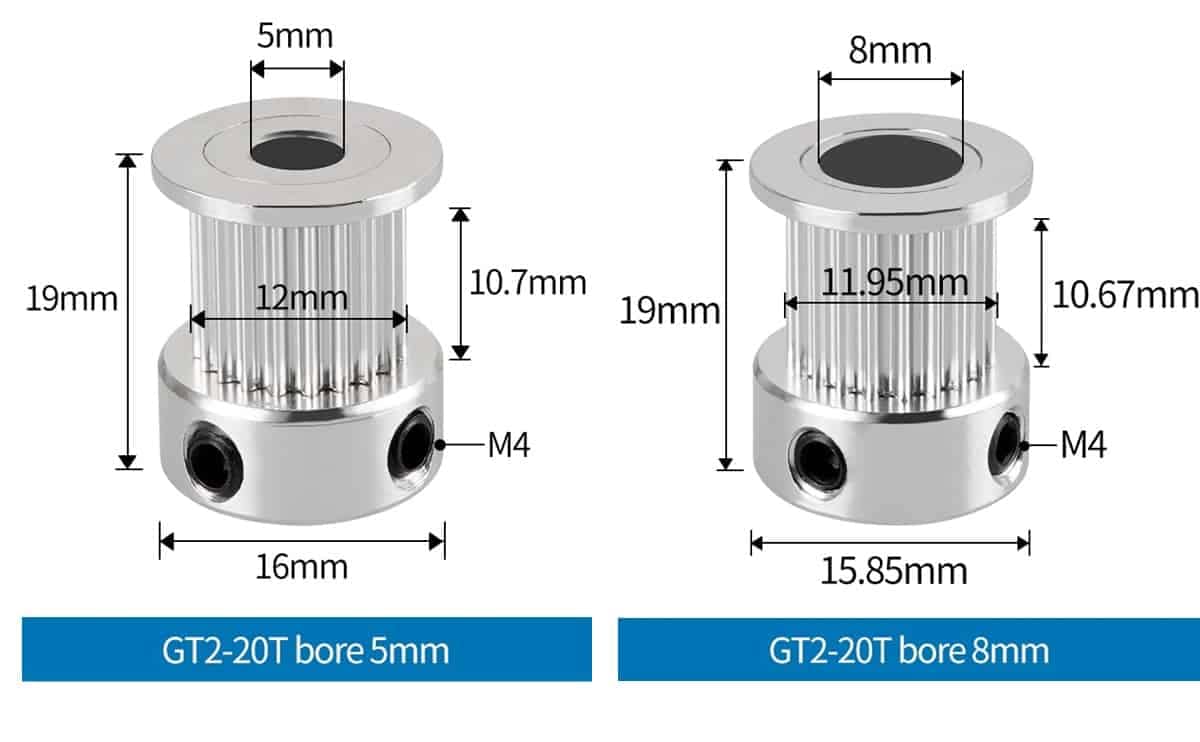

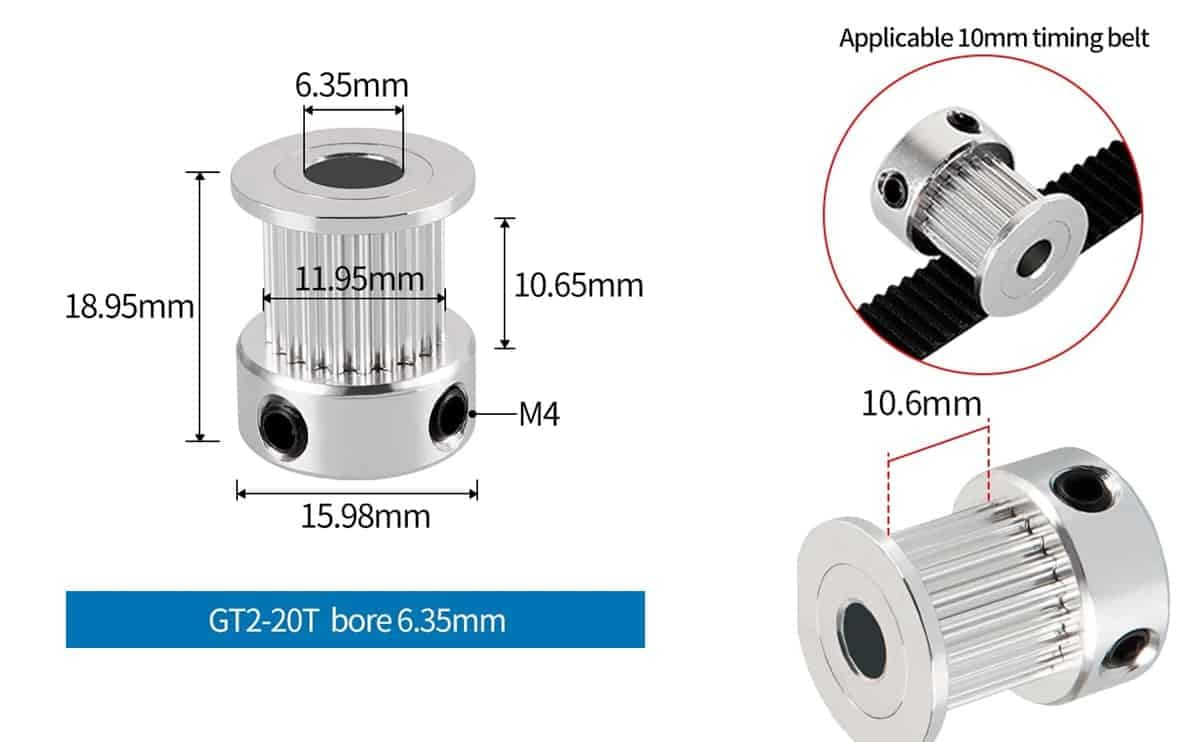

Specification

• Material: Aluminum.
• No. of teeth: 20.
• Belt width: 10mm
• Outer Diameter: 16 mm.
• Inner Diameter: 5mm/6.35mm/8mm.
• Length: 16 mm.

Advantages

• 20-Tooth GT2 Design – Provides consistent belt travel and reliable motion transmission in compatible GT2 systems.
• 10mm Belt Compatibility – Wider 10mm GT2 belt support is useful for applications requiring a wider belt than standard 6mm systems.
• Multiple Bore Options – Available in 5mm, 6.35mm (1/4 inch), and 8mm bore sizes for compatibility with different shafts.

Applications

• 3D Printers – Suitable for X-axis, Y-axis, and other GT2 belt-driven motion systems.
• Stepper Motor Drive Systems – Compatible bore options make it suitable for different motor and drive shafts.
• CNC Machines – Used in CNC routers, engravers, and precision belt-driven positioning systems.
• Laser Engravers & Cutters – Suitable for gantry and carriage movement using GT2 timing belts.
• Robotics – Ideal for robotic sliders, linear actuators, and positioning mechanisms.

Package Include

• 1 piece of 10mm belt width pulley 20 teeth 5/6.35/8mm Bore.
