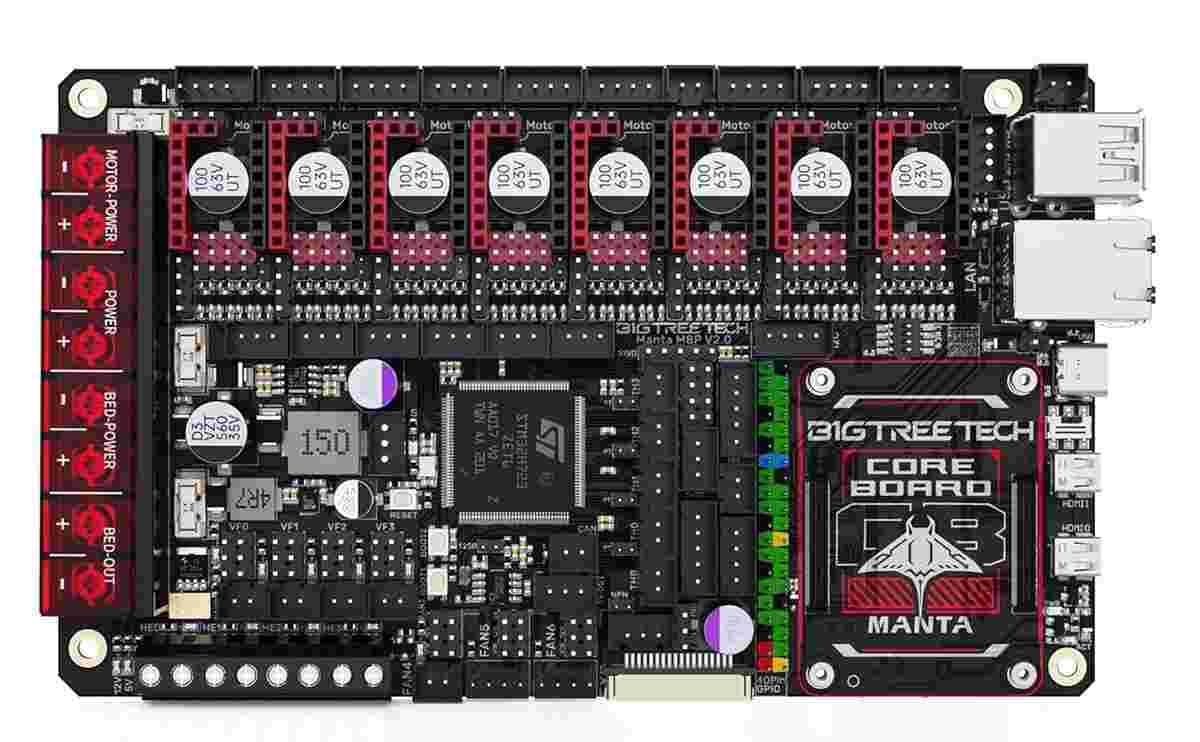

• BIGTREETECH Manta M8P V2.0 is a high-end 32‑bit control board designed for advanced, high-speed 3D printing builds.
• For makers and professionals in India, it combines strong processing power, wide expansion, and modern connectivity—making it a solid choice for CoreXY, Cartesian, and large-format printers that demand stable performance at higher speeds.
• A key advantage of the Manta M8P V2.0 is firmware and host flexibility. It supports Klipper and Marlin, and it can integrate with CB1 or Raspberry Pi CM4 to create a compact, connected all‑in‑one control setup.
• This helps reduce wiring complexity and makes upgrades easier when you want a cleaner electronics layout.

Specifications

• MCU: STM32H723ZET6
• Frequency: 550 MHz
• Driver slots: 8
• eFuse: Yes
• Heater cartridge connectors: 4
• Thermistor inputs: 100K NTC × 5
• Fan ports: 2‑pin PWM ×5, 4‑pin PWM ×2, Always‑on ×1, SoC ×1
• Fan voltage selection: 24V/12V/5V
• USB: 1× USB‑OTG (or UART to USB), 3× USB‑Host, USB 2.0 ×2 (as provided)
• HDMI: Micro HDMI ×2

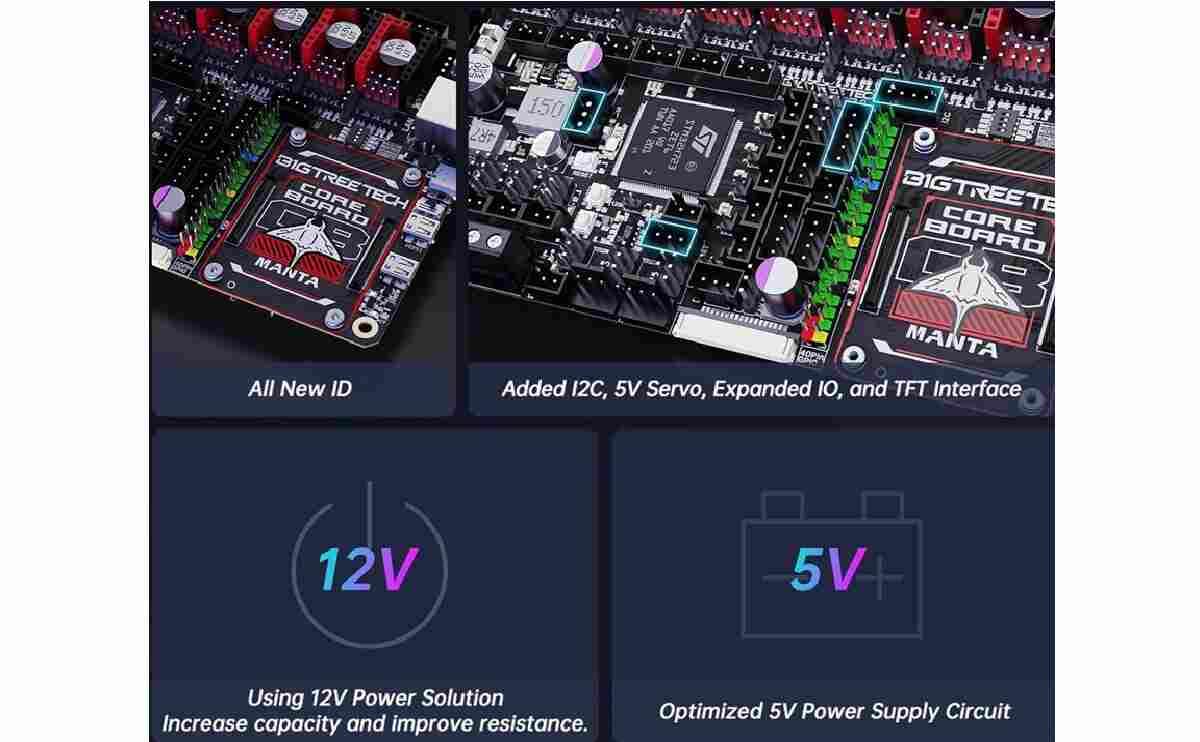

• I2C interface: Yes
• CAN bus interface: Yes
• CSI/DSI: CSI camera + DSI display support (as provided)

Applications

• Klipper high-speed builds with tuning and expansion needs
• Clean cable management using CAN bus toolhead wiring
• Automated printing with filament runout detection + auto shutdown
• Monitoring and UI builds using DSI display and CSI camera

Features

• Klipper support (also supports Marlin)
• CB1 / Raspberry Pi CM4 modular integration
• Strong thermal design for extended printing sessions
• Safety protections: overcurrent, short circuit, reverse polarity

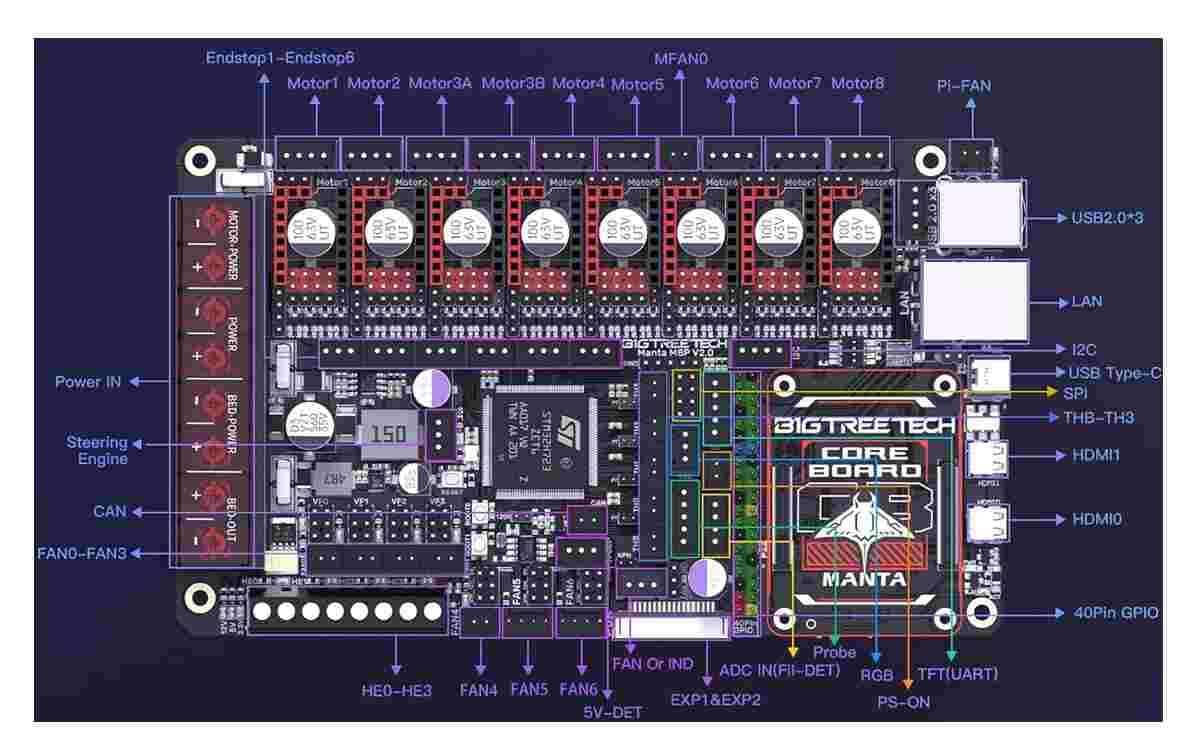

• Wide I/O for heaters, fans, sensors, and modern displays/cameras
• 8 driver slots for complex motion systems

Notes

• Configure filament runout detection in firmware to enable pause/resume.
• Use an auto shutdown module only with correct wiring and safe PSU switching.
• For CAN bus, confirm termination and cable routing to avoid communication issues.

Package Includes

• 1 pcs of bigtreetech manta m8p V2.0 control board.
