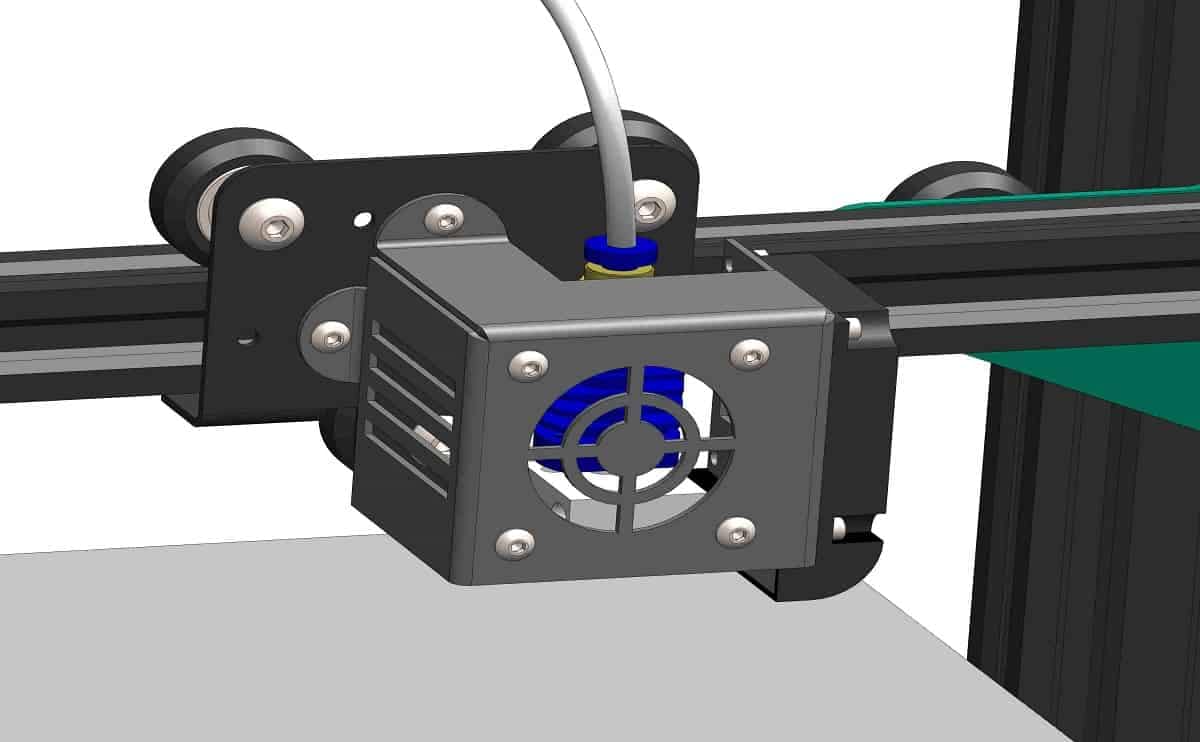

Hotend frame mount for 2020 aluminium profile

Hotend frame mount for 2020 aluminium profile

• The Hotend Frame Mount for 2020 Aluminium Profile is a rigid, precision-fit bracket designed to hold your hotend assembly securely on 2020 extrusion frames.
• Built for stable motion systems, it helps maintain consistent nozzle position, improving layer alignment and print accuracy.
• Ideal for builders who want a cleaner, stronger mounting solution for 3D printer upgrades, rebuilds, or custom machines.
• The sturdy metal body supports long print jobs by reducing flex and minimizing movement-related artifacts.

Specifications

• Material: High-quality aluminium alloy (durable, corrosion-resistant)
• Profile Compatibility: 2020 Aluminium Profile (20×20 extrusion)
• Mount Type: Frame-mounted hotend bracket with practical alignment options
• Fit & Stability: Rigid contact surface to reduce wobble and maintain squareness
• Use Case Fit: Suitable for DIY 3D printer, modded printers, and compact gantry designs

Features

• Secure mounting for the hotend assembly to prevent shifting during fast moves
• Vibration reduction to support smoother walls and cleaner corners
• Flexible positioning for dialing in nozzle height, belt path, and carriage alignment
• Strong, lightweight aluminium mount that won’t add unnecessary load to the gantry
• Works well alongside motor mount and gantry plate setups for a more rigid motion system

Applications

• DIY 3D printers built on 2020 aluminium extrusion frames
• 3D printer upgrades and hotend swaps (maintenance-friendly builds)
• Prototyping and small-batch production where repeatability matters
• Educational builds requiring reliable, easy-to-understand assembly
• Light industrial and commercial printers needing stable hotend mounting

Installation & Usage

• Align the Hotend Frame Mount on the 2020 Aluminium Profile and fasten using standard extrusion hardware.
• Position the hotend assembly for optimal clearance, airflow, and cable routing.
• Re-check squareness and tighten all fasteners to maintain rigidity during high-speed printing.

Package Includes:

• 1 piece of universal gantry plate.
