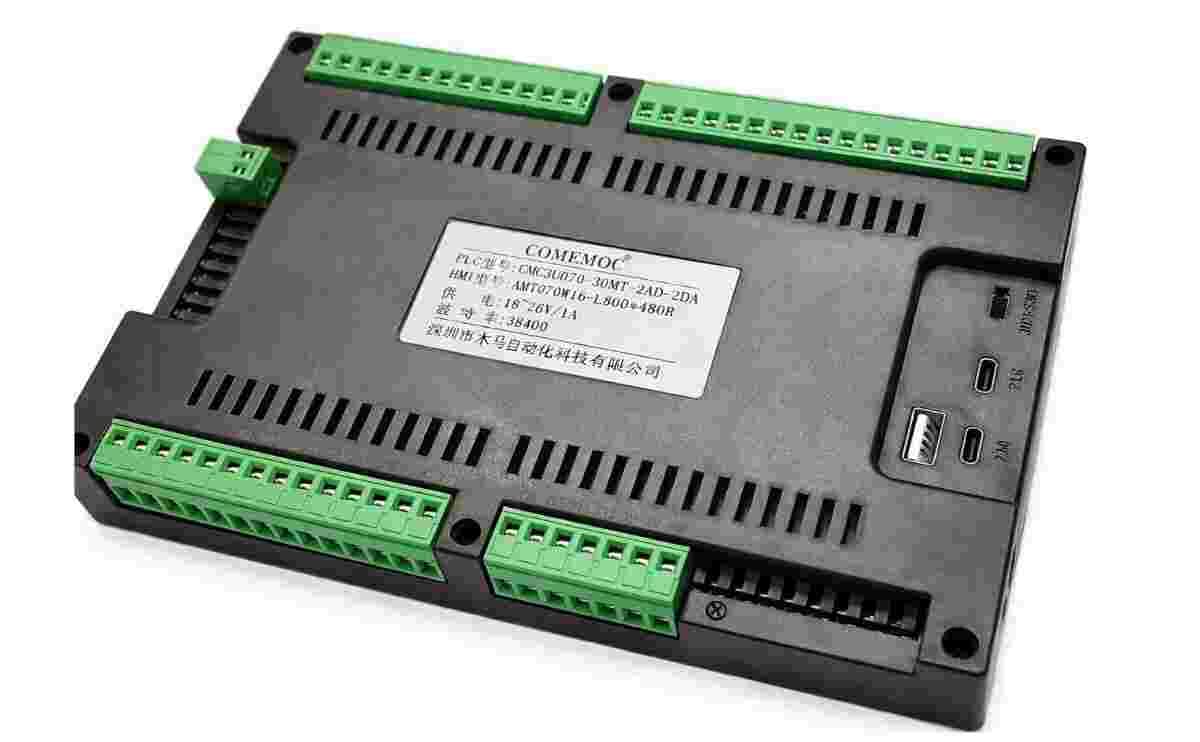

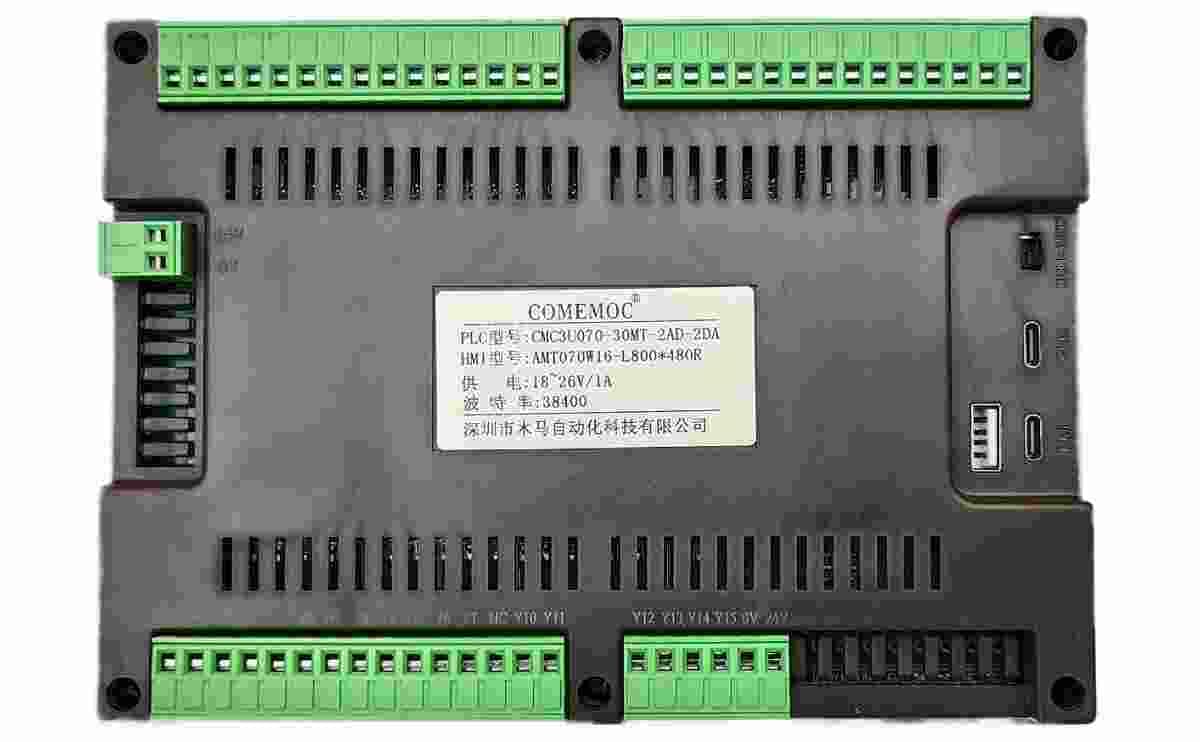

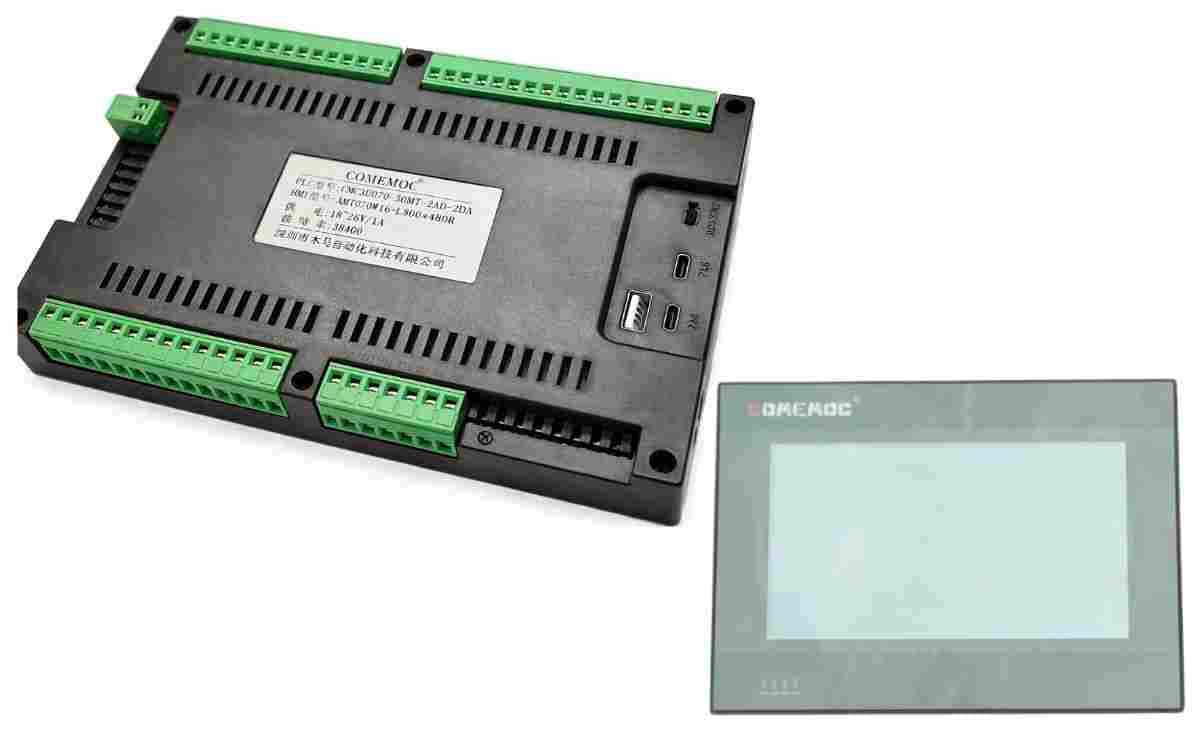

HMI Display CMC3U070 30MT 2AD 2DA Integrated PLC and HMI Controller

HMI Display CMC3U070 30MT 2AD 2DA Integrated PLC and HMI Controller

HMI Display CMC3U070 30MT 2AD 2DA Integrated PLC and HMI Controller

• CMC3U070 30MT 2AD 2DA Integrated PLC and HMI is a high-performance all-in-one automation controller engineered for applications requiring fast switching, precise control, and advanced visualization.
• By combining a powerful PLC with a large 7-inch HMI touchscreen, this unit eliminates the need for separate PLC and HMI devices, reducing panel space, wiring complexity, and installation time.
• Electronic Module Equipped with high-speed transistor (MT) outputs, along with 2 analog inputs (2AD) and 2 analog outputs (2DA), this controller is ideal for motion-oriented and time-critical automation tasks.
• The larger display Modules provides excellent visibility for operators, enabling real-time monitoring, parameter adjustment, alarms, and diagnostics in demanding industrial environments.

Specifications

• Model: CMC3U070-30MT-2AD-2DA
• Controller Type: Integrated PLC and HMI
• Digital Outputs: Transistor type (MT)
• Analog Inputs: 2 channels
• Analog Outputs: 2 channels

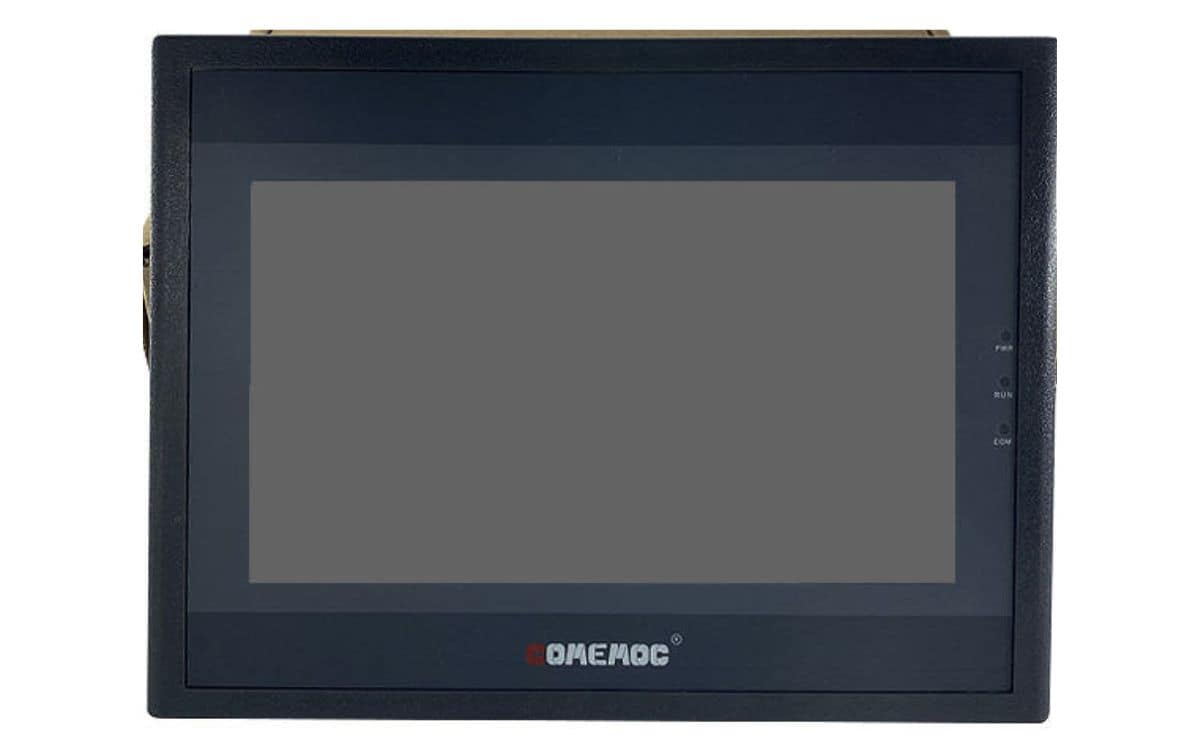

• HMI Display: 7-inch integrated touchscreen
• Mounting Type: Panel mount
• Power Supply: Industrial standard (model dependent)
• Operating Environment: Industrial automation conditions

Applications

• High-speed industrial automation systems
• Packaging, labeling, and filling machines
• CNC auxiliary and motion control systems
• Conveyor, sorting, and material handling systems
• Servo and stepper motor control panels
• Process automation and real-time monitoring
• OEM machinery and compact automation panels

Advantages of MT (Transistor Output) Model

• Faster switching compared to relay-type outputs
• Ideal for pulse, positioning, and motion control
• CMC3U070 Controller for Longer service life with no mechanical wear
• Better performance in high-frequency automation tasks

Key Features

• All-in-one PLC + HMI integrated controller
• Large 7-inch color touchscreen HMI
• Transistor (MT) digital outputs for high-speed control
• Built-in 2 analog inputs (2AD)
• Built-in 2 analog outputs (2DA)
• Compact panel-mount design

Package Includes

• 1 piece of HMI Display CMC3U070 30MT 2AD 2DA Integrated PLC and HMI Controller.
