Hiwin HGW30 Linear Guide Block Wide Type for CNC Original Hiwin

Hiwin HGW30 Linear Guide Block Wide Type for CNC Original Hiwin

Hiwin HGW30 Linear Guide Block Wide Type for CNC Original Hiwin

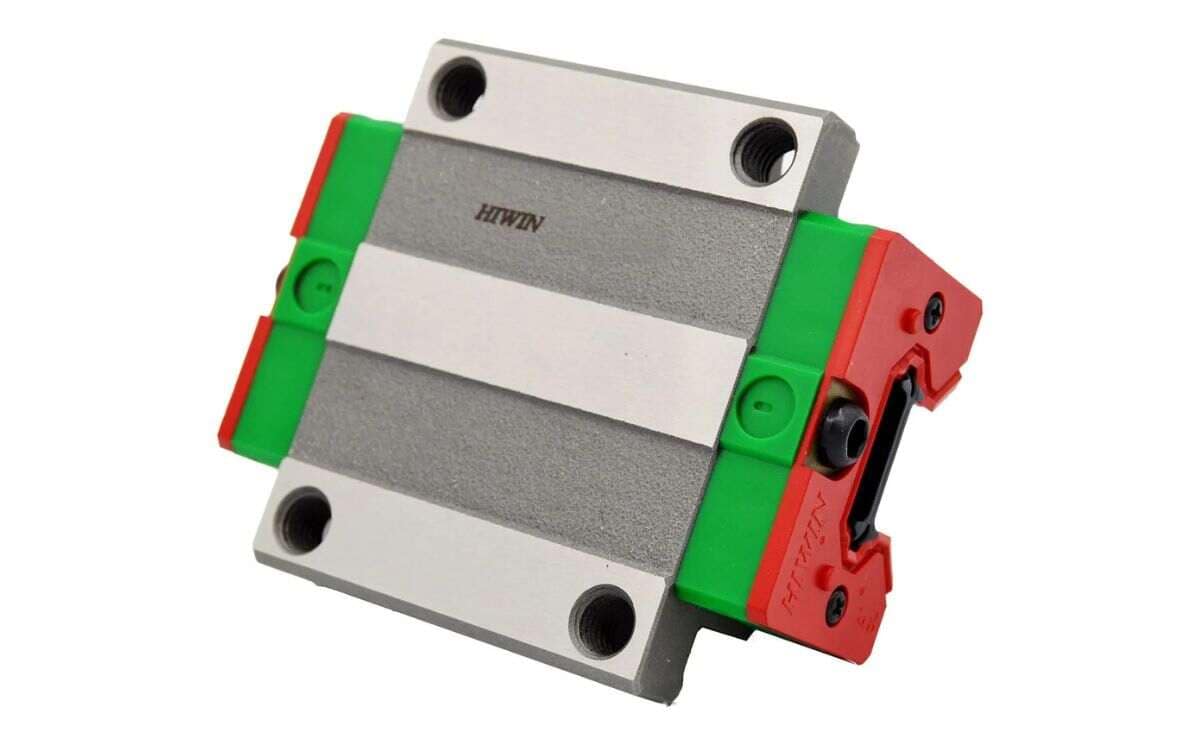

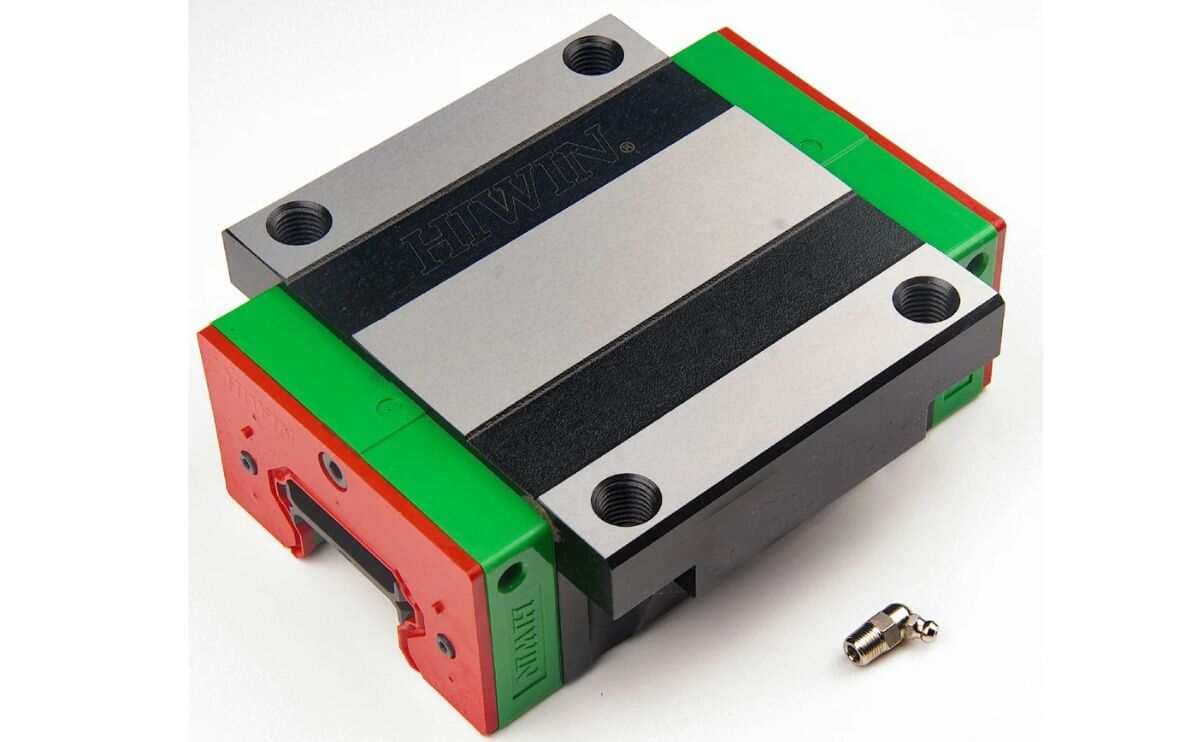

• HGW30 linear guide block is a wide type (W-series) linear motion carriage used with HGR30 linear guide rails.

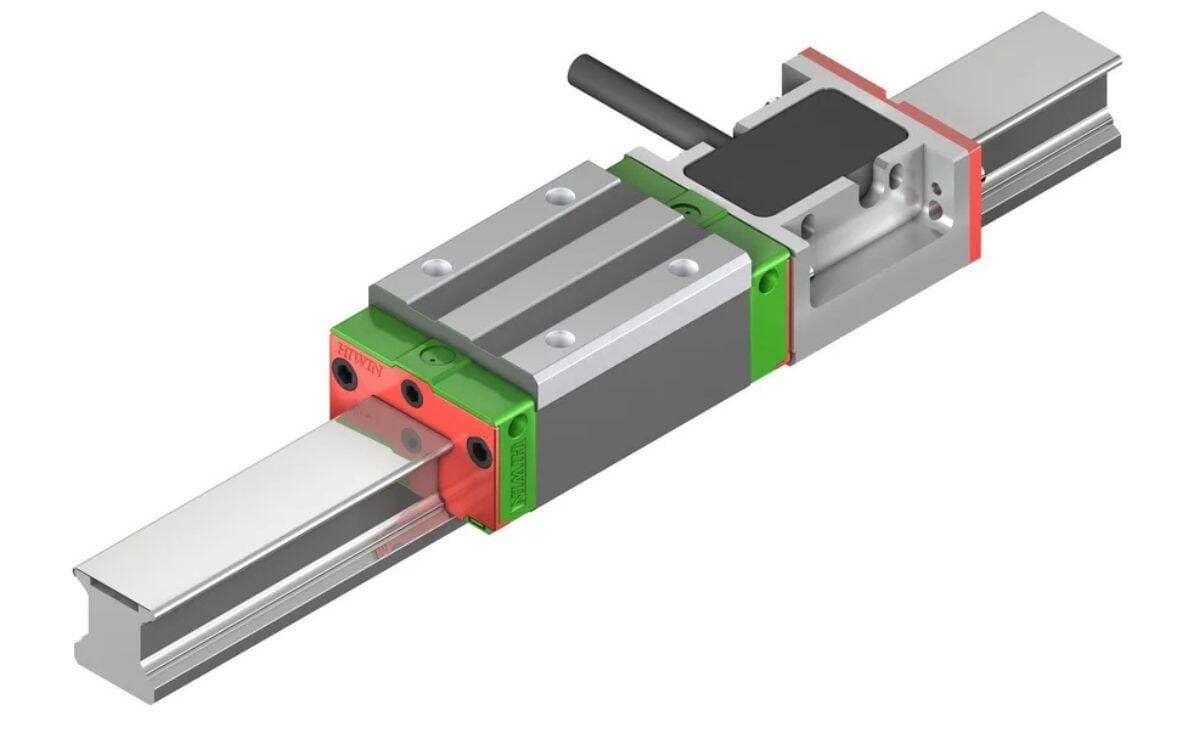

• Original Hiwin HGW30 linear guide block (Wide Type / W-Series) is a heavy-duty linear motion carriage designed to run on an HGR30 linear guide rail (30mm).
• Compared to standard square-type blocks, the wide-body HGW30 carriage provides higher moment load capacity, improved rigidity, and better stability, making it ideal for high-load CNC axes, gantry systems, and precision automation equipment.
• Manufactured from hardened bearing steel with precision-ground raceways, this Hiwin HGW30 bearing block delivers smooth, low-friction, low-noise travel and long service life.
• The sealed recirculating ball system with end seals helps protect against dust and contaminants, while grease lubrication supports consistent performance in demanding industrial environments.

Specifications

• Brand : Hiwin
• Model: HGW30
• Type: Wide Type Linear Block
• Rail Compatibility: HGR30 linear rail
• Rail Size: 30mm Block
• Material: Hardened bearing steel
• Mounting Type: Top mounting
• Lubrication: Grease lubricated
• Sealing: End seals for dust protection
• Accuracy Class: Standard / High precision
• Mounting Orientation: Horizontal & vertical

Applications

• Heavy-duty CNC routers and milling machines
• Gantry and portal machines
• Industrial automation systems
• Laser cutting and engraving machines
• Robotics and motion control systems
• Pick and place machines
• Precision linear motion assemblies

Advantages

• Wide-type linear block
• Higher moment load capacity than square type
• Excellent rigidity and stability
• Smooth and precise linear motion
• Low friction and low noise operation
• Precision hardened bearing steel construction
• Dust-proof end seals for long service life

Package Includes

• 1 piece of Hiwin HGW30 Linear Guide Block Wide Type for CNC Original Hiwin
