HGW15CC Linear Block Heavy Duty Linear Guide Rail for CNC Machines and Automation

HGW15CC Linear Block Heavy Duty Linear Rail for CNC Machines & Automation

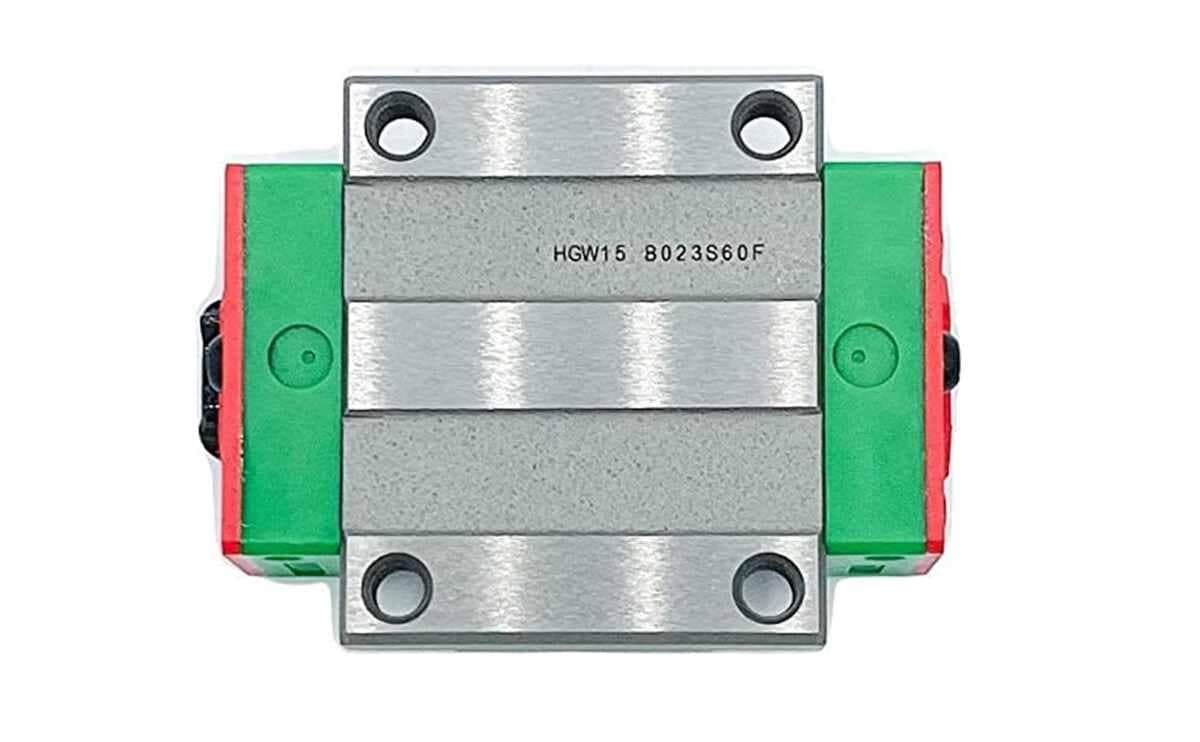

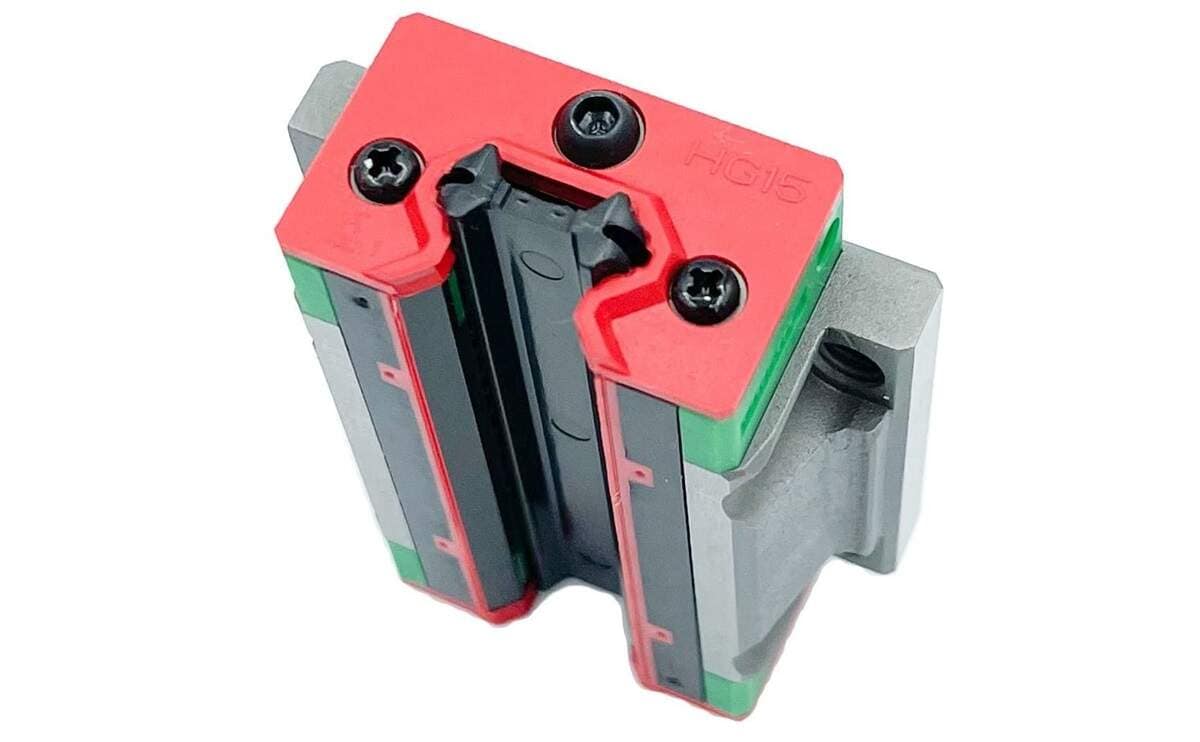

• HGW15CC linear guide block is a heavy-duty, flanged linear motion bearing carriage designed for smooth, accurate travel on an HGR15 linear guide rail (15mm).
• Built for CNC, automation, and robotics systems, this HGW15CC bearing block helps improve rigidity, reduce vibration, and maintain repeatable positioning for precision motion applications.

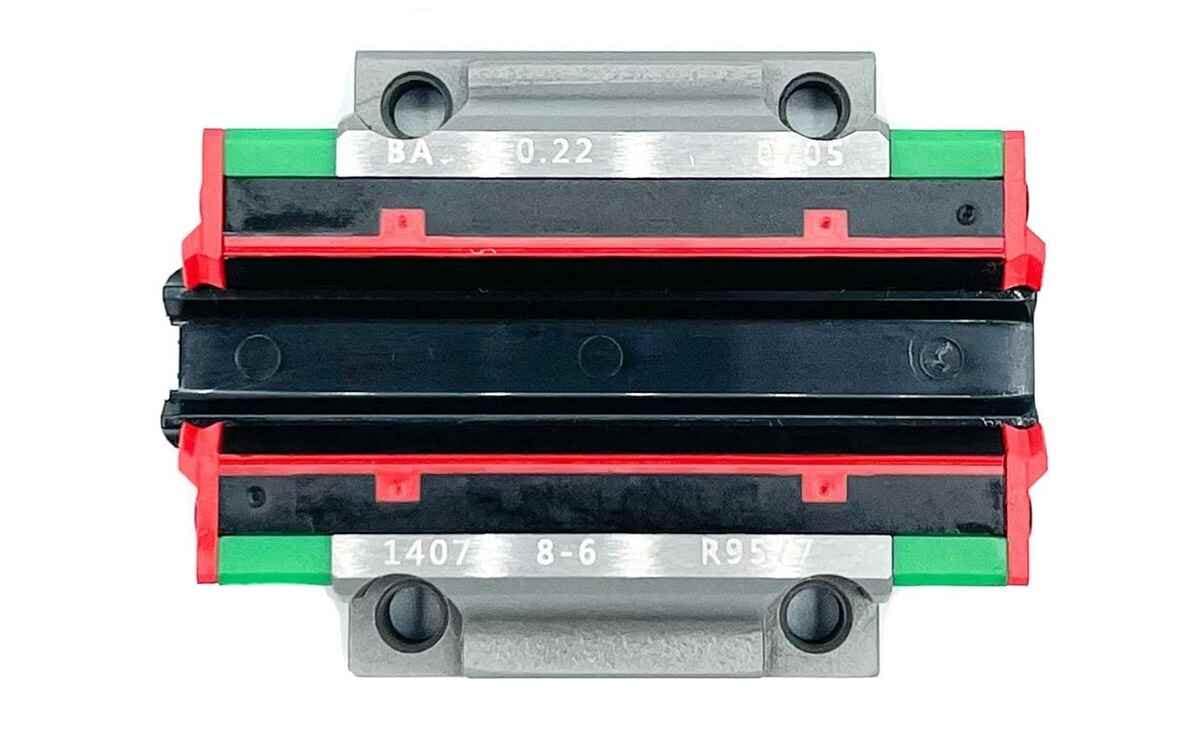

• With a recirculating ball system for low-friction movement and a compact flanged body for secure mounting, the HGW15CC linear rail block is ideal for linear axes, gantry systems, and machine upgrades.
• A grease port/nipple supports easy lubrication to extend service life in continuous-duty environments.

Specifications

• Model: HGW15CC
• Block Width: 15mm
• Block Height: 35mm
• Dynamic Load Capacity: Up to 1,200 Newtons
• Static Load Capacity: Approximately 2,000 Newtons
• Materials:
  • Block: High-quality aluminum for strength and lightweight properties
  • Rail: Hardened steel for durability and wear resistance
• Coating: Anti-corrosion treatment for extended lifespan and performance in harsh environments

Features

• HGW15CC 15mm linear guide block for HGR15 rails
• Flange type (W series) for stronger mounting and improved stability
• Low-friction, smooth travel with recirculating ball design
• High rigidity for CNC and automation positioning accuracy
• Grease port for easy maintenance and longer service life
• Suitable for CNC, robotics, gantry systems, pick-and-place, 3D printer upgrades

Applications

• CNC engraving, cutting, drilling, milling machines
• Industrial automation systems and production lines
• Robotics, gantry and XYZ linear motion assemblies
• Pick-and-place and material handling systems
• Precision equipment and custom machine builds

Benefits of the HGW15CC Heavy Load Block

• Enhanced Load Distribution: Evenly distributes weight across its surface, reducing stress and wear on components.
• Long-Lasting Performance: Resistant to environmental factors like humidity and temperature fluctuations, minimizing maintenance needs.
• Cost-Efficient: Lower maintenance and replacement frequency mean reduced operational costs.

Why Choose HGW15CC Linear Blocks?

• Superior Reliability: Withstands operational stresses in high-demand settings.
• Unmatched Precision: Perfect for industries requiring accuracy and durability.
• Universal Compatibility: Designed to integrate seamlessly with CNC machines and automation systems.

Package includs

• 1 Piece HGW15CC Linear Block (Color may vary).
