H2 V2S REVO extruder of bigtreetech for 3d printer

H2 V2S REVO extruder of bigtreetech for 3d printer

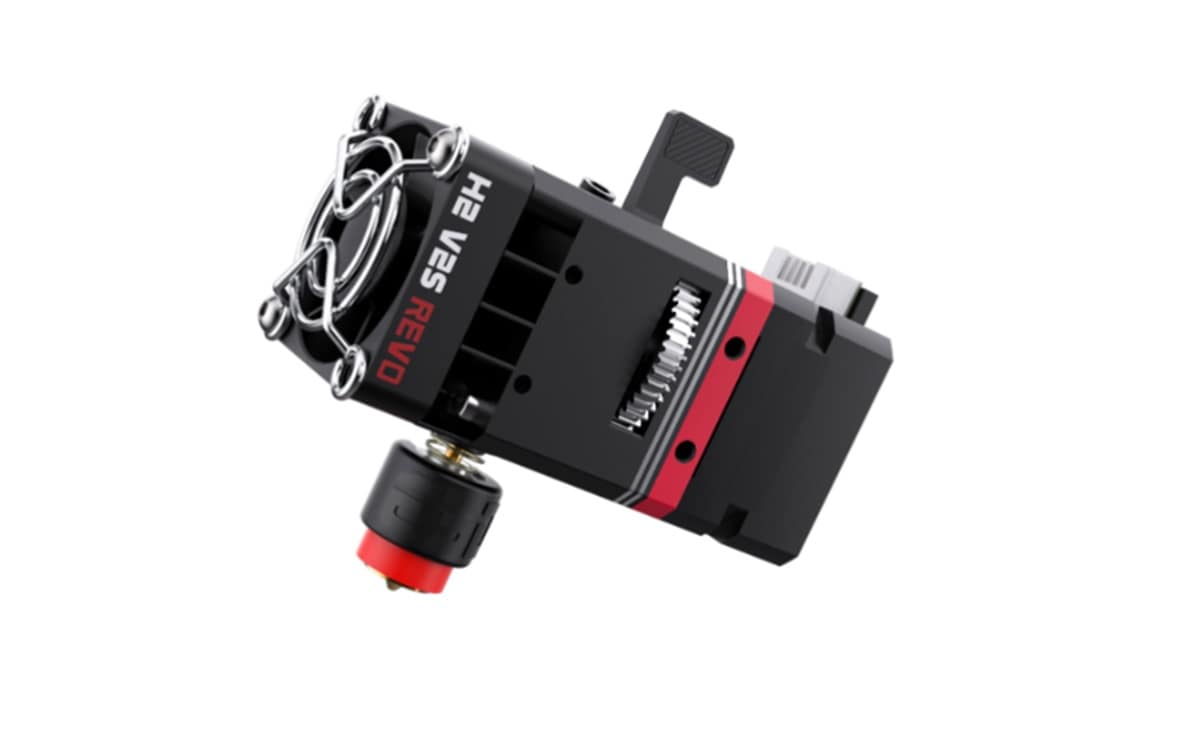

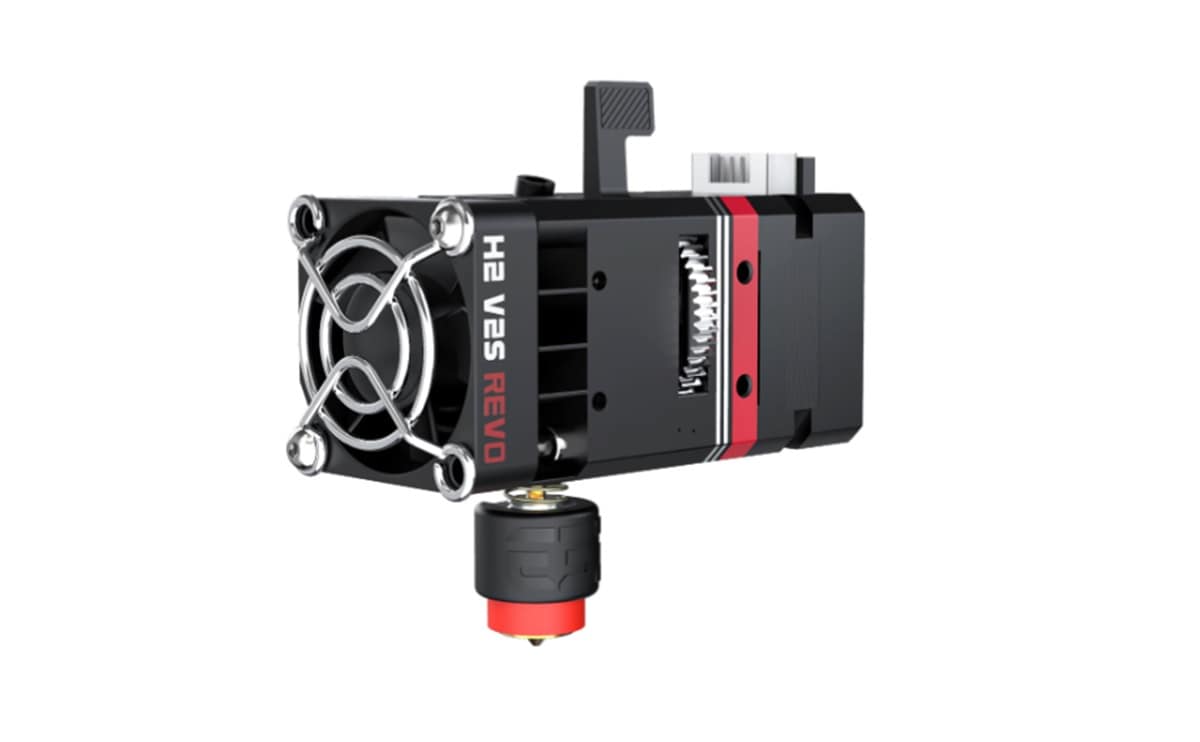

• The H2 V2S REVO extruder by BIGTREETECH is a compact, lightweight dual-gear direct drive extruder built for smoother extrusion, faster maintenance, and safer high-temperature printing.
• It’s designed around the Revo system, so you can change a Revo Brass nozzle by hand—no wrenches, no hotend teardown, and less downtime when switching nozzle sizes or running different print profiles.
• For speed and workflow, the Revo HeaterCore uses a modern heater-and-sensor architecture that heats up in seconds—faster than traditional aluminum heater blocks—so you can start printing sooner and recover quickly after swaps or pauses.
• Safety is improved through the heater’s PTC behavior, where heating power reduces as temperature rises, supporting more stable operation.
• Extrusion performance comes from a strong dual gear filament feed with a 7:1 gear ratio and up to ~7.5 kg extrusion force (filament-dependent)H2 V2S REVO extruder.
• This helps maintain consistent grip and smoother feeding during long prints, higher flow demands, or materials that typically require reliable traction BIGTREETECH Revo extruder.
• Tension is adjustable, letting you tune pressure on the filament to match your material and reduce the risk of grinding or slipping.
• Daily usability is improved with a practical lever handle that makes loading and unloading filament easier—useful for frequent material changes or printers where toolhead access is tight.
• With a rated 24V system and a 40W HeaterCore, the BIGTREETECH Revo extruder targets reliable, repeatable results for performance-focused 3D printing setups.

Specifications

• Extrusion method: dual-gear direct-drive extrusion
• Maximum printing temperature: 300°C
• Filament supported: 1.75 mm ± 0.05 mm
• Maximum extrusion force: ~ 7.5 kg (depends on filament)
• Extrusion throughput (approx.): 1800 mm³/min (varies by filament/settings)
• Gear ratio: 7:1
• Drive-gear circumference: 24.5 mm
• Net weight (including fan): ~ 198 g
• Heater-core power: 40 W
• Rated voltage: 24 V
• Thermistor type: Semitec 104NT-4-R0H25H42G (NTC100K)
• Firmware baseline: ~ 932 steps/mm @ 16-microstep (calibration recommended)

Applications

• Fast nozzle swaps using Revo Brass nozzle for different print needs
• High-temperature printing up to 300°C (printer-dependent)
• Consistent extrusion for long prints with dual-gear traction

Features

• High-temperature resistance up to 300°C extruder
• Tool-free Revo Brass nozzle replacement
• Fast-heating Revo HeaterCore
• Dual gear feed with 7:1 ratio and ~7.5 kg force
• Adjustable tension for material flexibility
• Lever handle for easier filament control

 Notes

• Calibrate E-steps (baseline ~932 steps/mm) for best accuracy.
• Throughput depends on filament type, temperature, and slicer flow settings.

Package Include

• 1 piece of H2 V2S revo extruder.
