The Flexible Coupling New Rigid Type 5x8mm is a precision shaft coupling designed to transmit torque efficiently between two shafts while accommodating angular misalignment, parallel offset, and axial motion.

• Helical flexible coupling Ideal for 3D printers, CNC machines, robotics, and motion control systems, this coupling ensures smooth operation and reduces stress on connected components.

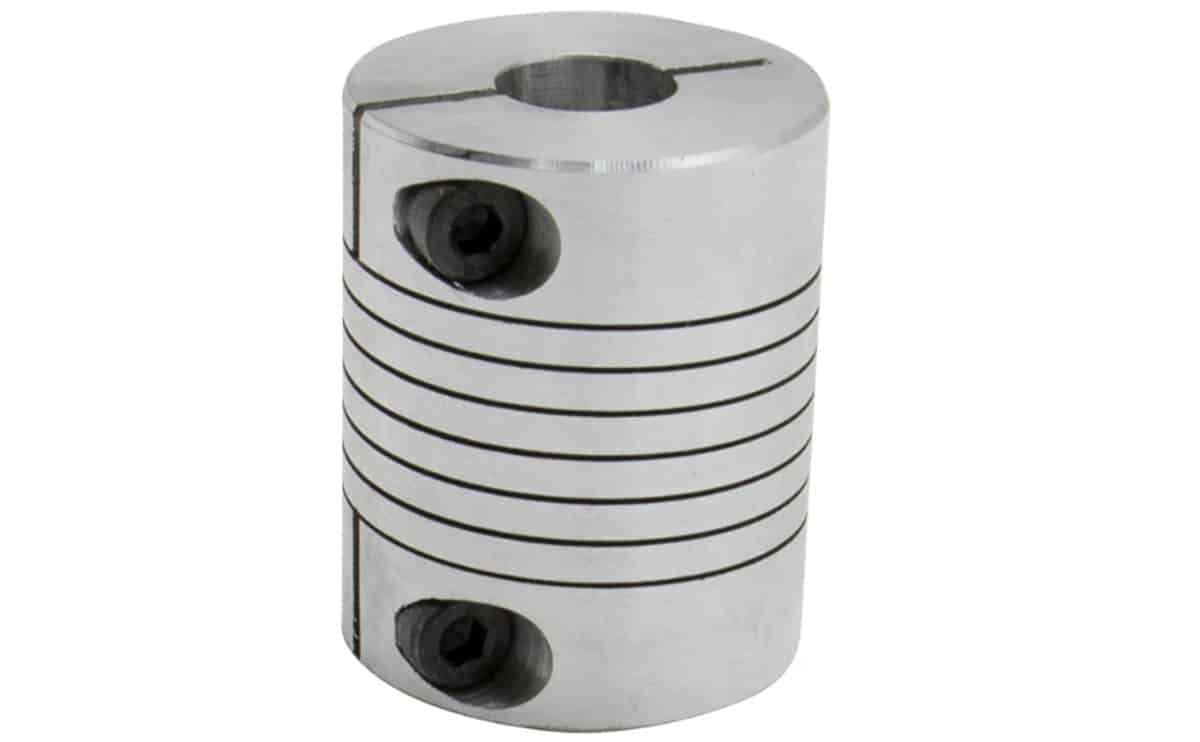

• Crafted from a single piece of high-quality material, the coupling becomes flexible through a spiral cut helical design, creating a curved, resilient beam that absorbs misalignment.
• Robotics shaft connector 5x8mm rigid-type flexible coupling can handle angular misalignments up to 1.5° and minor parallel misalignment, while also helping with vibration damping and noise reduction.
• Precision motion flexible coupling perfect for connecting stepper motor shafts, lead screws, or servo motors in precision motion control systems.

Specifications

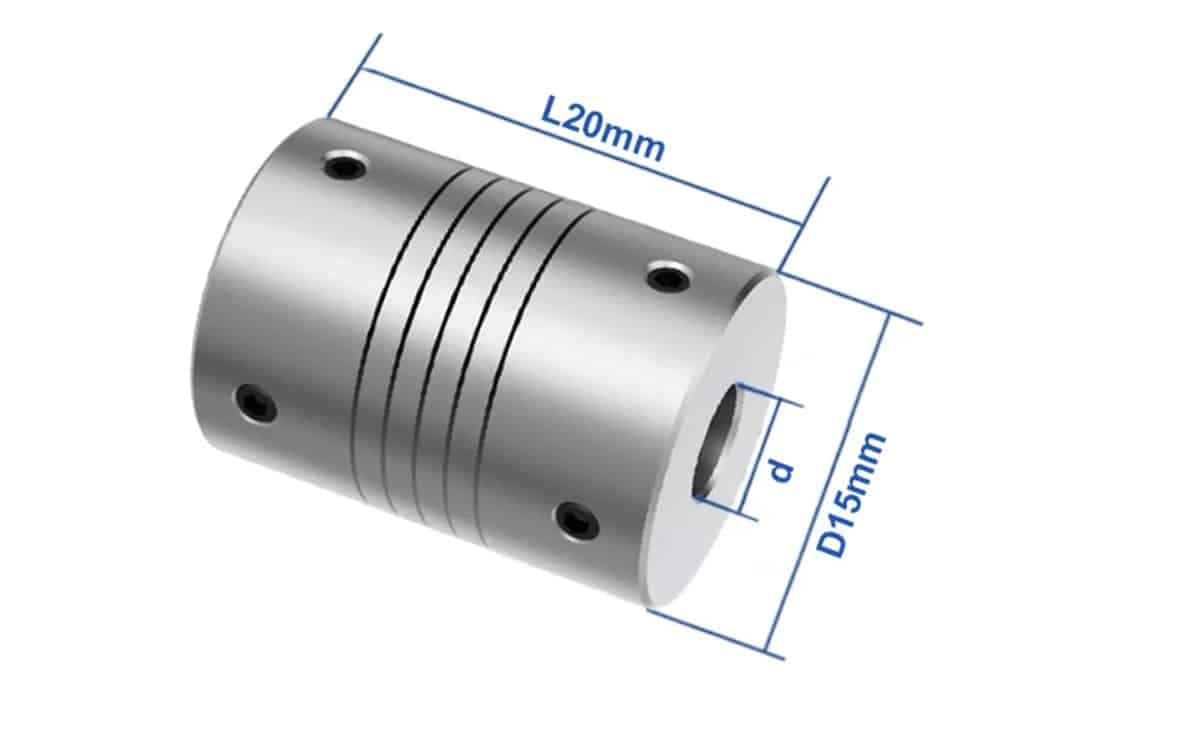

• Inner Diameter: 5mm on one side, 8mm on the other side
• Material: Aluminum or CNC-machined alloy
• Design: Spiral cut helical design for flexibility
• Flexibility: Accommodates angular, parallel, and axial misalignment
• Type: Rigid flexible coupling for stepper and servo motors

Features

• 5mm × 8mm Bore: Connects a 5mm motor shaft to an 8mm lead screw or driven shaft.
• Helical Spiral-Cut Design: Precision-cut slots provide controlled flexibility while transmitting rotational torque.
• Misalignment Compensation: Helps accommodate small angular, parallel, and axial misalignments between connected shafts.
• Aluminum Alloy Construction: Lightweight, durable, and suitable for motion-control applications.

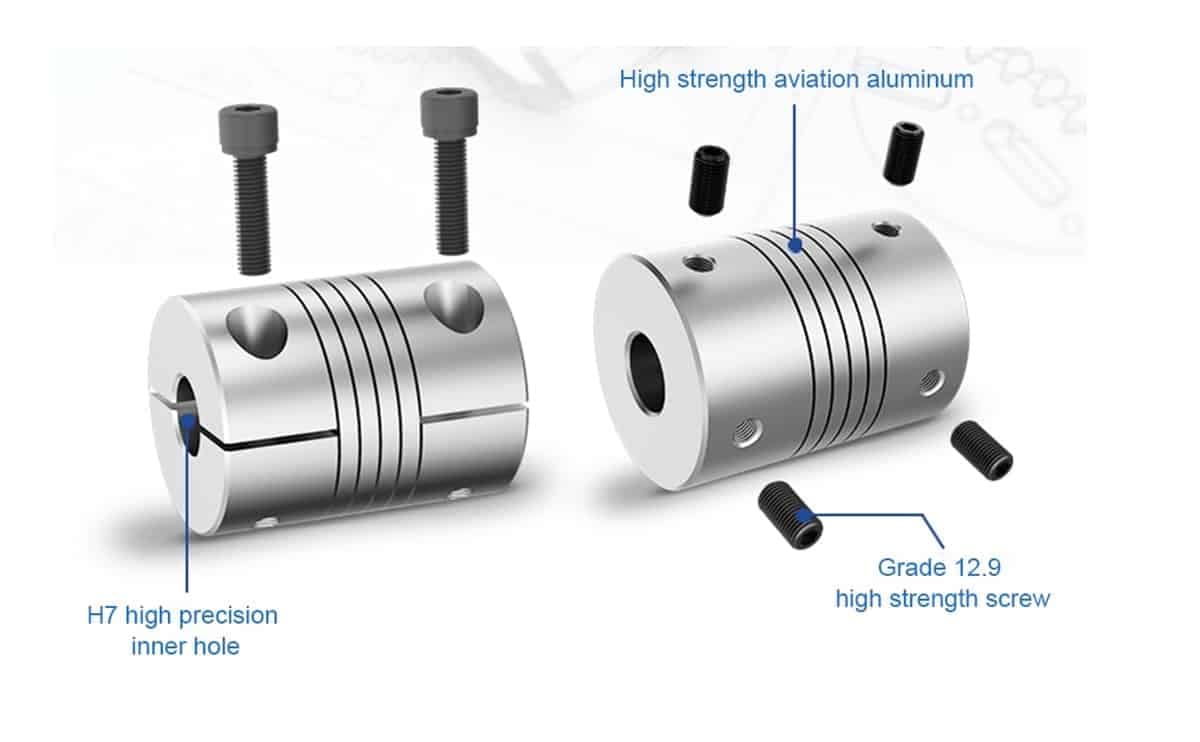

• Secure Shaft Connection: Set screws securely fasten the coupling to both shafts and help prevent slipping.

Advantages

• Improves Motion Stability: Compensates for minor shaft alignment errors for smoother operation.
• Reduces Mechanical Stress: Flexible construction helps reduce stress transferred to motor bearings, shafts, and lead screws.
• Minimizes Vibration: Helps damp vibration generated during motor rotation and direction changes.
• Reliable Torque Transfer: Provides efficient power transmission between 5mm and 8mm shafts.

Applications

• 3D Printers: Connect stepper motors to lead screws for precise filament movement.
• CNC Machines: Ensure smooth torque transfer in milling, engraving, or cutting systems.
• Robotics: Provides reliable shaft connections for robotic arms and automated components.
• Automation Systems: Ideal for conveyors, assembly lines, and other automated machinery.
• Precision Motion Assemblies: Reduces vibration and backlash in sensitive mechanical assemblies.

Package Includes

• 1 Piece of Flexible Coupling 5x8mm (Rigid Type)
