BIQU H2 500°C extruder upgrade all metal hotend  printing 1.75mm filament  with PT100 Max31865 for  printer kits

BIQU H2 500°C extruder upgrade all metal hotend  printing 1.75mm filament  with PT100 Max31865 for  printer kits

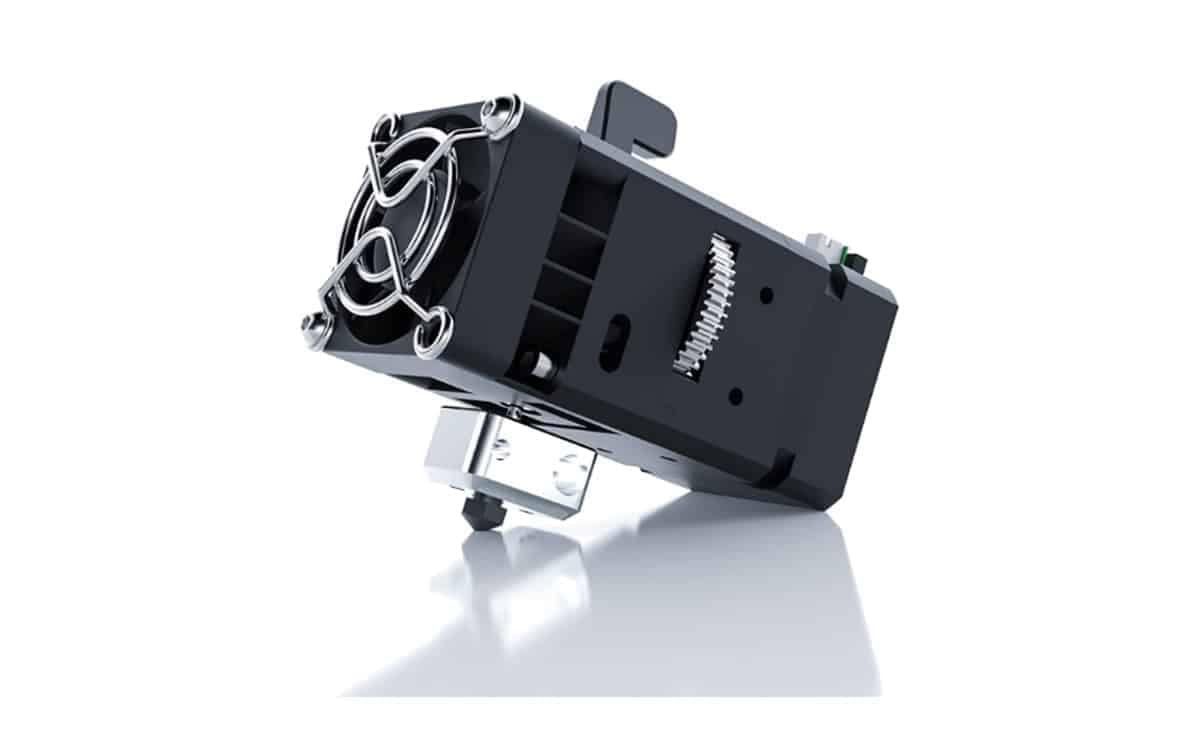

• BIQU H2 500°C extruder is a compact, pre‑assembled direct-drive extruder upgrade built for high‑temperature 3D printing and demanding materials.
• The all‑metal hotend (no PTFE in the heat zone) supports stable extrusion at elevated temperatures, while PT100 + MAX31865 improves accuracy for high-temp sensing.

Features

• 500°C max temperature: Built for high‑temp/engineering filaments (printer/firmware must support 500°C operation).
• All‑metal hotend: Titanium heat break, no PTFE path in the hot zone.
• Hardened steel nozzle (0.4mm): Better for abrasive and high-temp materials.
• PT100 + MAX31865: More accurate high‑temperature sensing versus standard thermistors.
• Compact BIQU H2 integrated design: Pre‑assembled for easier installation in many printer kits.
• High-speed cooling: 9000 RPM fan for improved heat dissipation.
• Dual-gear extrusion: Strong, consistent feeding with geared drive.

Specifications

• Filament: 1.75mm
• Max temp / max heating temperature: 500°C

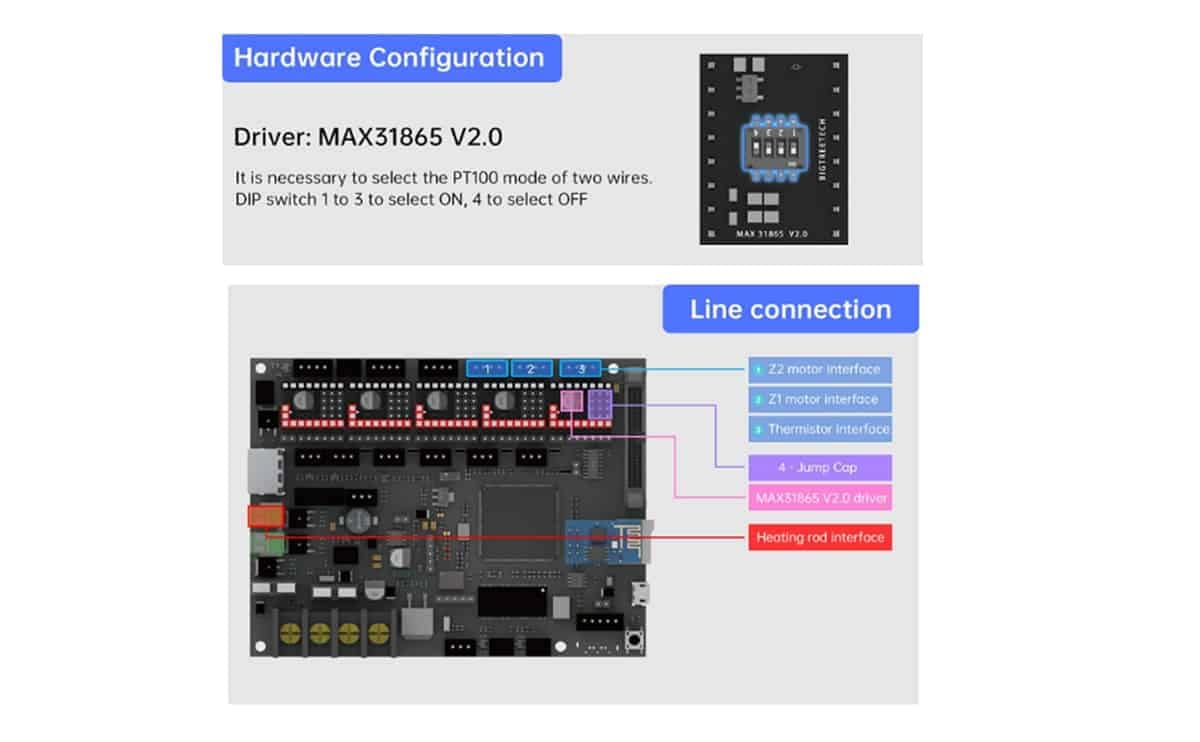

• Thermistor/Sensor: PT100 & MAX31865
• Nozzle diameter: 0.4mm
• Gear material: Stainless steel
• Extrusion gears: 2
• Extrusion gear diameter: 7.8mm
• Gear ratio: 7:1
• Motor heat resistance: 180°C
• Fan heat resistance: 110°C
• Rated voltage: DC 3.45V
• Rated current: DC 1.5A/phase
• Holding torque: ≥110 mN·m
• Output torque: ≥770 mN·m
• Insulation grade: Class H
• Moment of inertia: 8 g·cm³

Specifications

• Size: 35 × 35 × 10mm
• Cable length: 100mm
• Voltage: 12V / 24V
• Speed: 9000 ±10%

Applications

• Printing high‑temperature and engineering materials where standard hotends struggle.
• Better performance with tougher filaments and more stable extrusion in long prints.
• Suitable for users upgrading printer kits to handle higher temps and more demanding workflows.

Package Includs

• 1 Piece of BIQU H2 500°C extruder
