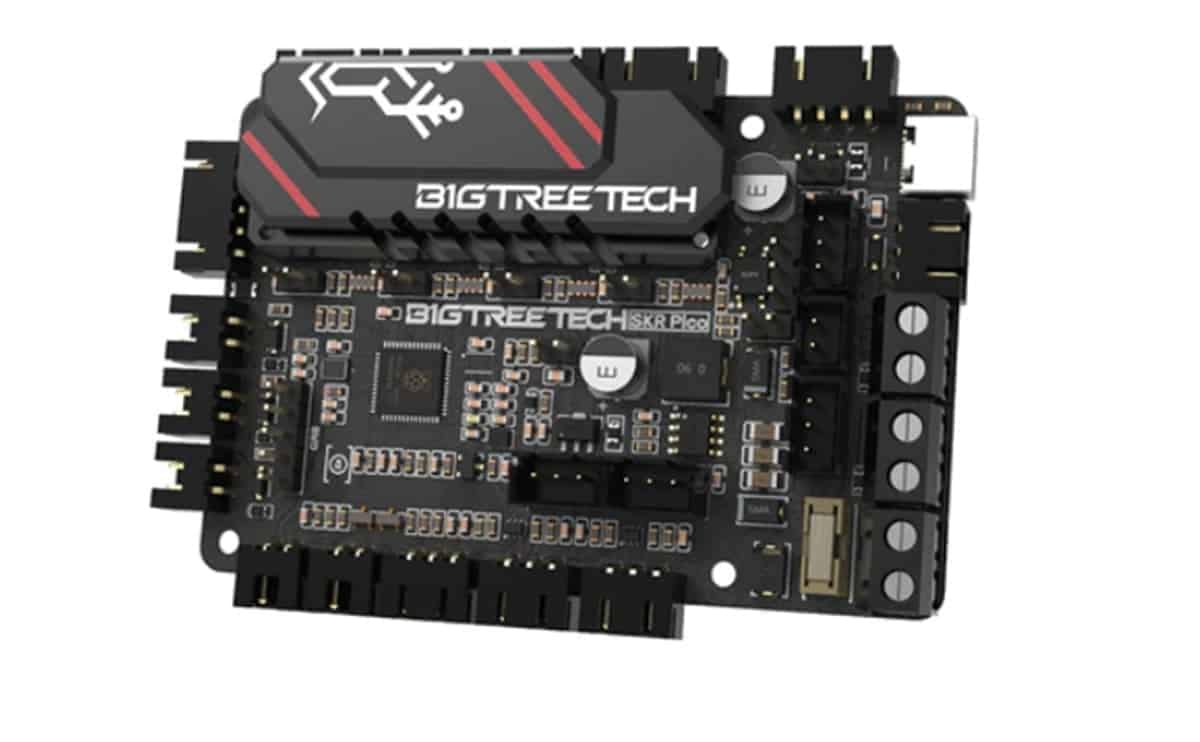

SKR Pico V1.0 Bigtreetech control board for 3D printer

• BIGTREETECH SKR Pico V1.0 is a compact 3D printer control board designed for smooth, efficient printing in small-form-factor and modern builds.
• For users in India, it’s a strong option for Klipper upgrades thanks to its responsive RP2040 MCU and integrated driver design that reduces wiring complexity and improves reliability.
• At the core is an ARM Cortex‑M0+ RP2040, providing fast, stable control and excellent compatibility with Klipper firmware for tuning features and performance-focused printing.
• A major highlight is the inclusion of onboard TMC2209 UART stepper drivers. Because the drivers are integrated on the board, you don’t need separate plug-in driver modules, which simplifies assembly and reduces common driver connection issues.
• The result is quieter motion and smoother movement—useful for home environments and print farms where noise and print consistency matter.

Specifications

• PCB: 4-layer board
• MCU: ARM Cortex‑M0+ RP2040
• Power input: DC 12V / 24V
• Logic voltage: 3.3V
• Motor drivers: onboard TMC2209 in UART mode
• Motor driver interfaces: X, Y, Z1, Z2, E
• Temperature sensor interfaces: TH0, THB, 2× 100K NTC (as stated)

Applications

• Compact Klipper upgrades needing a capable controller
• Quiet printing builds with onboard TMC2209 UART
• Dual Z printers using Z1/Z2 for better stability
• Long prints needing improved heat dissipation and stable electronics
• DIY and small-form-factor printer builds requiring a reliable 4-layer PCB

Features

• Klipper firmware support for advanced tuning and performance
• Onboard TMC2209 UART for quieter motion and simpler setup
• Enlarged heatsink area for improved cooling stability
• Premium Murata MLCC capacitors for stable power filtering
• Easier fuse access for faster maintenance
• Compact design for modern 3D printer builds

Package Include

• 1 piece of Bigtreetech skr pico.
