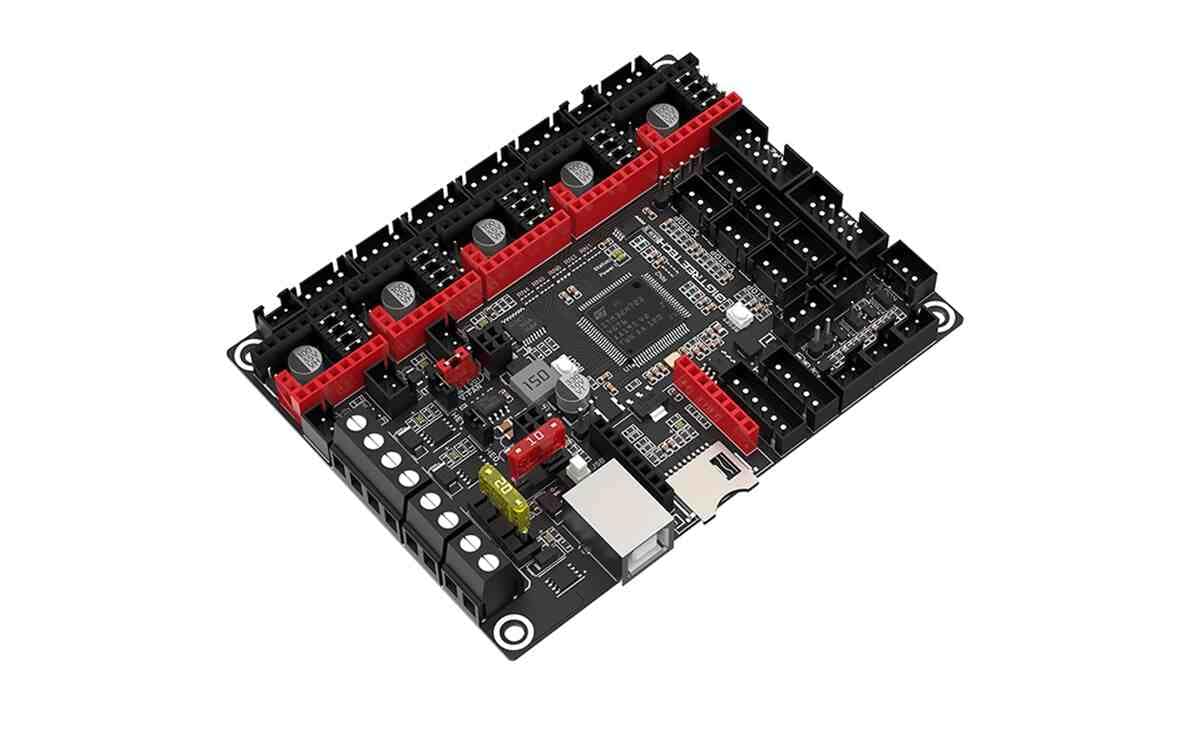

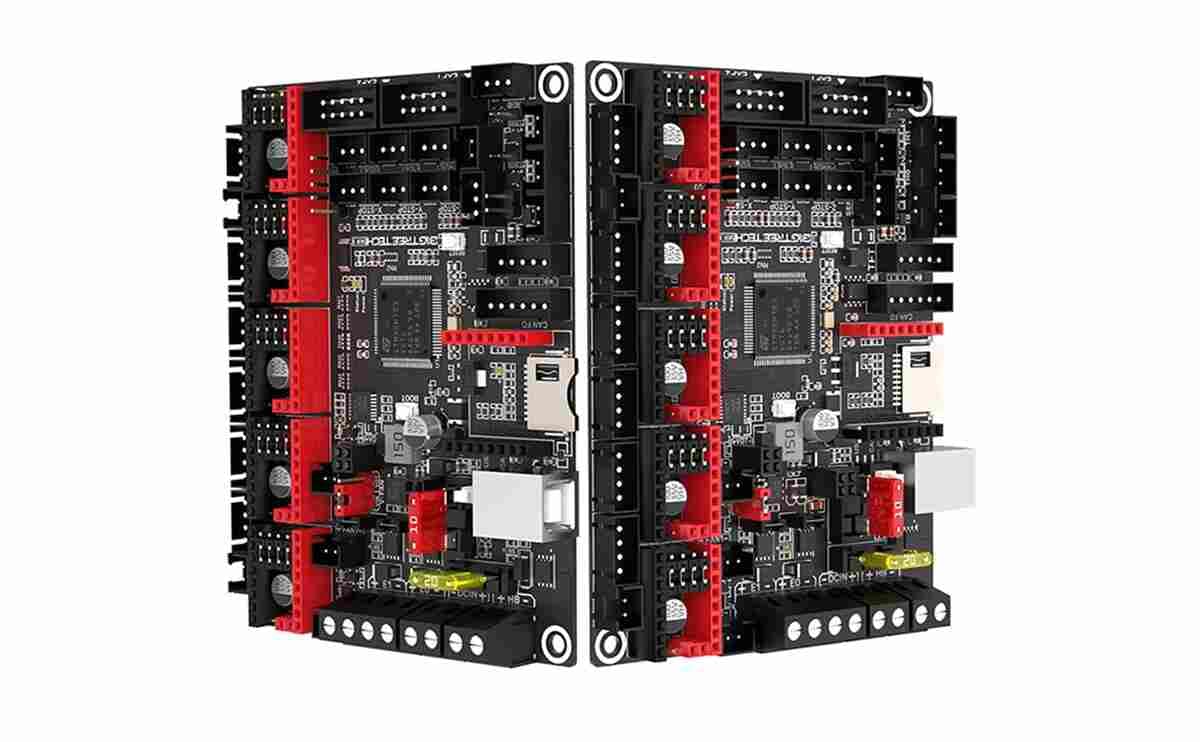

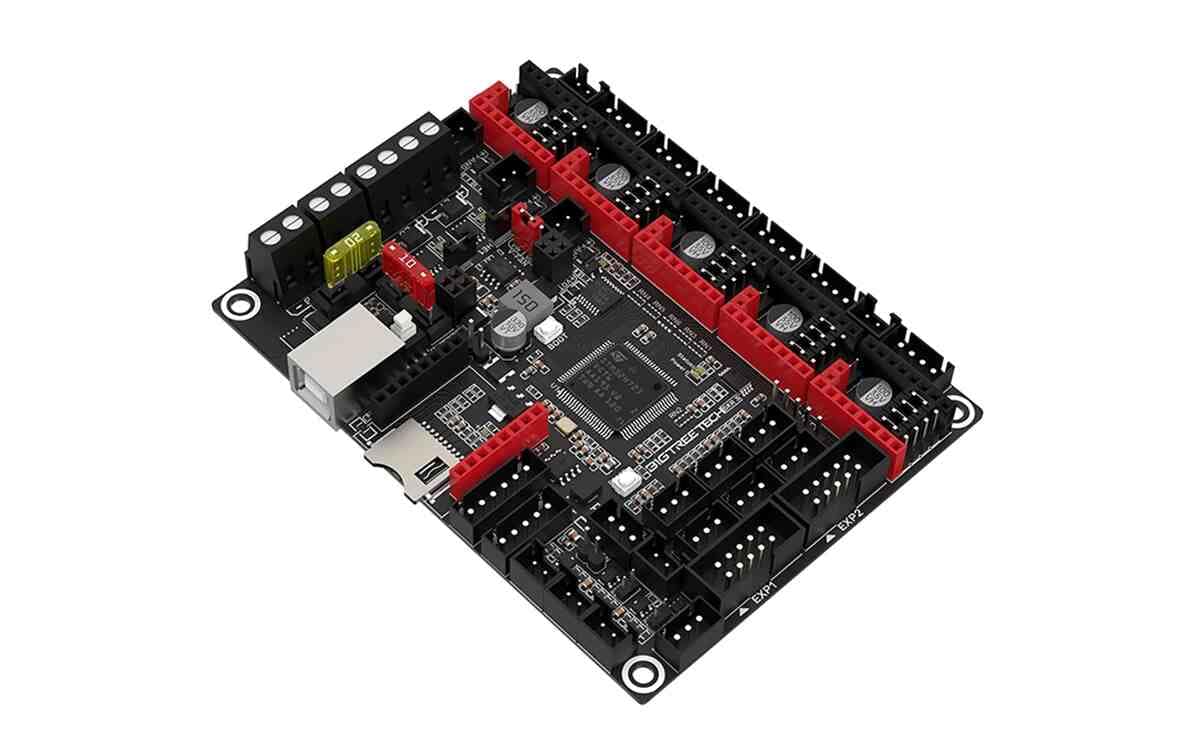

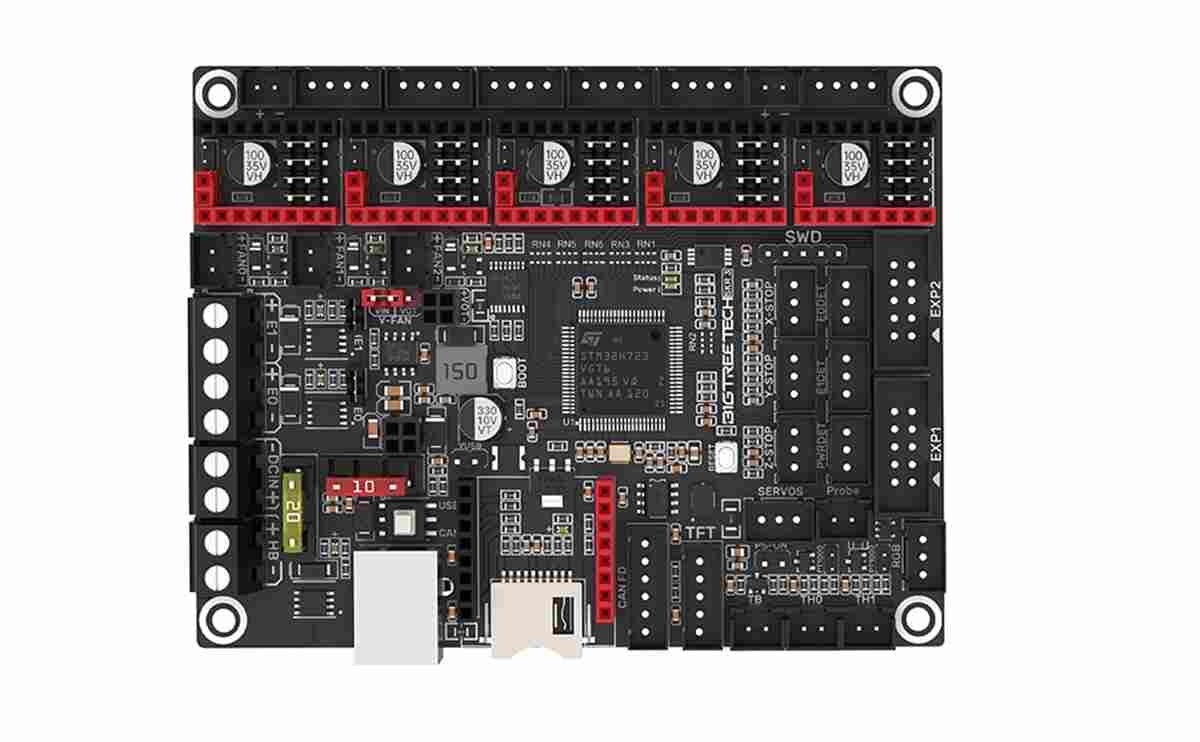

BIGTREETECH SKR 3 Control Board Bigtreetech Motherboard 32Bit Board latest for 3d Printer Machine

BIGTREETECH SKR 3 Control Board Bigtreetech Motherboard 32Bit Board latest for 3d Printer Machine

• BIGTREETECH SKR 3 Control Board is a latest-generation 32-bit 3D printer motherboard built to improve speed, motion handling, and upgrade flexibility.
• Powered by STM32H723VGT6 (ARM Cortex-M7) for modern firmware and smoother performance on advanced builds.
• Supports popular firmware options: Marlin, Klipper, and RepRapFirmware (RRF) for different workflows and printer needs.
• Wide motor driver compatibility (including TMC2209, TMC5160, A4988, DRV8825) makes it easy to reuse or upgrade drivers.
• Multiple expansion headers for upgrades like probe/BLTouch, filament sensor, and CAN FD—useful for Indian makers, labs, and print farms planning future mods.
• Note for buyers: this SKR 3 motherboard does not include an SD card.

Specifications

• Microprocessor: ARM Cortex-M7 CPU STM32H723VGT6
• EEPROM: 24C32 (32-Kbit)
• Input Voltage: DC 12V–24V
• Logic Voltage: DC 3.3V
• Firmware: Marlin, Klipper, RepRapFirmware
• WiFi Interfaces: ESP-12S, ESP-07S, ESP32
• Fan Interfaces: 3 CNC fans + 2 normal fans (CNC fan voltage optional)
• Expansion Interfaces: Servos, Probe, PS-ON, PWR-DET, Fil-DET, CAN FD
• Motor Driver Support: TMC5160T, TMC2209, TMC2225, TMC2226, TMC2208, TMC2130, ST820, LV8729, DRV8825, A4988 etc.
• Driver Modes: SPI, UART, STEP/DIR
• Driver Sockets: X, Y, Z (dual Z-axis), E0, E1 (5-way)
• Heating Interfaces: HB (hot bed), E0, E1
• Temp Sensor Interface: 1× 100K NTC, 2× 100K NTC, PT1000 optional
• Display: Serial touchscreen, SPI touchscreen, LCD
• PC Connection: USB A (square), baud rate 115200
• File Format: G-code
• Printer Structures: XYZ, Delta/Kossel, Ultimaker, CoreXY
• Recommended Software: Cura, Simplify3D, Pronterface, Repetier-host, Makerware
• Note: No SD card included

Applications

• Upgrading 3D printers for faster processing and smoother motion control
• Building CoreXY/Delta machines needing flexible driver and expansion support
• Adding upgrades like filament runout, auto bed leveling probe, and CAN FD
• Maker labs and print farms needing a stable 32-bit control board platform

Features

• Driver anti-reversal insertion safety feature (supported only in Marlin)
• Recommended workflow: install Marlin first to verify hardware, then switch firmware if needed
• Push-pull SD slot design: insert/remove gently; shorter stroke than push-push (handle carefully)

Package Include

• 1 pcs of bigtreetech skr 3 control board.
