Bigtreetech PI TFT43 / TFT50 / TFT70 V2.0 screen board

• BIGTREETECH PI TFT series—TFT43, TFT50 V2.1, and TFT70—are Raspberry Pi DSI touchscreen displays designed for smooth touch response and clean integration with compatible Raspberry Pi boards.
• These screens are well-suited for India-based DIY builders creating 3D printer controllers, Klipper dashboards, automation panels, and embedded UI projects where a reliable DSI capacitive touch display is required.
• All three models share a consistent UI-friendly spec: 800×480 resolution and capacitive 5‑point touch, which keeps menus readable and makes touch interaction responsive.
• Connection is handled via the Raspberry Pi DSI interface using an FPC/DSI cable (model dependent), giving a tidy setup compared to HDMI screens with separate USB touch cables.
• The boards are also designed to support neat assembly with mounting support—helpful for clean enclosures and printer panels.

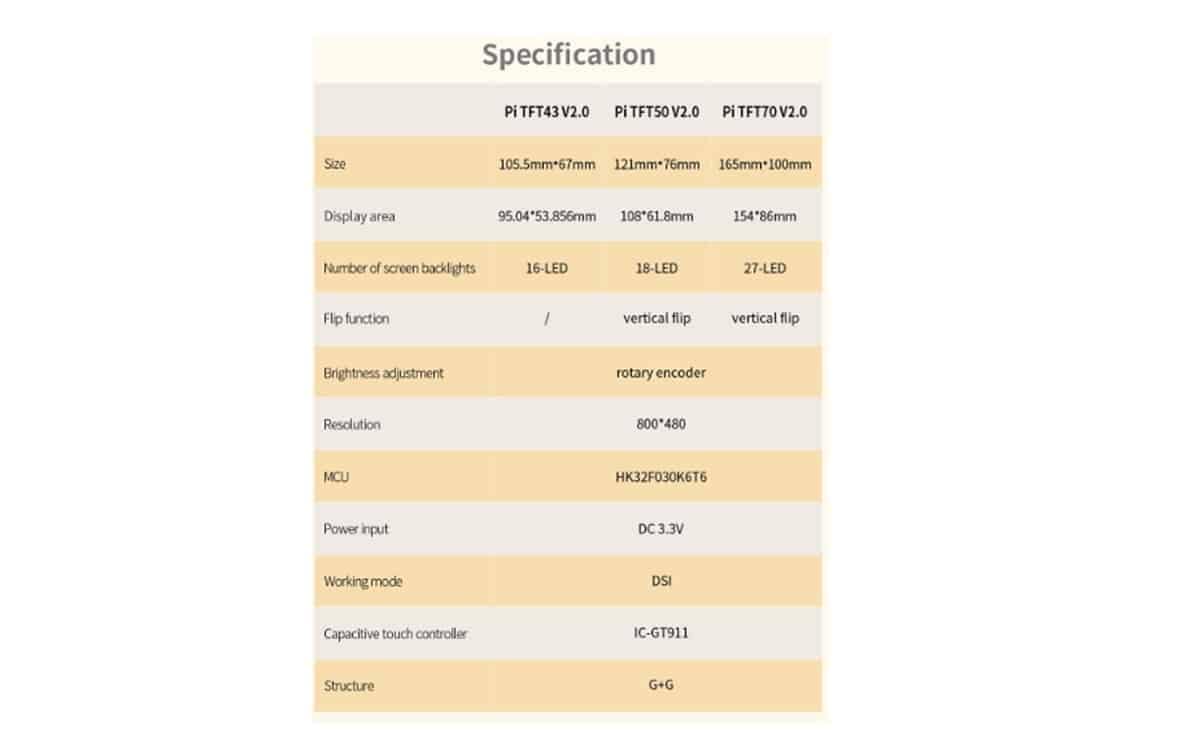

Specifications

• Working method: DSI
• Screen resolution: 800×480
• Touch: capacitive 5‑point touch
• Power input: DC 3.3V

Features

• DSI interface support for compatible Raspberry Pi models
• Capacitive 5‑point touch for smooth interaction
• 800×480 resolution for clear UI
• Cleaner integration via FPC/DSI cable (model dependent)
• Mounting-friendly design for neat Raspberry Pi assembly

BIGTREETECH PI TFT43 (3-inch)

• Display Size: 3 inch
• Resolution: 800×480
• Display Area: 95.04 × 53.86 mm
• Touch: Capacitive, 5-point touch
• Interface: Raspberry Pi DSI
• Ease of Use: Backlight adjustable via rotary encoder (as stated); connect via FPC cable to DSI
• Design: Onboard studs/positioning posts to help fix the Raspberry Pi for stronger integrity

BIGTREETECH PI TFT50 V2.1 (5-inch)

• Display Size: 5 inch
• Resolution: 800×480
• Display Area: 108 × 64.8 mm
• Touch: Capacitive, 5-point touch
• Interface: Raspberry Pi DSI
• Compatibility (as provided): Pi 4 Model B, Pi 3 Model A+/B+/B, Pi 2 Model B, Pi 1 Model B+/A+
• Easy Installation: Back hole design for direct Raspberry Pi mounting
• Power: Uses Raspberry Pi power supply design (no external power supply, as stated)

BIGTREETECH PI TFT70 (7-inch)

• Display Size: 7 inch
• Resolution: 800×480
• Display Area: 165 × 100 mm
• Touch: Capacitive, 5-point touch
• Interface: Raspberry Pi DSI
• Ease of Use: Backlight adjustable via rotary encoder (as stated); connect via FPC cable to DSI
• Design: Onboard studs/positioning posts for Raspberry Pi fixing and better integrity

Applications

• Raspberry Pi touchscreen projects and embedded UI builds
• DIY control panels and dashboards
• Touch UI for automation and maker projects
• Suitable for setups needing DSI capacitive touch display integration

Attention / Handling Notes

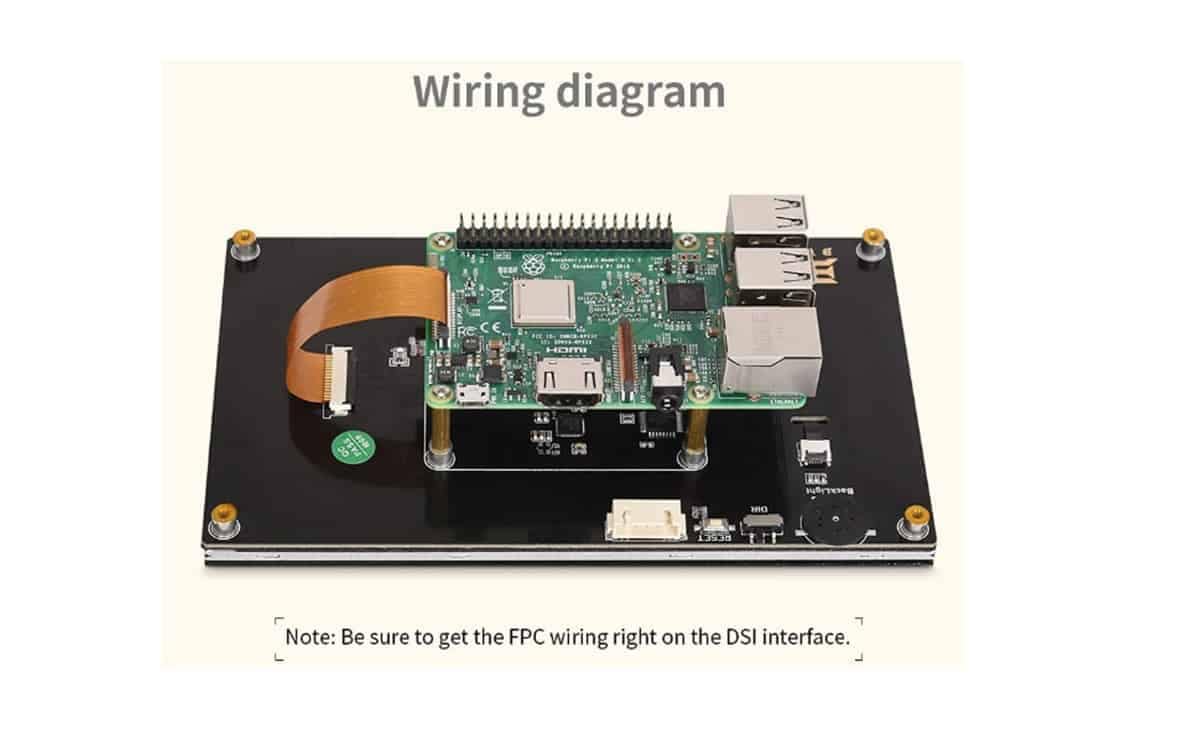

• Ensure the DSI cable orientation is correct (do not reverse sequence).
• Handle the screen gently to avoid damage.
• When adjusting backlight via rotary encoder, do not force it beyond the end-stop (to prevent damage).
• Not compatible with Raspberry Pi Zero (v0) as stated.

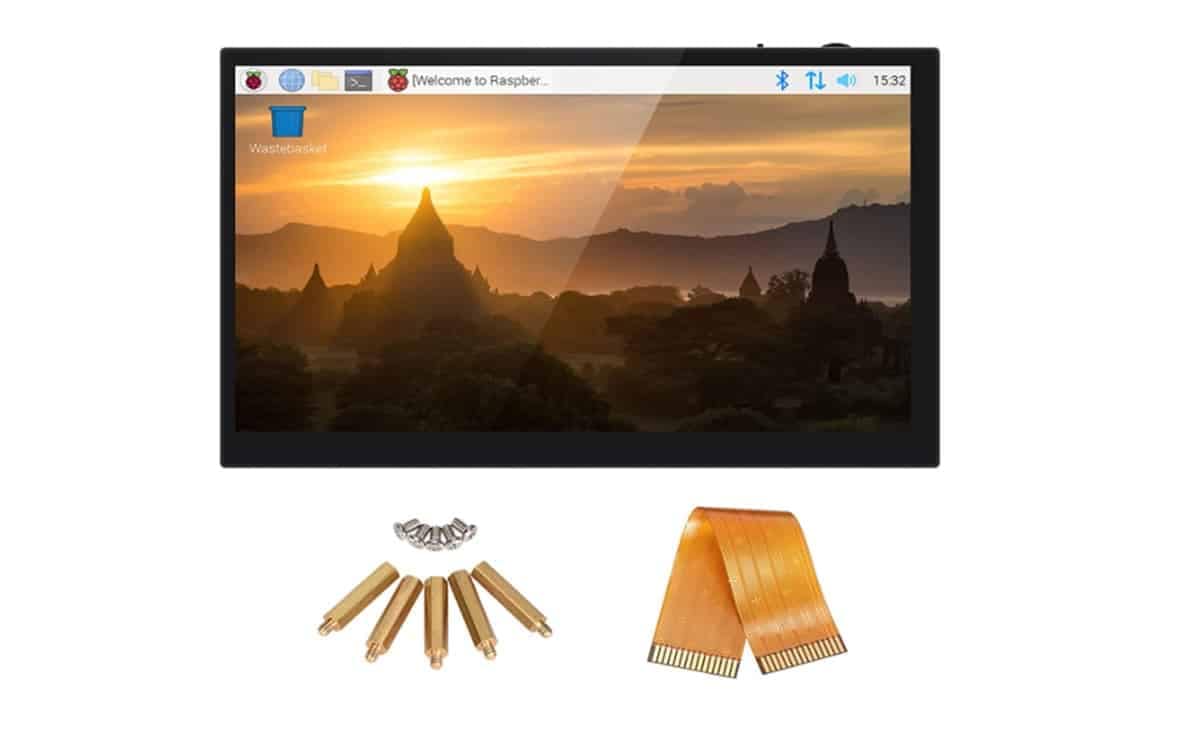

Package Include

• 1 piece of Bigtreetech PI TFT43 / bigtreetech pi tft50 / bigtreetech pi tft70.
