Bigtreetech EBB SB2209 CAN (RP2040) V1.0 For Voron StealthBurner.

• BIGTREETECH EBB SB2209 CAN (RP2040) V1.0, a dedicated CAN bus toolhead board designed for the Voron StealthBurner ecosystem and Klipper CANBUS setups.
• Using a high-performance RP2040 32‑bit MCU and a built-in TMC2209 stepper driver, this toolboard enables stable, high-speed communication over longer cable runs—helping reduce wiring clutter and improving toolhead connectivity for demanding, high-speed printing.
• The EBB SB2209 CAN is designed for clean installation with onboard headers and organized spacing (no soldering required for typical installs), making it ideal for StealthBurner upgrades, CAN toolhead conversions, and compact printer builds.
• It supports consistent performance in harsh toolhead environments while keeping your printer wiring clean and serviceable.

Features

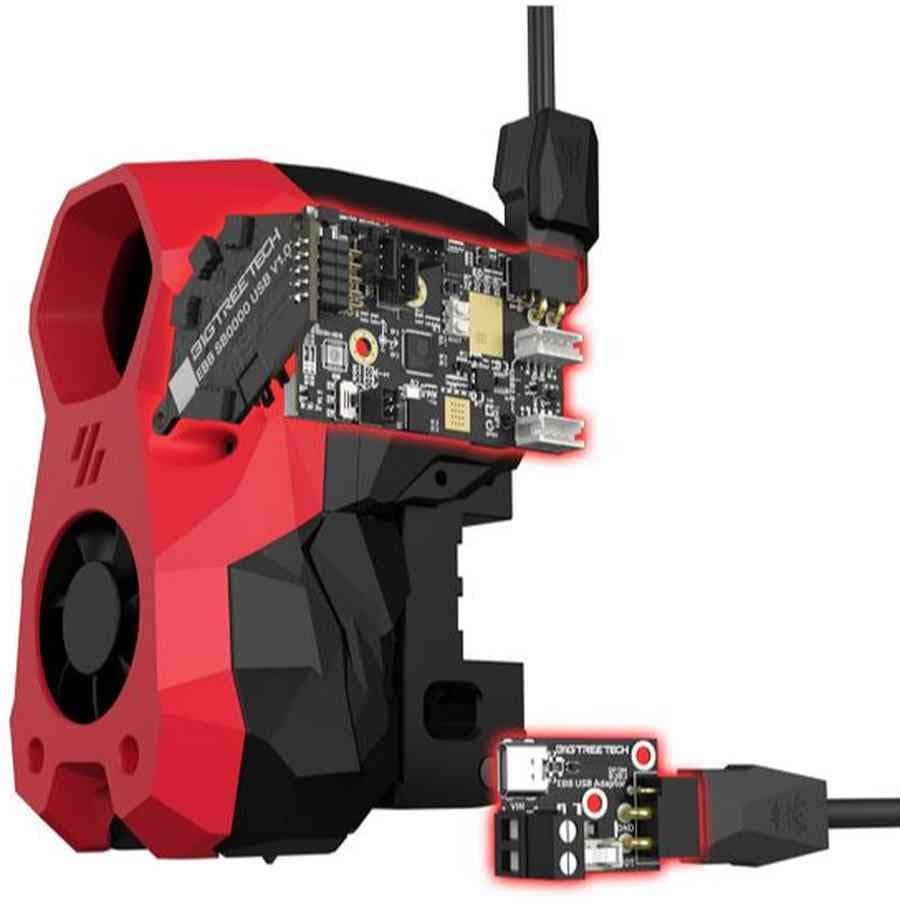

• Voron StealthBurner CAN toolhead board for cleaner wiring and easier maintenance
• RP2040 32-bit MCU for stable Klipper toolhead control
• Built-in TMC2209 stepper driver (SB2209 variant)
• Reliable CANBUS communication for higher data rates and longer-distance runs
• Drop-in style install with onboard headers (typical no-solder assembly)
• Ideal for Klipper CAN upgrades, high-speed toolhead setups, and compact builds

Variant

• SB2209 CAN (RP2040): includes TMC2209 driver
• SB2240 CAN: includes TMC2240 driver (advanced diagnostics/protection)

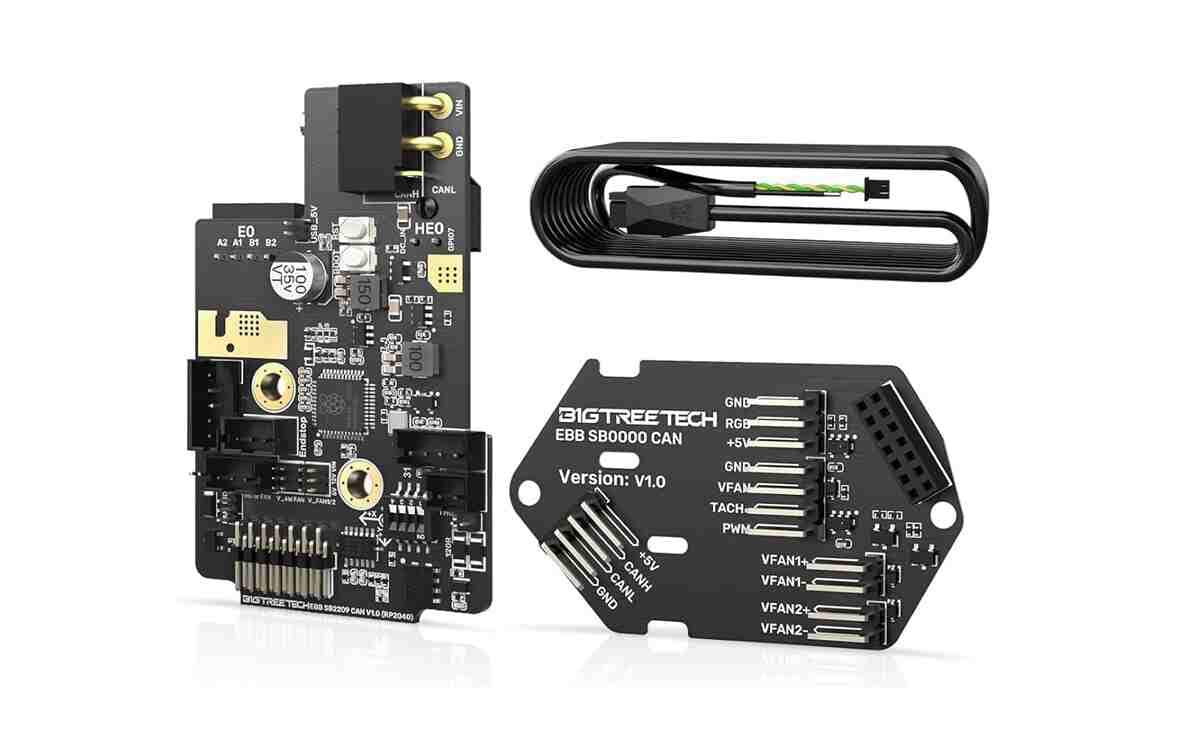

Package Includes

• 1 × EBB SB2209 CAN (RP2040)
• 1 × EBB SB0000 CAN
• 1 × 3m CAN bus cable
• 1 × Heat sink
• 1 × DIY crimp terminal set
• 1 × Jumper cap set
• 2 × Zip ties
• 1 × Fixing screw set
• Gifts: 1 × 30PIN wire, 1 × 100K NTC B3950 thermistor
