SFU1605 Ball Screw with Nut And Machined Ends  High Precision Linear Motion Lead Screw

SFU1605 Ball Screw with Nut And Machined Ends  High Precision Linear Motion Lead Screw

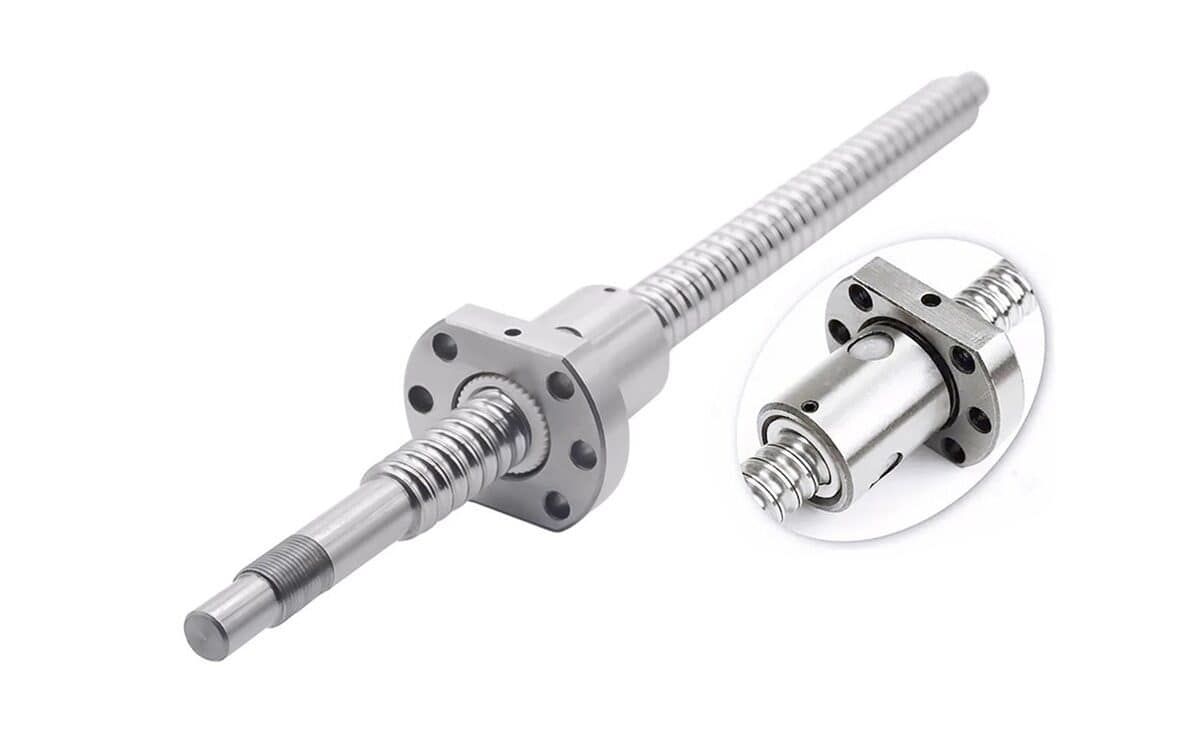

The SFU1605Ball Screw with Nut and Machined Ends is a high-precision linear motion component designed for applications requiring smooth, accurate, and efficient transmission.

• SFU1605 ball screw with nut and machined ends, engineered for smooth travel, accurate positioning, and high mechanical efficiency.
• With a 16mm screw diameter and 5mm lead, this rolled ball screw balances speed and torque while supporting excellent repeatability for CNC axes, linear actuators, and precision positioning platforms.
• The screw comes pre-installed with a matched SFU1605 ball nut to help reduce backlash and deliver consistent linear movement.
• Compared with traditional lead screws, the recirculating ball mechanism significantly reduces friction, helping lower power consumption and heat while improving motion smoothness and service life..
• Light oil is pre-applied for initial protection; periodic lubrication is recommended for long-term performance.

Product Specifications

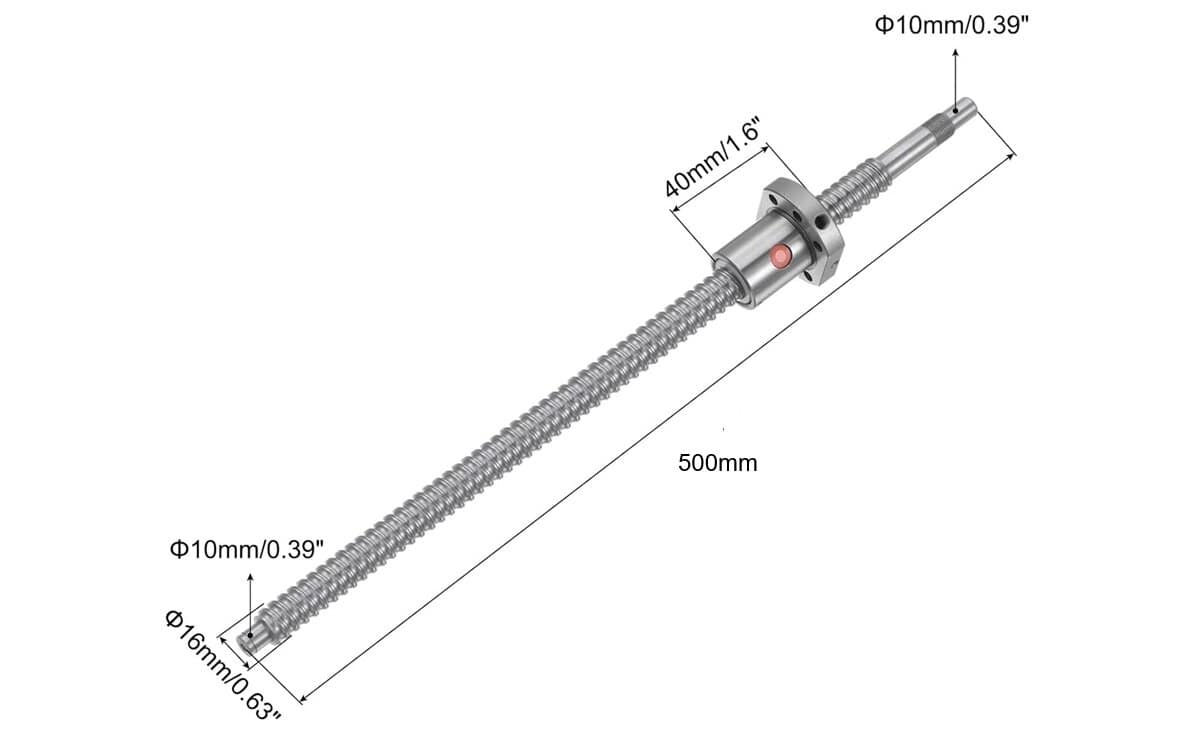

• Model: SFU1605 ball screw
• Screw diameter: 16mm
• Lead/Pitch: 5mm
• Length options: 500mm / 1000mm (custom lengths commonly 300–1500mm)
• Thread type: Rolled ball screw
• Material: High-carbon bearing steel

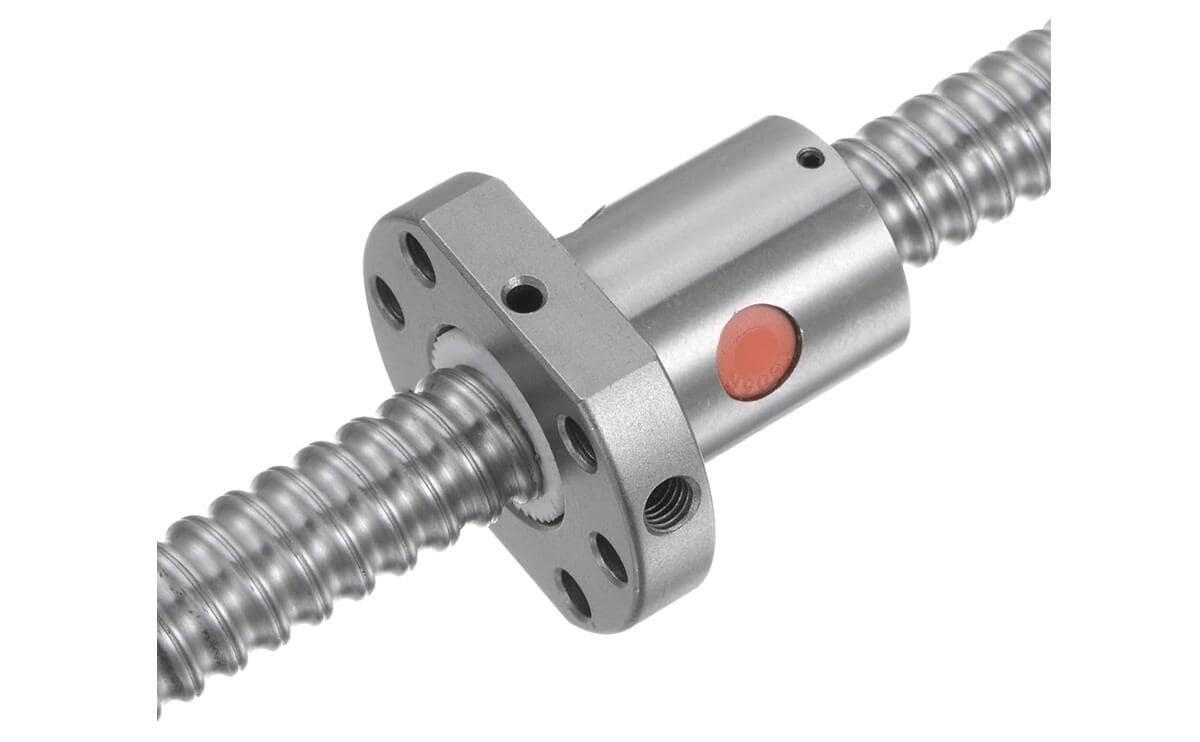

• Nut type: SFU1605 ball nut
• Nut preload: Zero-backlash (optional preload available)
• End machining: C7 precision-machined ends
• Accuracy grade: C7 (±0.05mm/300mm)
• Hardness: HRC58–62
• Lubrication: Light oil pre-applied
• Mounting compatibility: BK/BF12, FK/FF12 bearing blocks

Applications

• CNC milling and routing machines
• 3D printers and delta robots
• Linear actuators and automation slides
• Laser cutting/engraving machines
• Precision XY motion platforms
• Robotics and pick-and-place machines
• Injection molding machines

Package Include

• 1 piece of SFU1605 ball screw with ball screw nut in Length 500mm/1000mm.
