2020 Gantry plate aluminium/mildsteel for 2020 profile

2020 Gantry plate aluminium/mildsteel for 2020 profile:

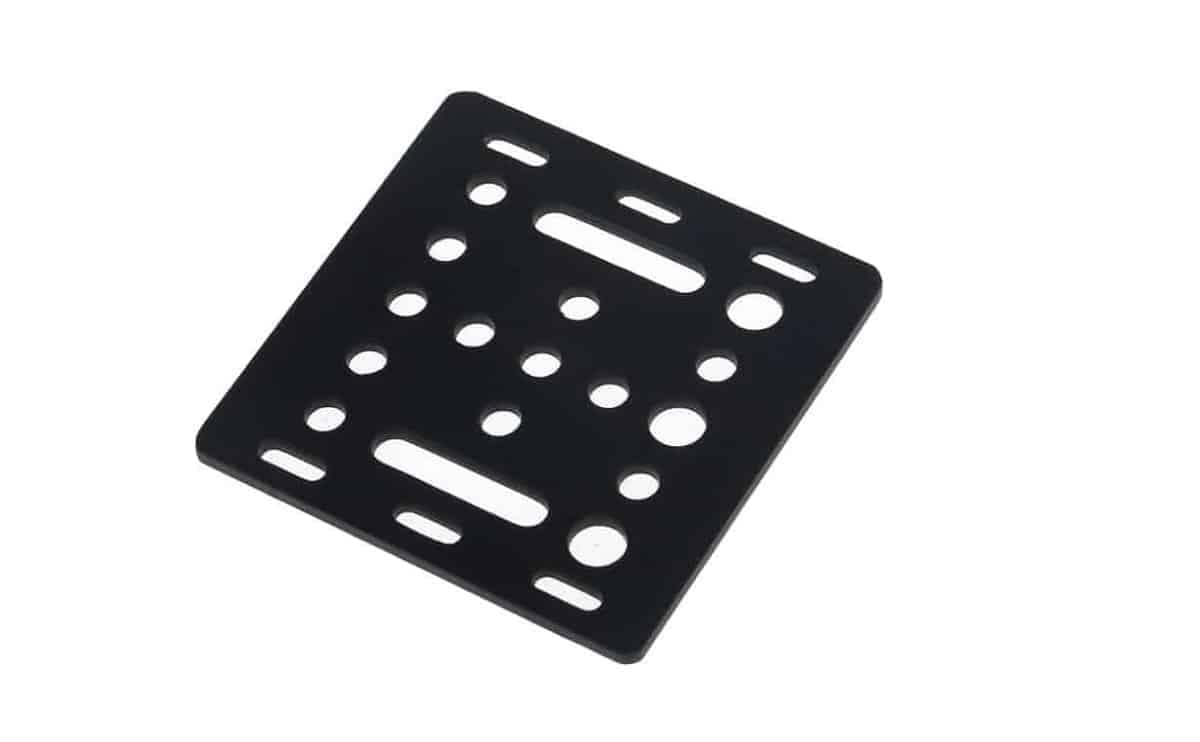

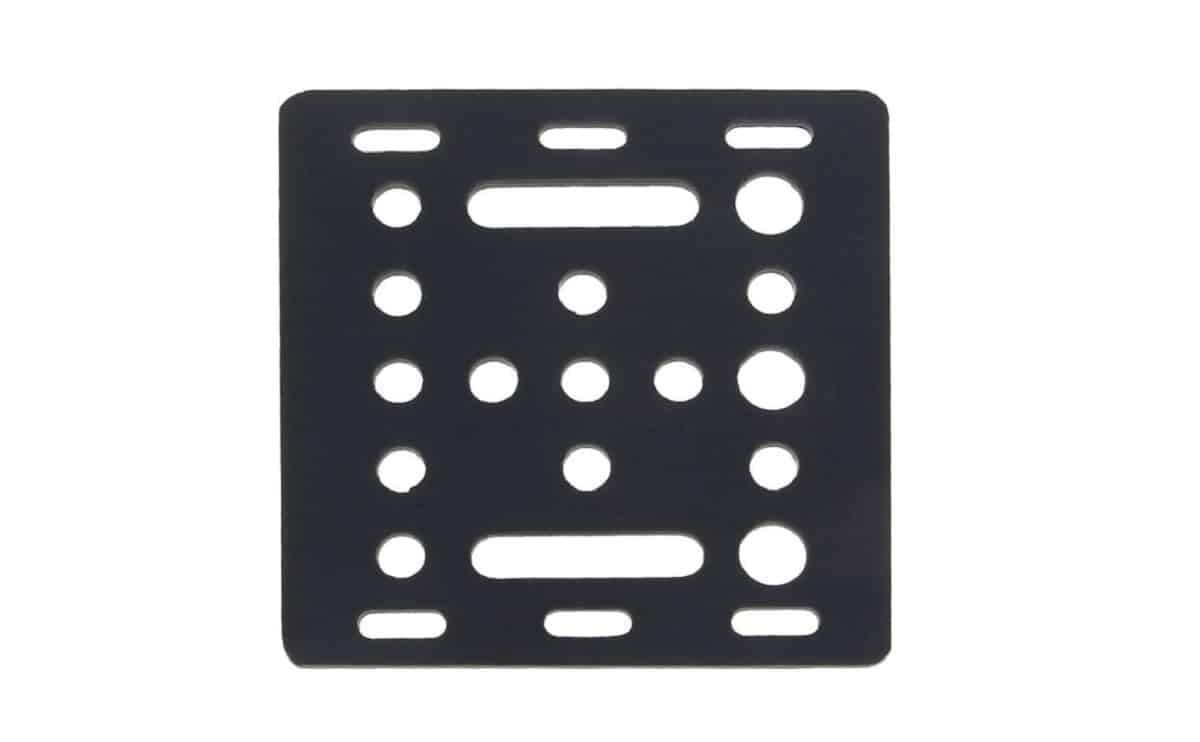

• 2020 Gantry Plate is a strong mounting and motion-support plate built for 2020 profile systems.
• Available in aluminium or mild steel to match weight, stiffness, and load needs.
• The pre-drilled mounting holes simplify installation for motors, wheels, brackets, and accessories.
• A smooth, corrosion-resistant finish supports stable mounting and consistent movement in gantry assemblies.

Specifications

• Product: 2020 Gantry Plate
• Compatible system: 2020 profile

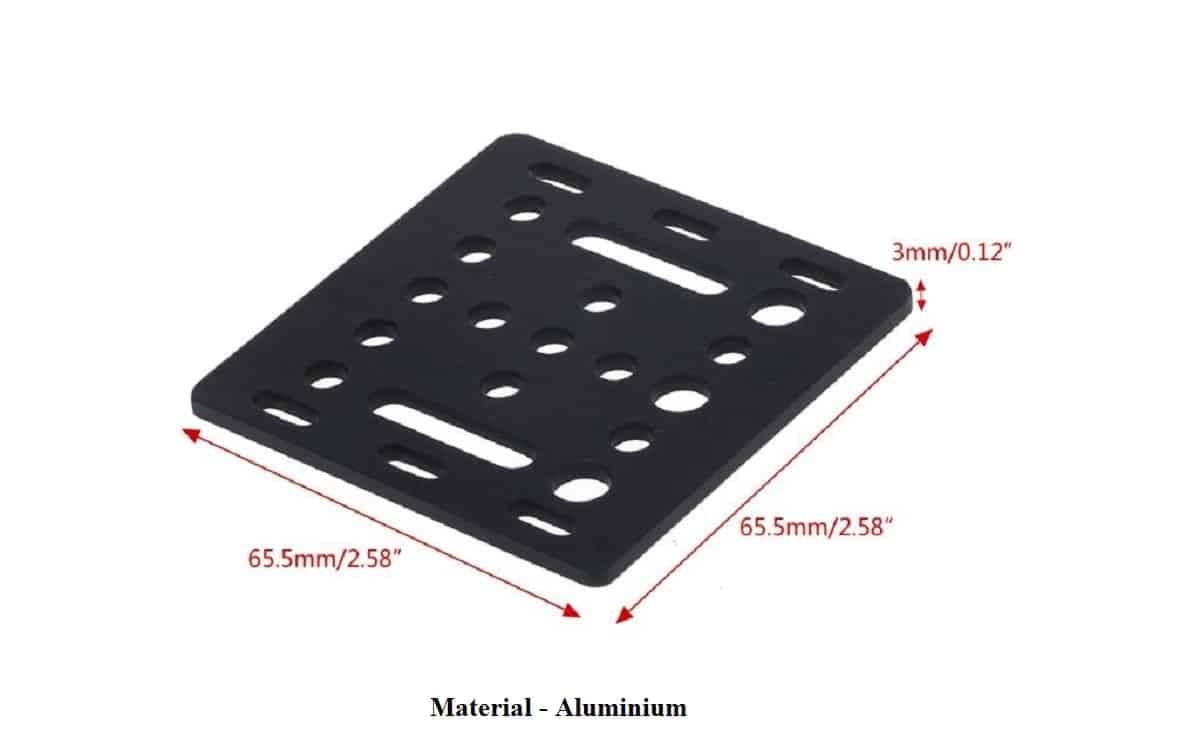

• Material options: Aluminium / Mild steel
• Thickness: varies by material option

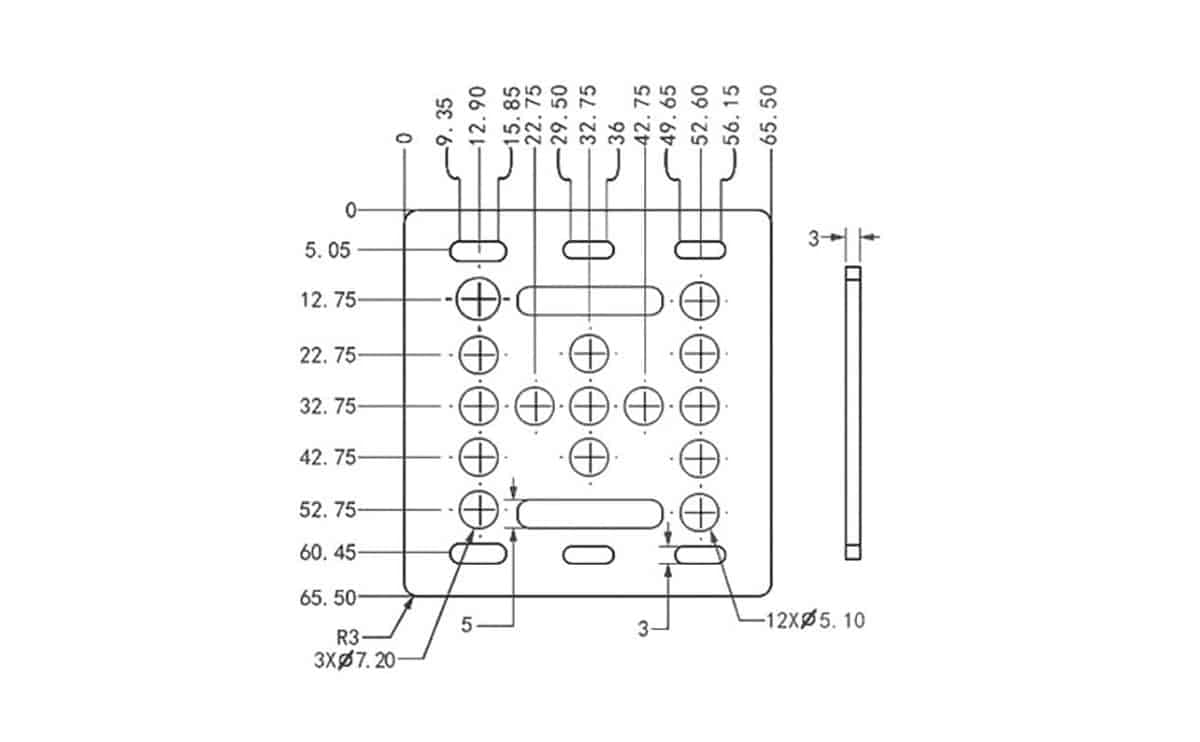

• Mounting holes: pre-drilled for easy installation
• Finish: smooth, corrosion-resistant surface

Features

• High strength platform: suitable for gantry builds and structural mounting on 2020 profile frames.
• Easy integration: pre-drilled holes reduce fabrication and alignment effort.
• Material flexibility: choose aluminium for lighter builds or mild steel for higher rigidity.
• Smooth surface support: helps reduce friction points and improves overall assembly performance.

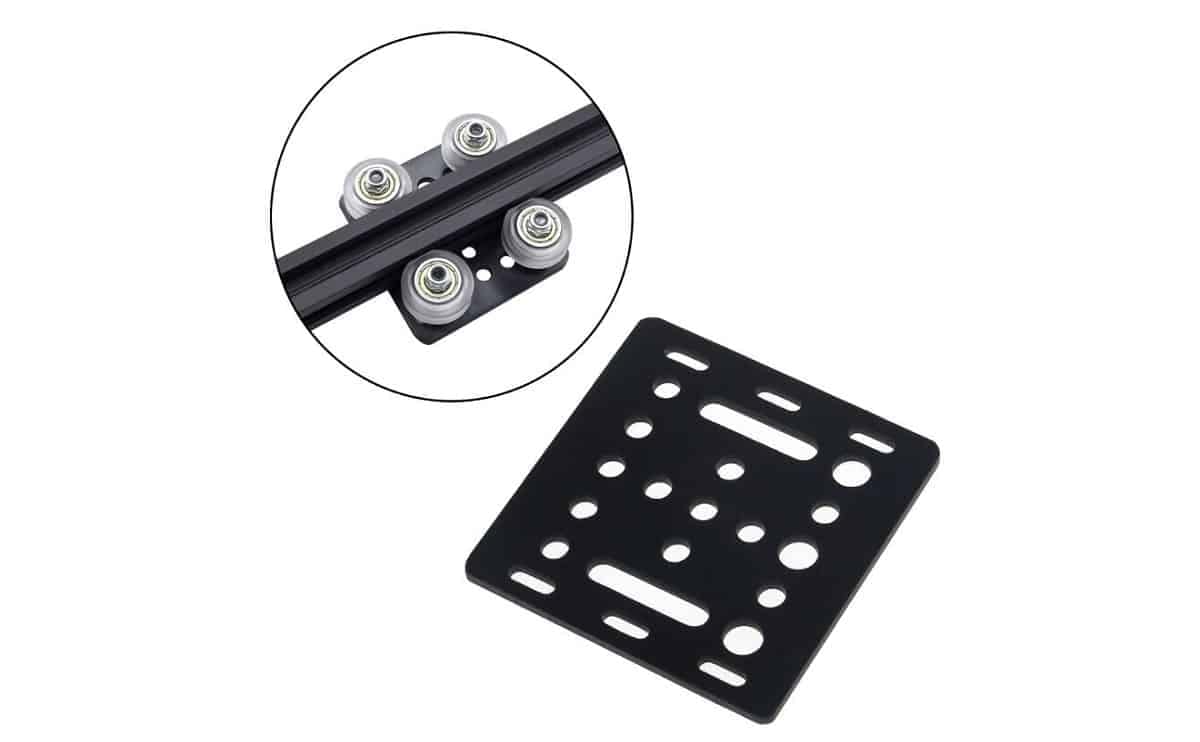

• Versatile mounting: supports motors, brackets, rollers/wheels, plates, and tool heads.

Applications

• 3D printer frame and gantry assemblies using 2020 profile
• Motor mount plates and moving carriage systems
• CNC machines and linear motion builds
• Robotics and automation structures
• Industrial machinery frames and DIY projects

Usage / Installation

• Align the 2020 gantry plate to the 2020 profile position required for the gantry or motor mount.
• Bolt the plate using the pre-drilled mounting holes with suitable fasteners and profile nuts.
• Ensure the plate sits flat and square before final tightening for best motion alignment.
• Mount required components (motor, wheels, brackets) and verify smooth travel across the axis.

Package Include:

• 1 piece of 2020 gantry plate.
