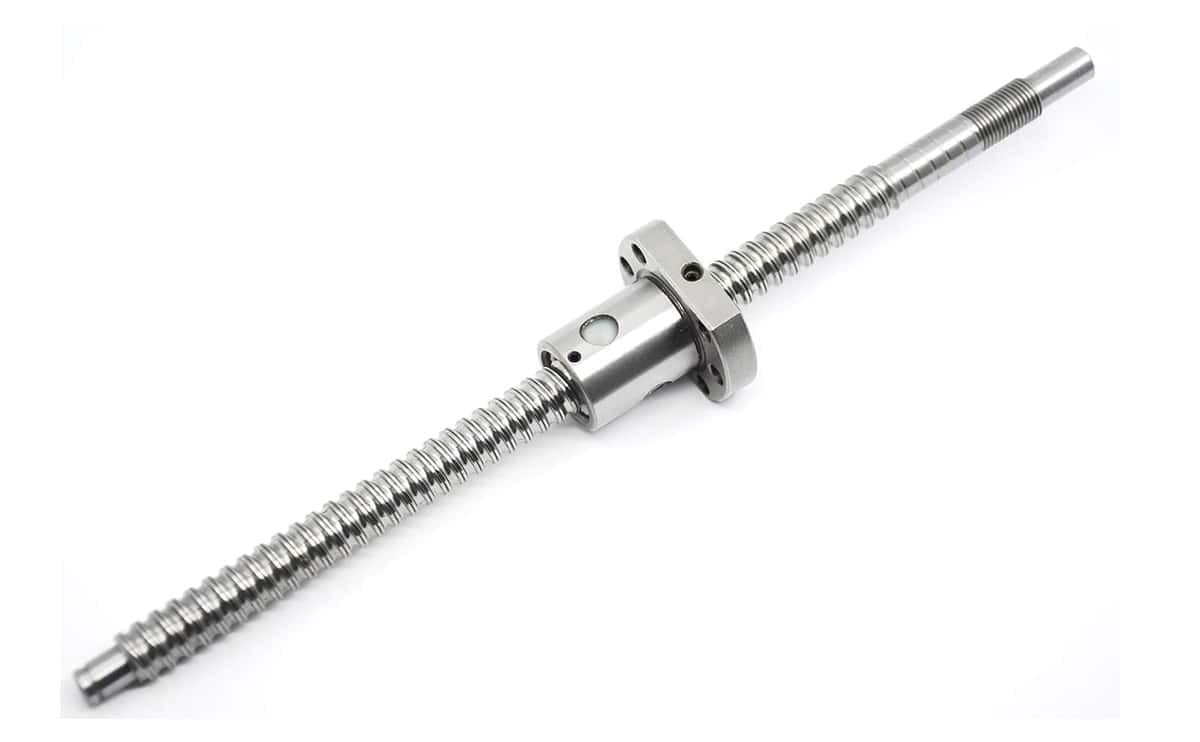

12mm Ball Screw Rod SFU1204 length 500mm with Single Ball Nut with end machining

The 12mm ball screw SFU1204 is a high-quality, precision-engineered component designed for various applications in CNC machines

• SFU1204 ballscrew engineered for smooth, accurate linear travel. This 12mm ball screw rod features a 4mm lead (pitch) that balances speed and precision, making it a practical choice for CNC positioning, printer bed/extruder movement, and automation slides.
• Manufactured from GCr15 bearing steel with C7 accuracy grade and a rolled thread process, the screw is built for stable performance and long service life.
• The included single ball nut helps reduce friction and improve efficiency compared to lead screws, while the end machining supports faster integration into supported bearing blocks, couplers, and motor mounts.

Specifications

• Model: SFU1204-NUW
• Screw diameter: 12mm (0.472″)
• Lead/Pitch: 4mm (0.157″)
• Overall length: 500mm (19.685″)
• Material: GCr15 steel
• Accuracy grade: C7
• Manufacturing process: Rolled thread
• Nut: Single ball nut (included)
• Ends: Machined ends (included)
• Also available SFU1204 nut length

Applications of SFU1204 Ball Screw

• CNC machines: milling, engraving, drilling, cutting—accurate tool positioning
• 3D printers: precise bed/extruder axis movement
• Robotics & automation: actuators, gantries, pick-and-place systems
• Industrial machinery: packaging, assembly lines, positioning stages
• Medical equipment: precise positioning mechanisms
• Hydraulic/pneumatic systems: smooth motion control components

features

• High precision motion: C7 grade for consistent positioning and repeatability
• Smooth & quiet operation: ball screw design minimizes friction and noise
• Efficient load transmission: improved mechanical efficiency vs. standard threaded rods
• Durable build: GCr15 steel for strength and wear resistance
• Compact with strong load capability: suitable for demanding CNC/automation tasks
• Easy integration: standardized SFU1204 sizing + end machining
• Reduced backlash: ball nut design supports tighter, more accurate motion

Package Include

• 1 piece of Ball Screw SFU1204 500mm length with ballscrew nut (with end machining).
